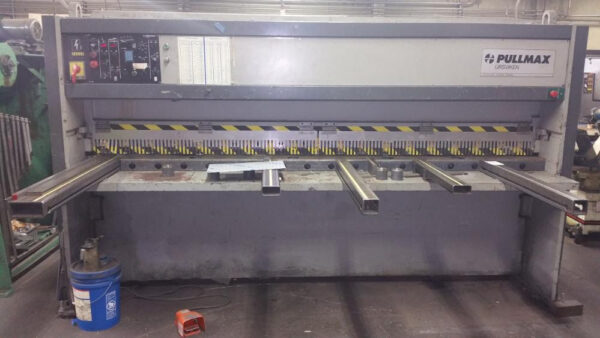

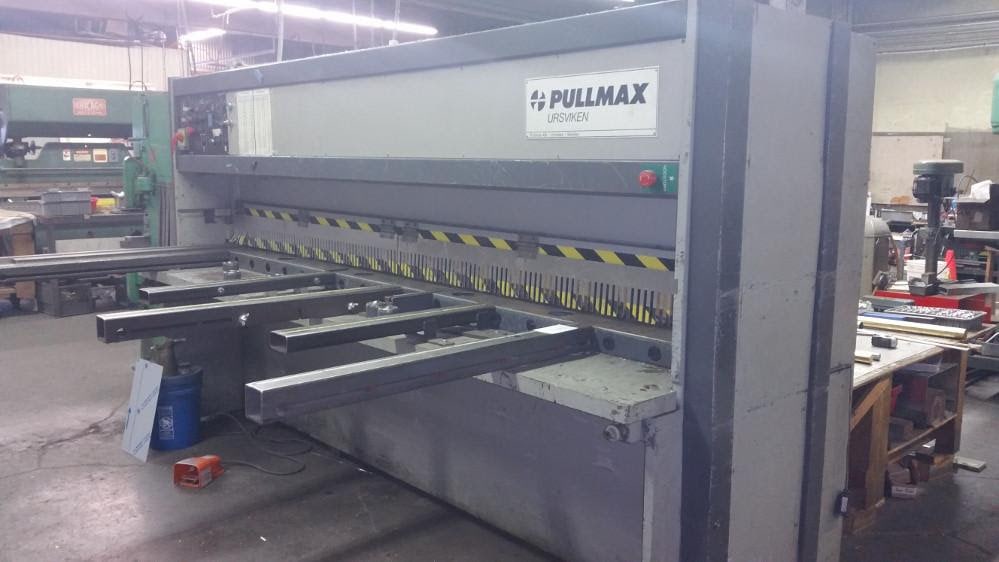

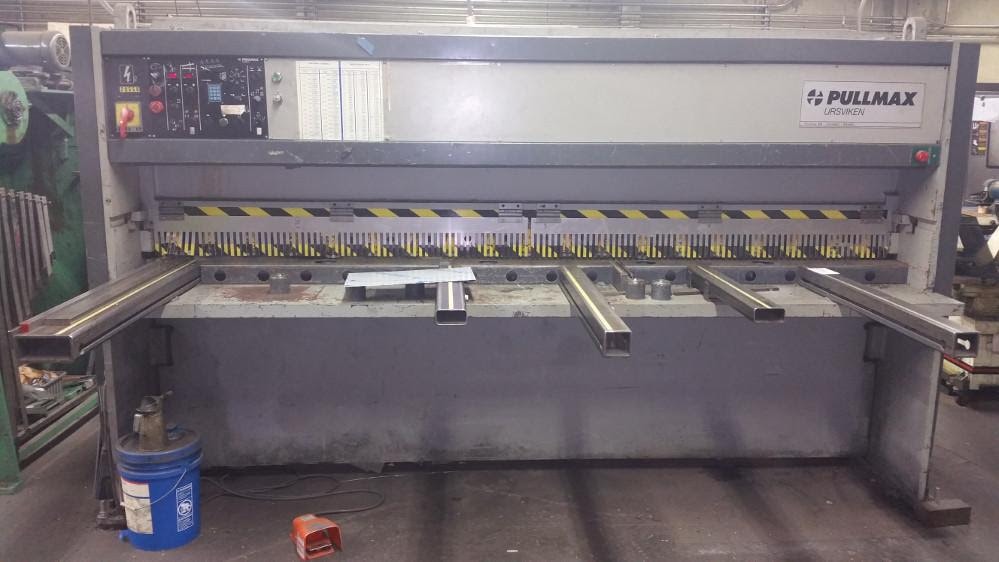

1/4″ x 10′ Pullmax E 230, 1984 – Squaring Arm, Support Arms, Front-Operated Back Gauge, Safety Guard

Capacity: 10′ x 1/4″ @ Nominal Rake
Rake Angle: 3/4″
Strokes per Minute (SPM):
18 @ Nominal Rake
40 @ Minimum Rake
Max Working Pressure: 31.3 MPa
Max Load: 7 MM 50 KP / MM2

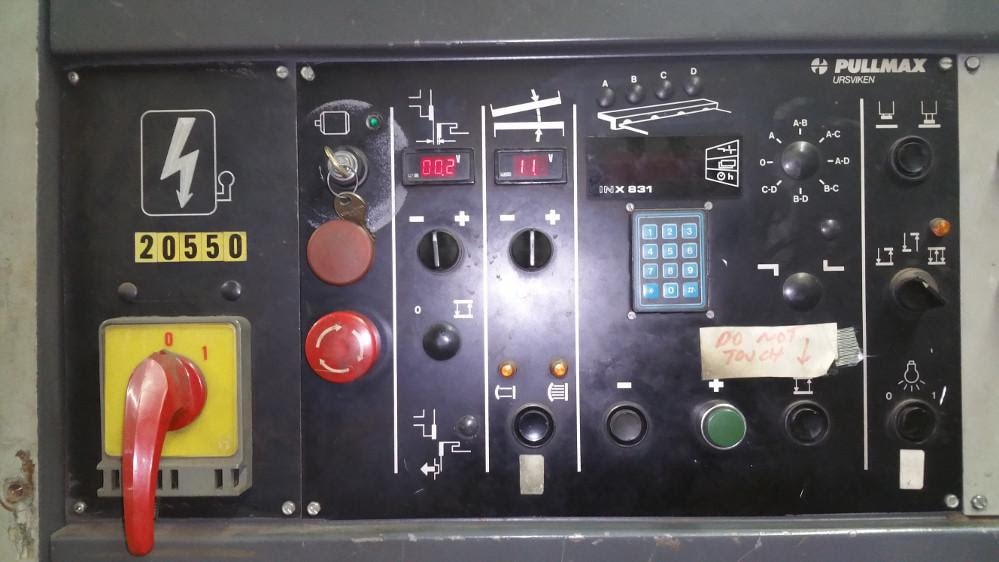

Programmable

Equipped With:
OSHA Mandated Guards
Front-Operated Back Gauge

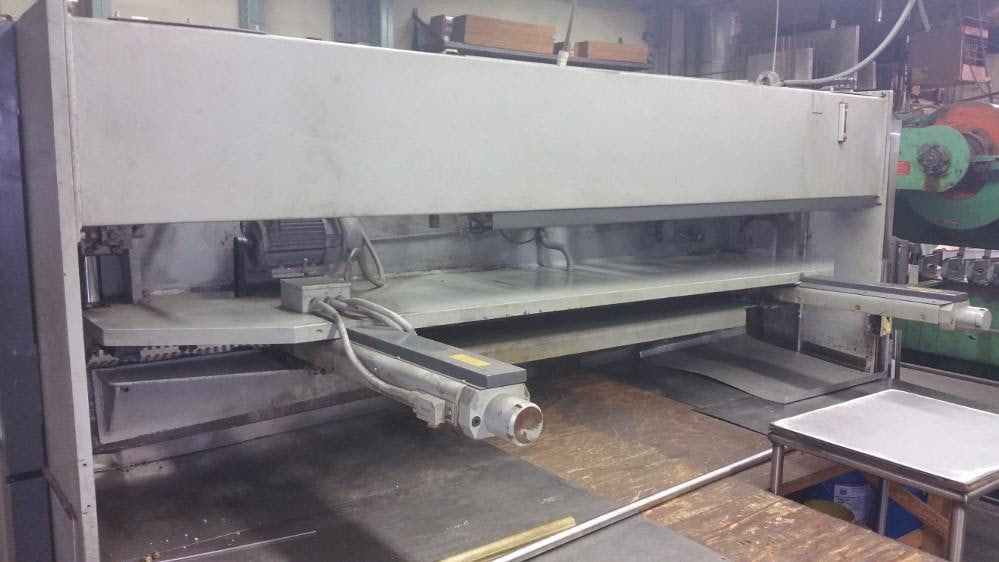

4′ Squaring Arm, Support Arms

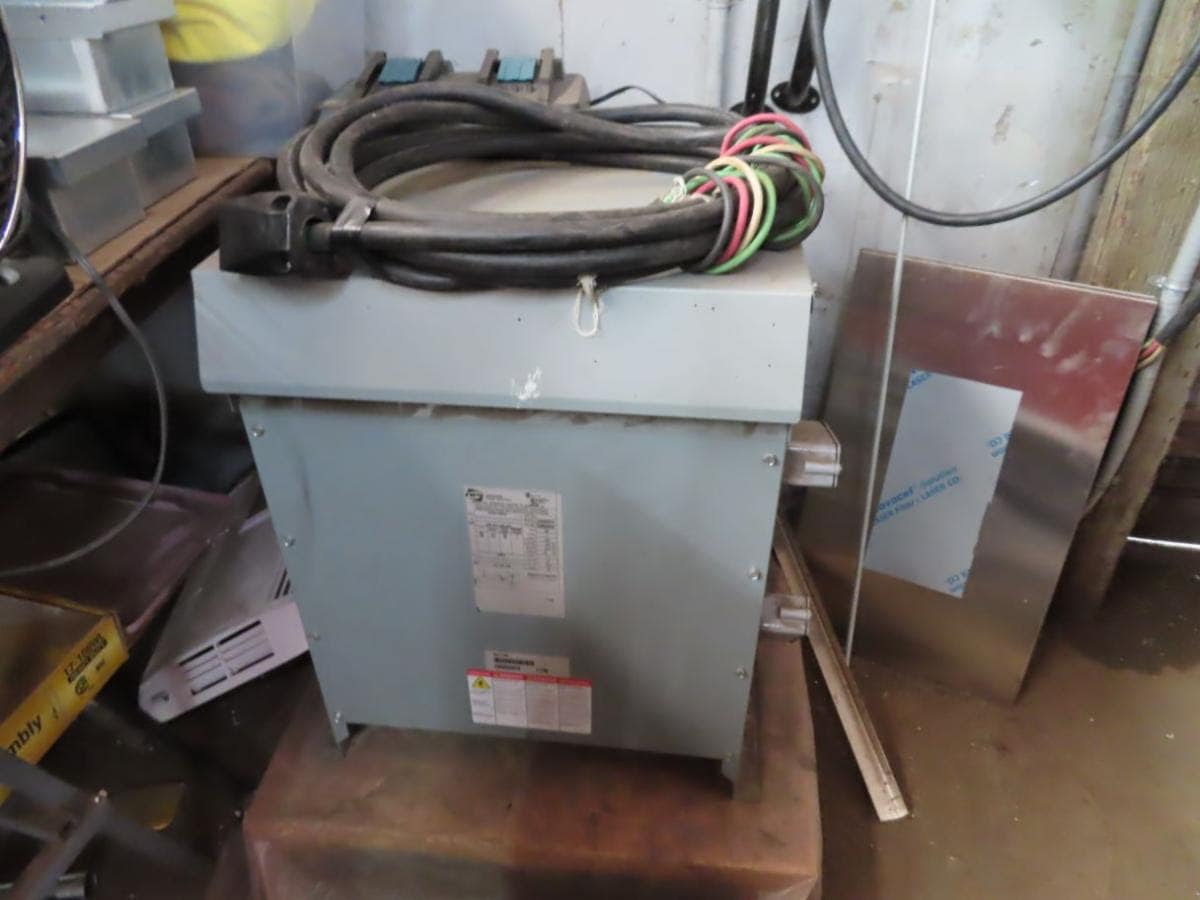

Hammond Power Solutions Transformer

Electrics: 230 Volt / 3 Phase / 60 Cycle
Main Motor: 15 HP / 1740 RPM

Overall Equipment Dimensions (approx.): 11.5′ x 6.5′ x 8′
Overall Equipment Weight (approx.): 15,200 lbs.
