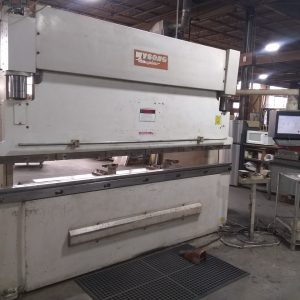

242 Ton x 12′, Wysong “NEW” MB 240-145 CNC Hydraulic Press Brake, 2024 – 4 Axis, Tooling, MFG Warranty
$169,500.00
Machine Type: Hydraulic Press Brakes
Make: Wysong
Model: MB240-145
Year: 2024
Capacity: 242 Ton x 145‘
Machine Location: Upon Request
Stock #: 776001
Tonnage: 242
Bending Length: 145″
Distance between Columns: 126″
Stroke: 10″
Daylight: 18″
Throat: 16″
Ram Repeatability: .0004”
Back Gauge Accuracy: .001”
Approach Speed: 425 IPM
Return Speed: 330 IPM
Bending Speed: 39 IPM
Table Height: 38″
Machine Length: 181″
Machine Depth: 96″
Machine Height: 120″
Machine Weight: 28,108 lbs
Main Motor: 24.75 HP
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
