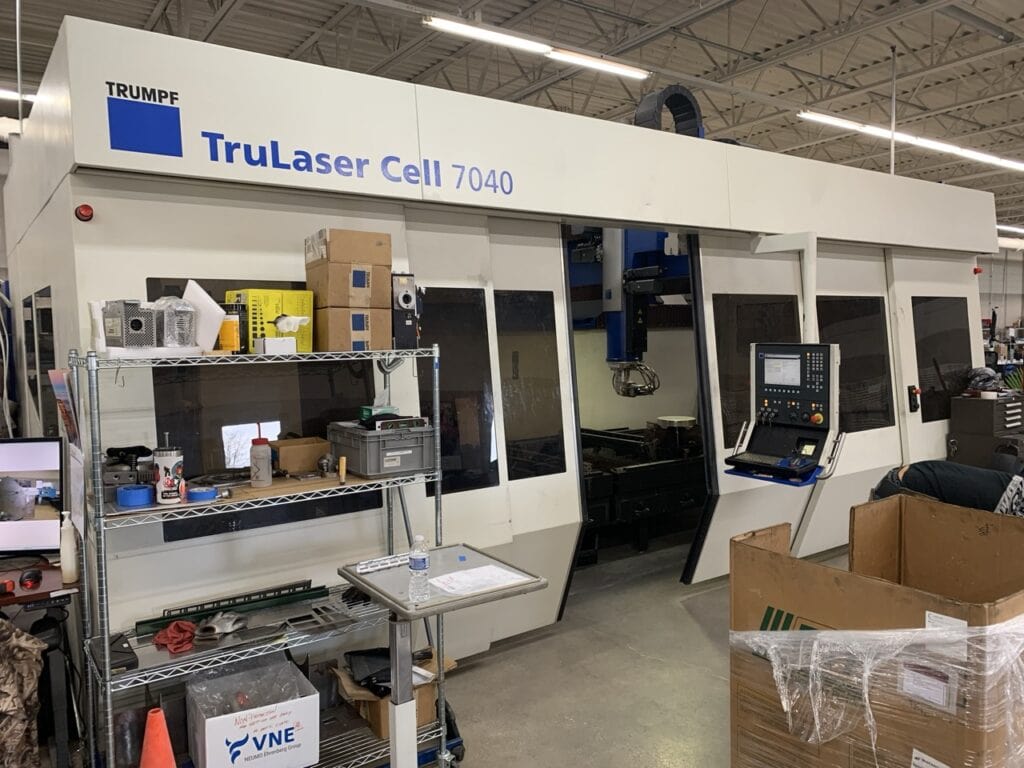

5,000 Watt 5 Axis Trumpf TruLaser Cell 7040 CO2 Laser – 6’x13′, 2009

X=4000 Mm, Y=2000 Mm, Z = 750 Mm
B = ± 120°; C = N X 360°
Co2 Laser: Truflow 2000 With Maintenance Free Radial Turbine Blower, Mirror
Telescope, Chiller, Positioning Laser Diode
Laser Power Control, Laser Cycles, Logbook Function
Beam Delivery: Water-Cooled Bending Mirrors And Focus Diameter Consistency In
The Working Range
Focusline
Processing Head Identification And Magnetic Clutch
Sinumerik 840d Control: Open Pc-Based Control System
Hanging Stationary Rotating Operator Panel
Teach Pendant – Teach Software
Network Connection Incl. Installation And Tele Service
Analog Modem For Tele Service
Electrical Configuration According To Ul508 A
Voltage Before Main Switch
Tropical Version Up To 110 F
Higher Laser Power (Price Increase Relative To Truflow 2000)
Truflow 5000
Chiller
Plate Heat Exchanger Instead Of Water/Air Chiller. Type: Klh P87/48 Tk 2.01 (Note:
Used Plate Heat Exchanger From Trumpf Application Lab)
Processes
Preparation For Laser Cutting And Welding (Weldline Basic)
Cutting Optics
Dynamic Cutting Head F = 155 Mm
Modular Processing Optic For Welding
Modular Processing Optic Package, Water Cooled Nozzle (F = 230, 280 Or 330 Mm)
Work Station – Stationary Or Manual Moveable
2 Stationary Tables (2000 X 1500 Mm2
)

Rotary Axis
Table Mounted Rotary Axis For Horizontal And Vertical Mount. Rotary Table Diameter
200 Mm
2 Base Bridges With Holes On Top For Table Mounted Rotary Axis
Dual Station Operation
Dual Station Partition Wall
