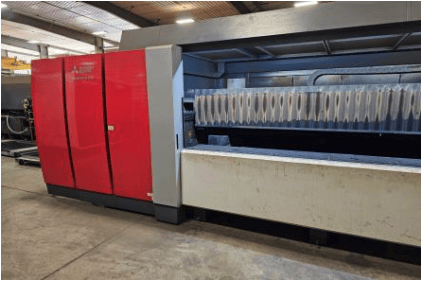

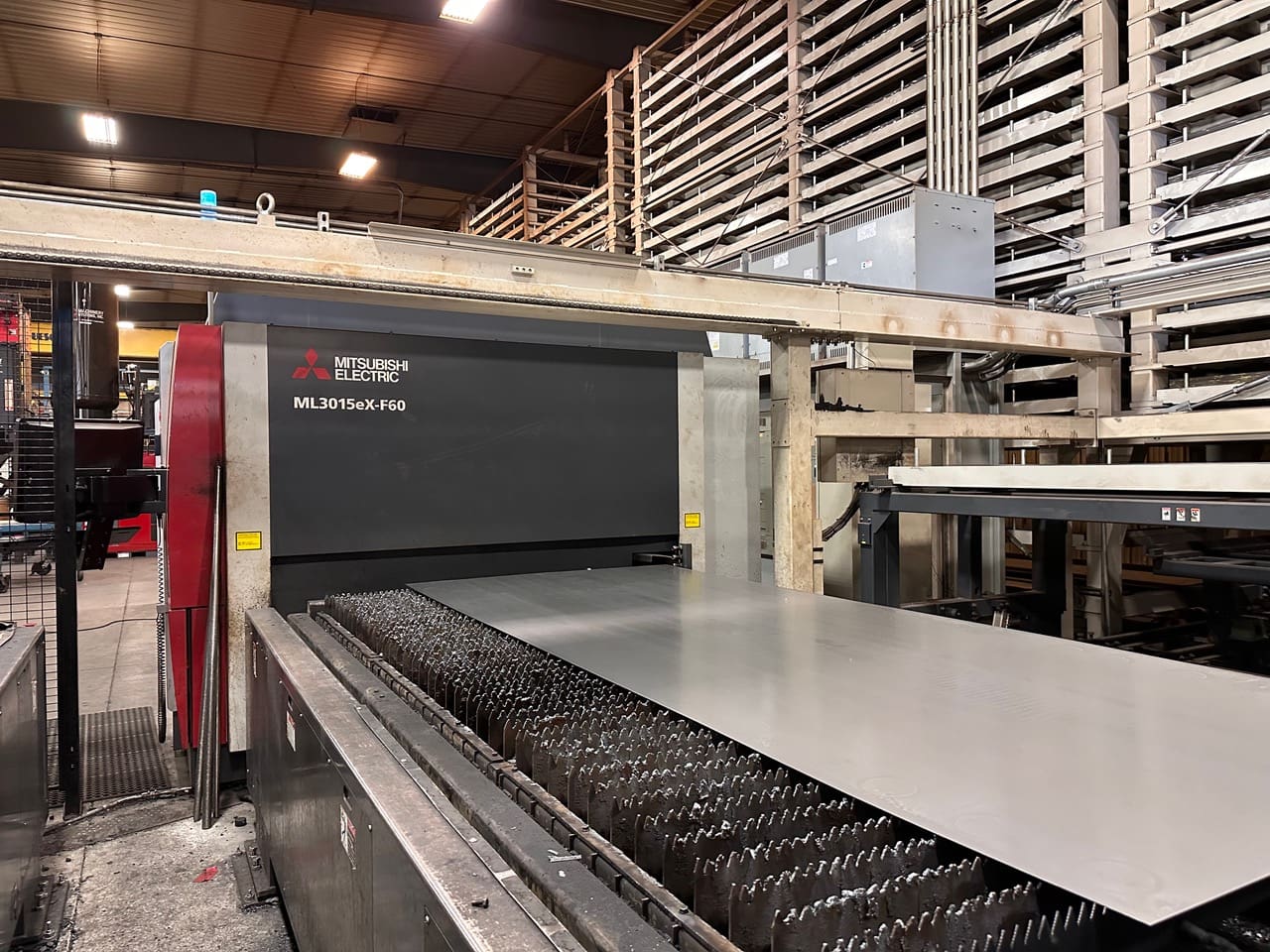

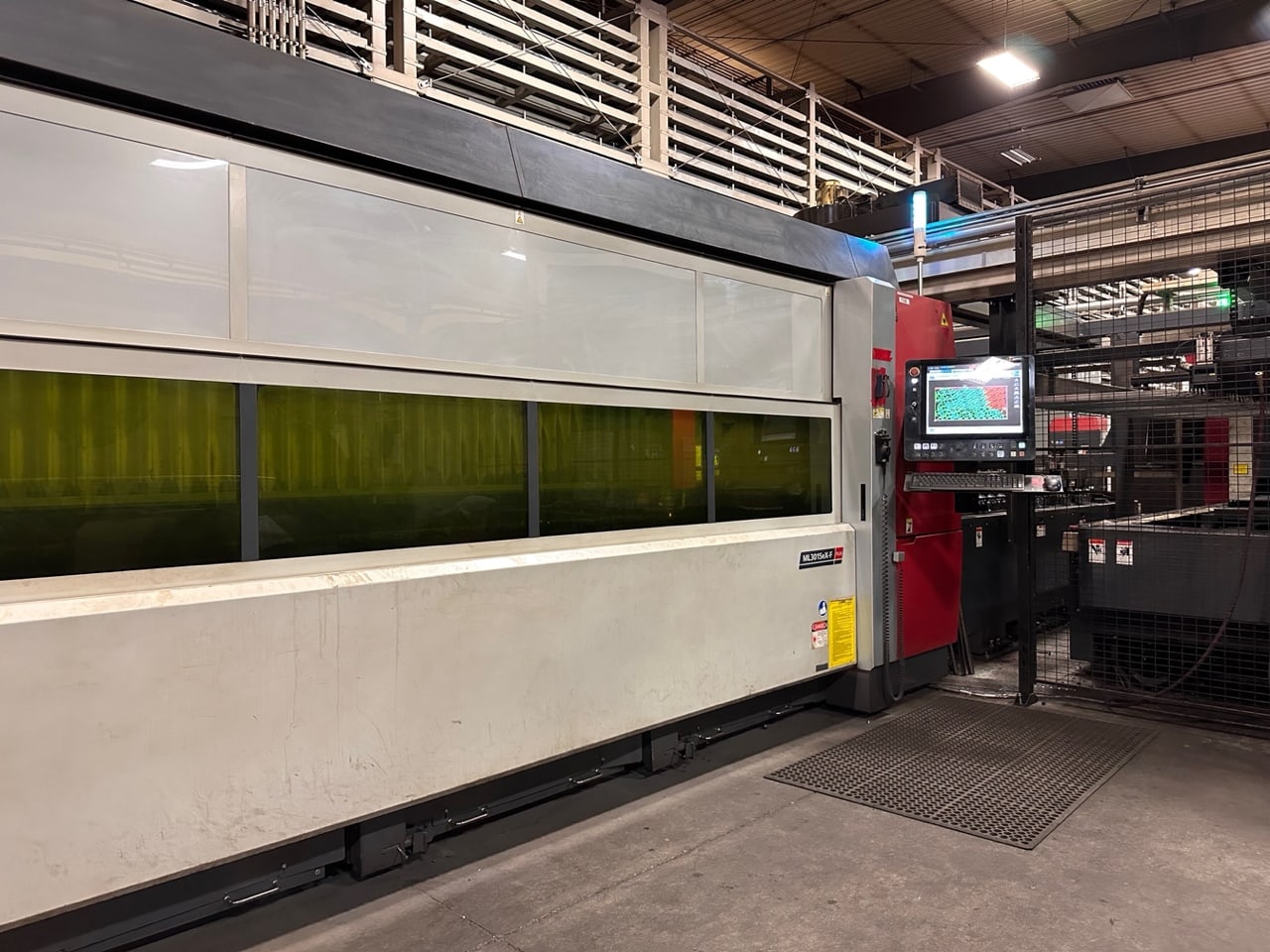

6,000 Watt Mitsubishi ML3015 EX-F60-D 6kw Fiber Laser, 2018 – 5′ x 10′ Tables
$285,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

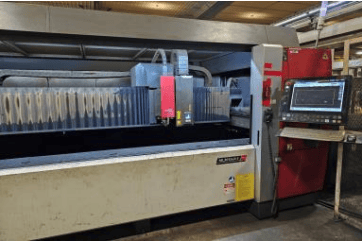

Mitsubishi M800 CNC Control
19” Mitsubishi-Electric Touch Screen
Rated Power Output 6 KW

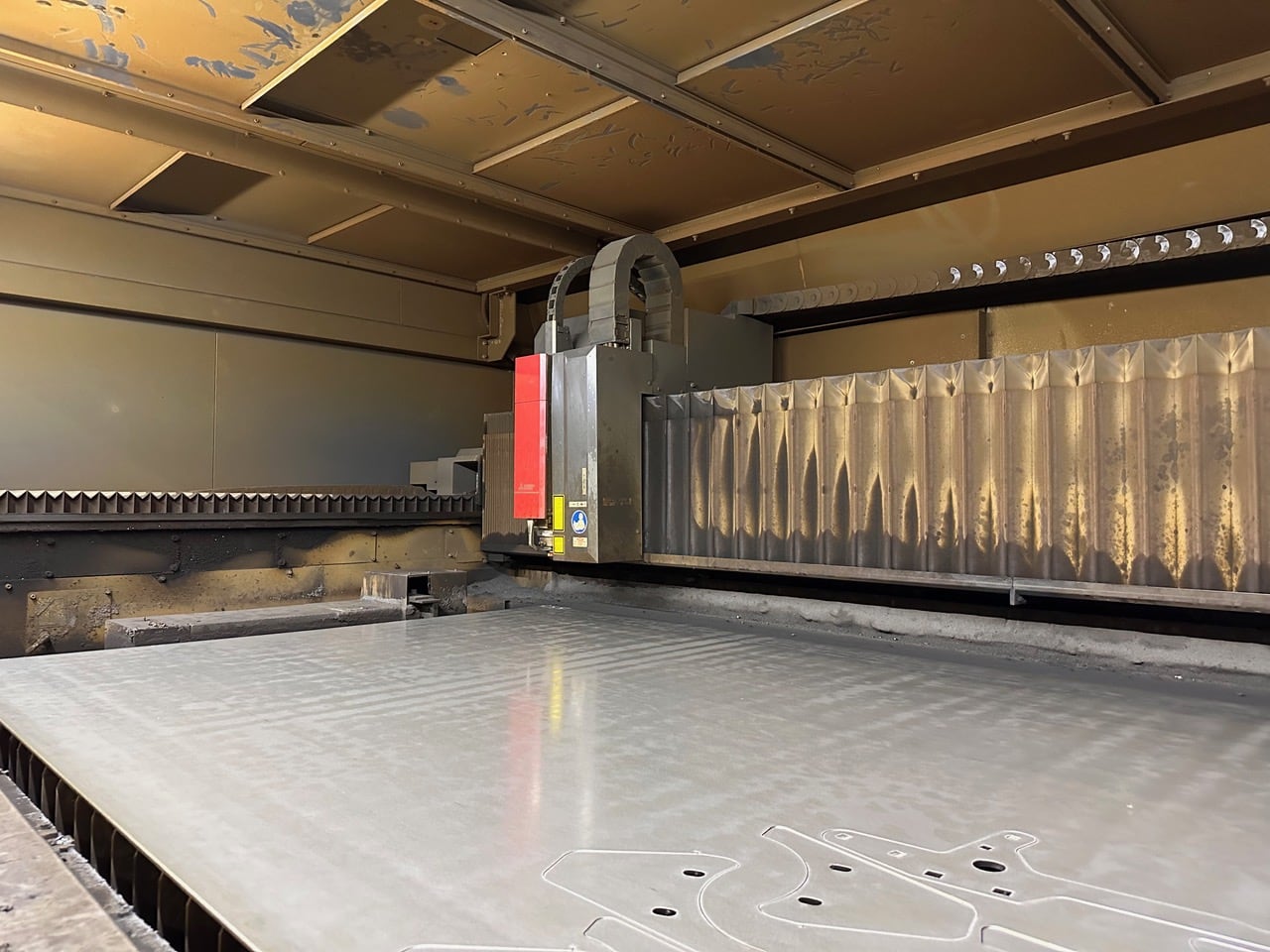

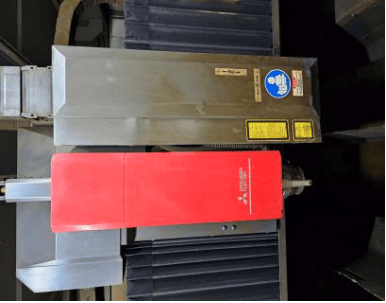

Processing Head Zoom-Head
Max.Material Thickness – 1.00″

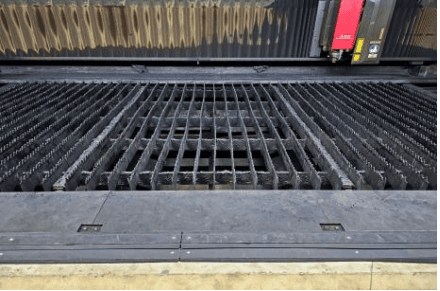

120.1” x 60” Max Workpiece
Table Pass Height 34.6”
X-axis Stroke 122”
Y-axis Stroke 61”
Z-axis Stroke 5.9”
Rapid travel speed (X,Y) 3,940 Single Axis
Rapid Travel Speed (X,Y) 5,550 Simultaneous
Max. Processing Federate – 3,937 IPM
Repeat Accuracy ± .00039″
Drive Motor Type Intelligent AC Servo

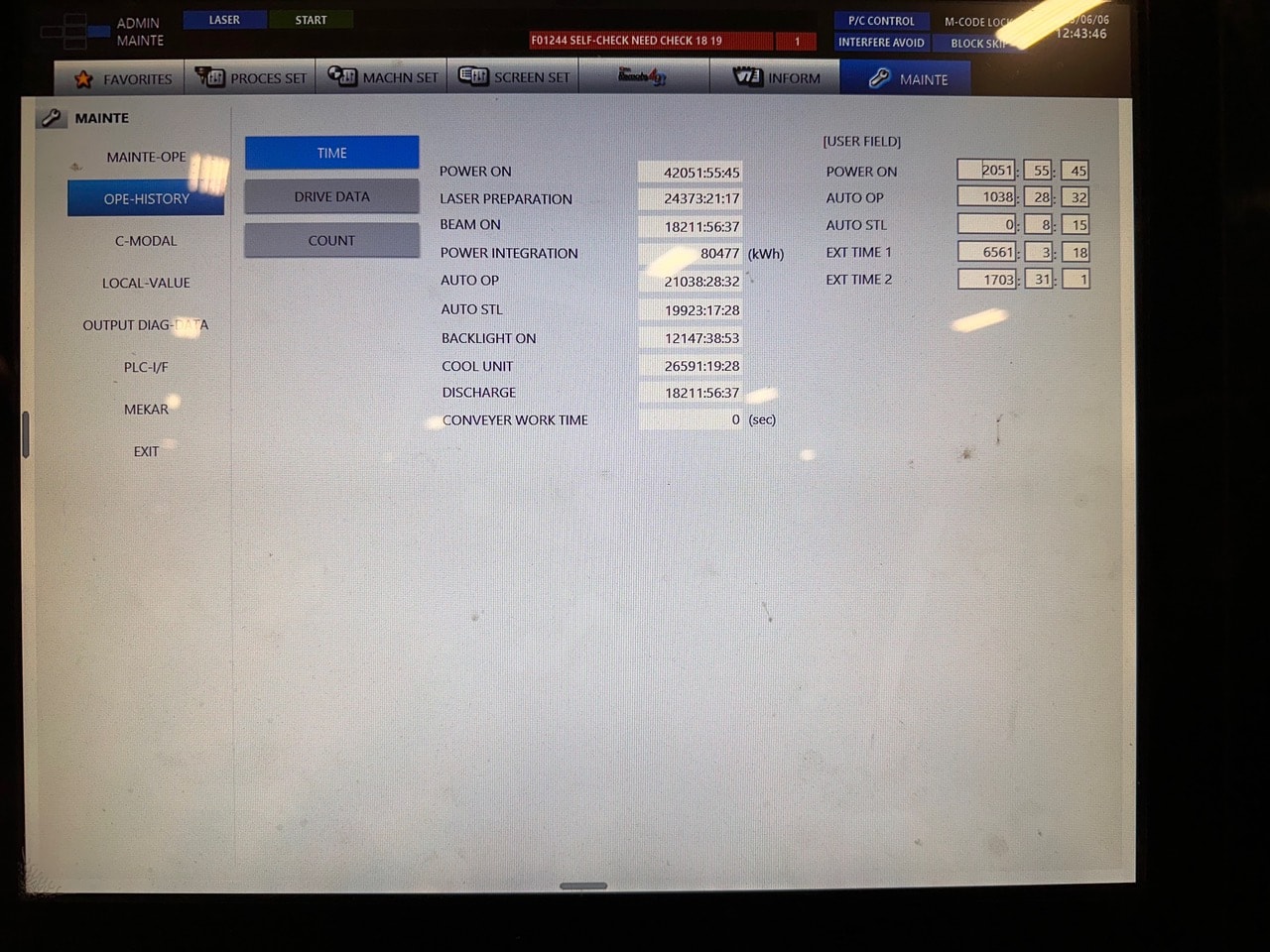

Beam On Hours: 18,000
Max. Workpiece Weight 2,050 lbs.
Machine Dimensions L 408.3” x H 88.6” x W 115.2”
Machine Weight 28,090 lbs.
Equipped With:

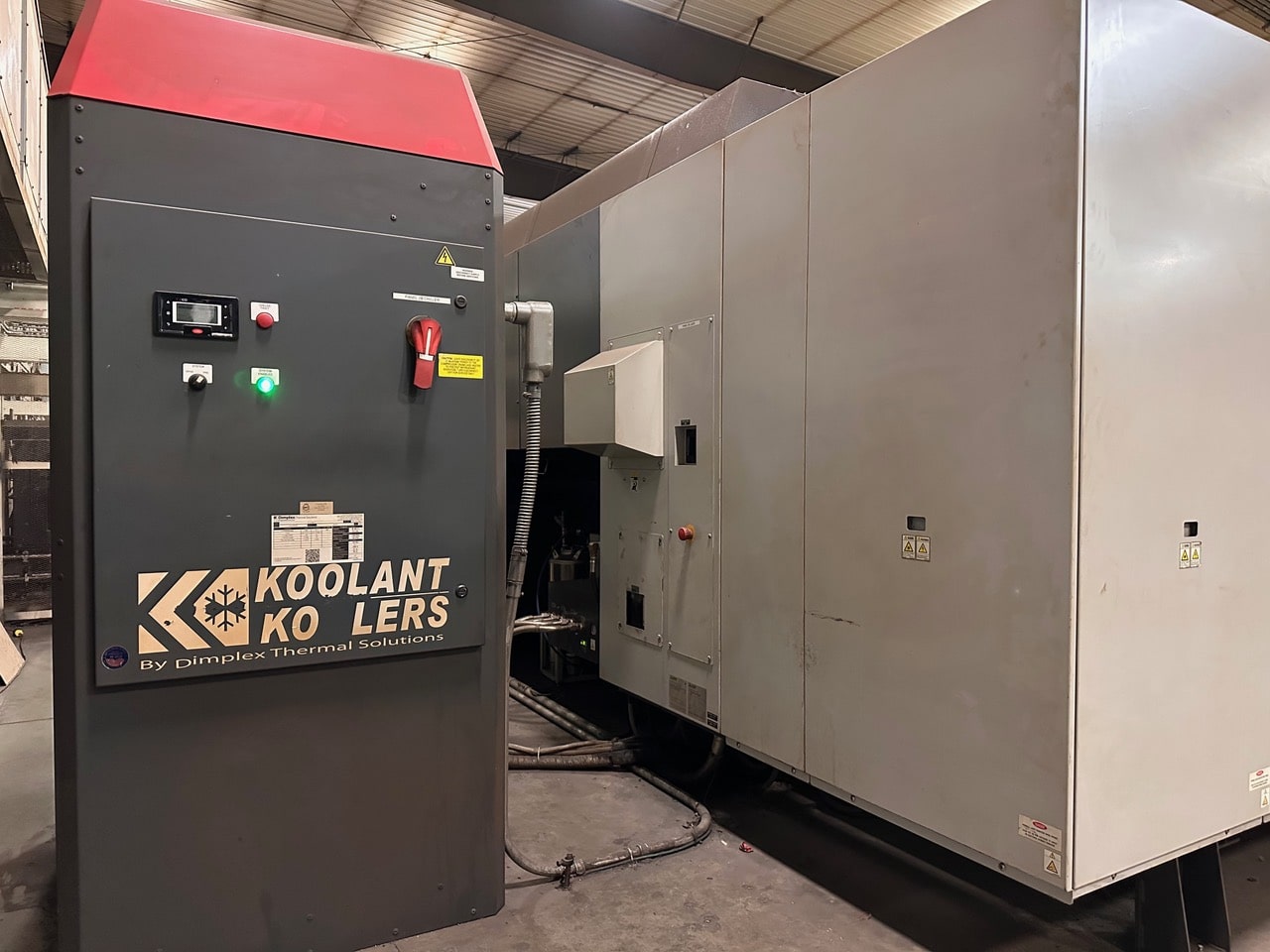

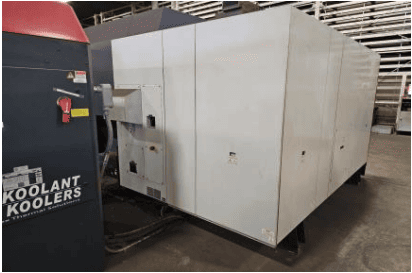

Dual circuit Laser Chiller 5 Ton Air cooled

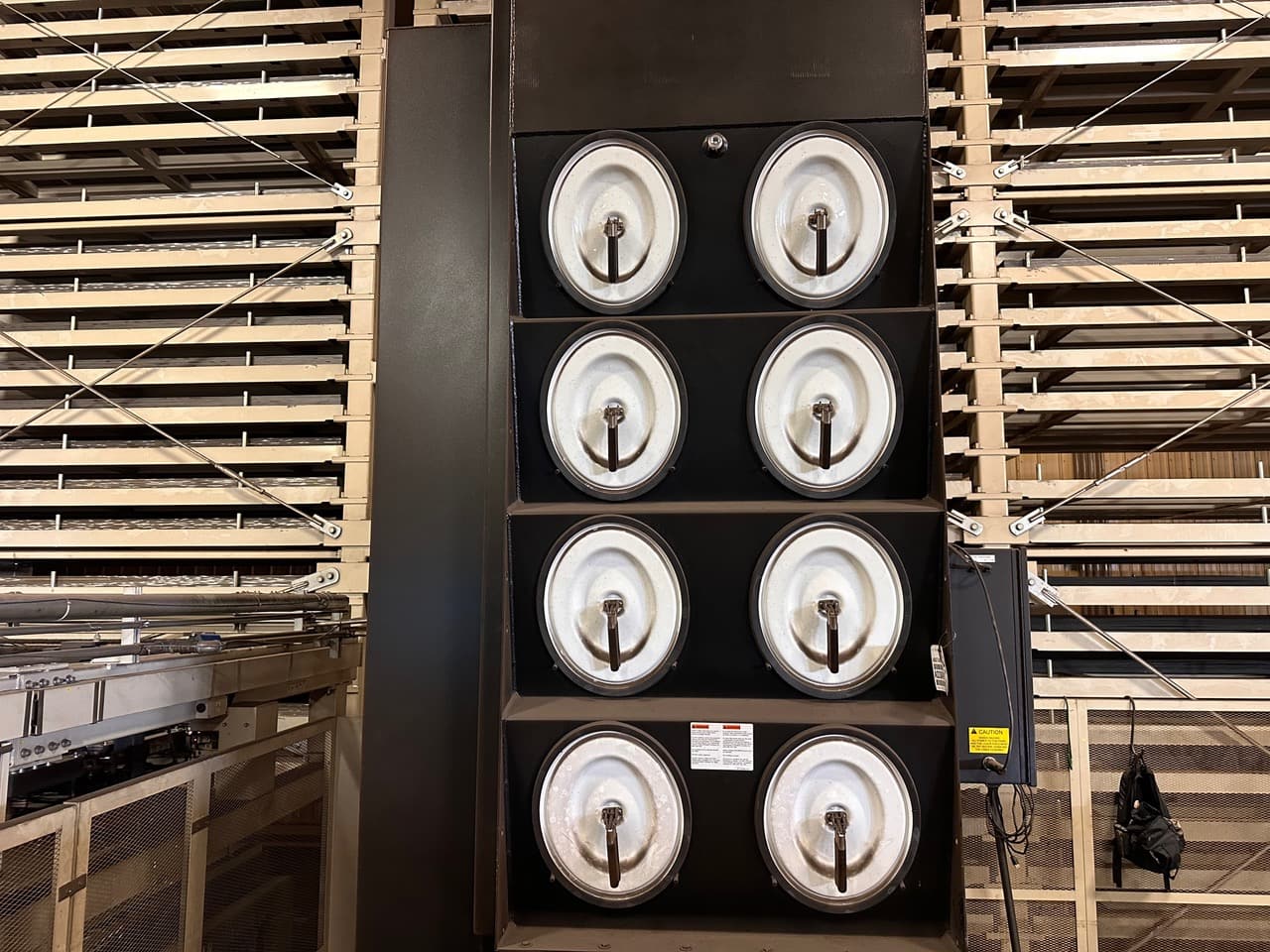

Dust Collector 16 filter unit
P7 Pallet Changer
