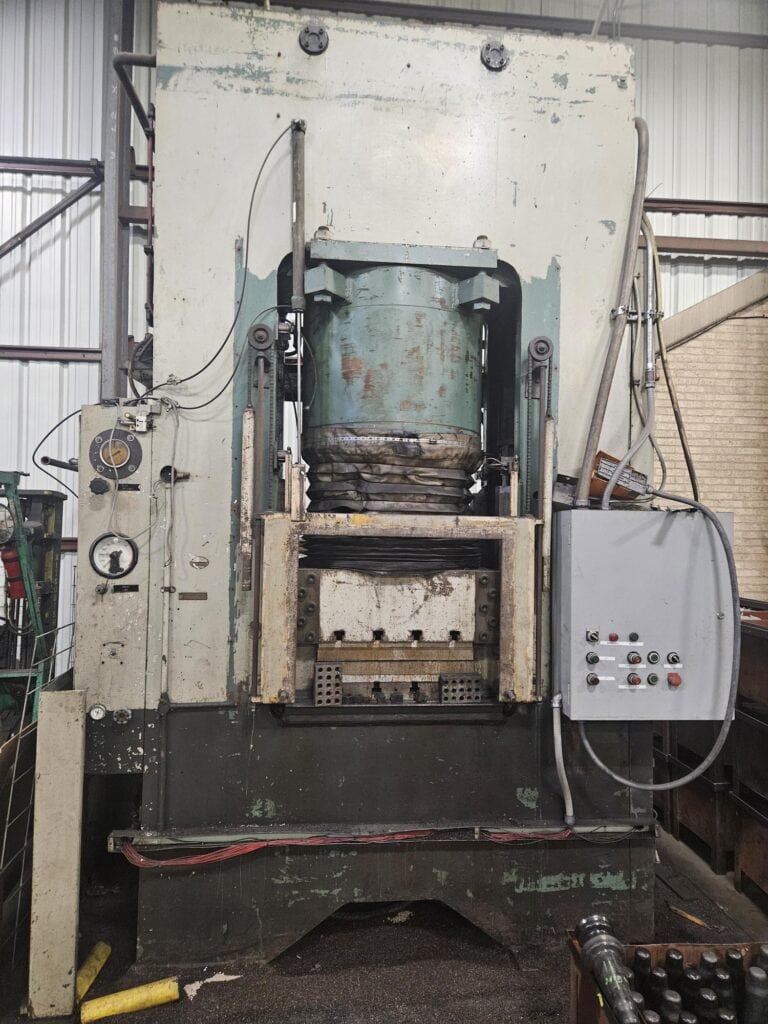

750 Ton Etchells Hydraulic Coining Press, 1975
$44,900.00
Machine Type: Presses
Make: Etchells
Model: Coining Press
Year: 1975
Capacity: 0 Ton
Machine Location: Texas
Stock #: 170792
Mode of operation: Oil-hydraulic
Table size (left to right): 24″
Table size (front to back): 24″
Table height: 34.8 ”
Stroke: 11.8″
Shut height: 18.1″
Approach speed: 9.84 inches/sec
Pressure speed: 0.17 inches/sec
Return speed: 10.24 inches/sec
Driving power: 49.6 HP
Total weight: 33,069 lbs
Dimensions: 96.9″ x 72″
Height of machine above floor: 147.4″
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
