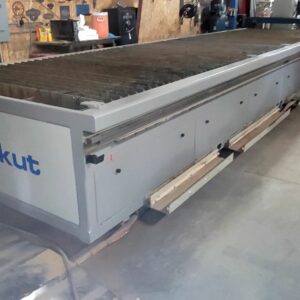

8′ x 24′ AKS Cutting Systems Accu-Kut CNC Plasma, 2022 – XPR170 Power Supply, Only Install Hours, Available Immediately
$205,000.00
This product is no longer available. For additional information, please fill out the form below.
Table width: 8′
Table Length: 24′
Max Thickness Cut: 1-9/16″
High Definition: No
Hypertherm XPR170VWI Power supply
Equipped with:
“tube-kut” Tube/Pipe Processing System
Increases width of table to 8’ (6’ plate + 2’ tube)
Includes 4 Jaw Chuck for 10.75” OD round pipe & 8” rectangular tubing up to 20’ long,
tube supports, & Rotary Tube Pro 3.0 software
tube must be within +/- .125”
Hypertherm Edge Connect CNC Controller Unit
Hypertherm Phoenix Operating Software
Hypertherm XPR170VWI Plasma Power Supply Unit 220V, 3PH, 60HZ
Hypertherm XPR170VWI Plasma Torch Cutting Head
Hypertherm VWI Vented Water Injection Console
Hypertherm Mild Steel Start-Up Kit for Plasma Unit
Laser Pointer for Plate Alignment & Location Finding
Heavy Duty “Unitized” Table with Removable/Replaceable Slat Design
Standard Multi-Zone Air Down Draft Table with Automatic Zone Control
24’ X-Axis Dual Synchronized Drives with Helical Rack & Pinion
8’ Y-Axis Bridge Single Drive with Helical Rack & Pinion
Heavy Duty Slide Advanced Torch Height Control (THC) Lifter & Leads for future bevel retrofit
Magnetic Torch Breakaway
Wireless Remote Control Pendant
Imperial Dust Collector, Model CM06 (230v)
Includes High Entry Inlet, Sprinkler, Drum Kit, Compressed Air Regulator, Spark Trap,
Integrated Controls, Silencer, & Horizontal Inlet Transition
3,600 CFM @ 10”SP, 10hp Fan
