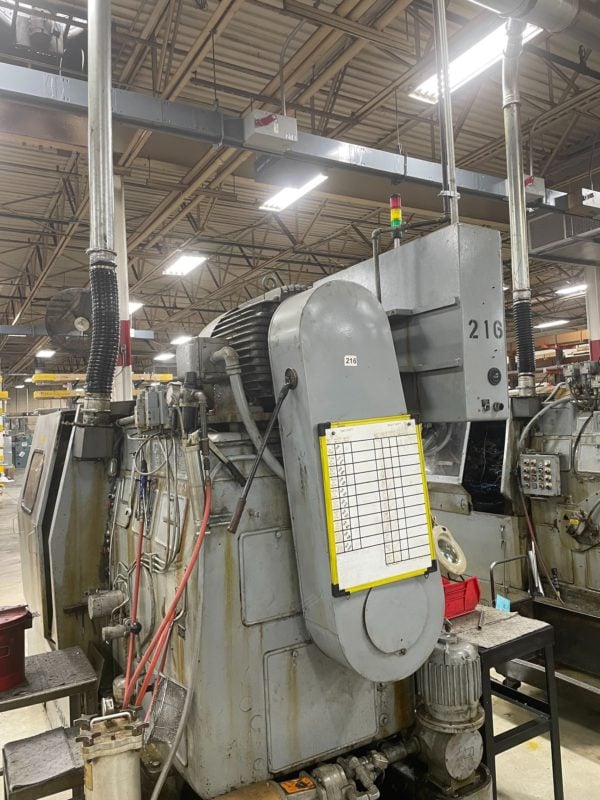

Acme Gridley RB-8, 1-5/8โณMultiple Spindle CNC Lathe Bar Machine, 1980 โ Screw
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Stock Capacity โ Round: 1-5/8โณ
Maximum Stock Capacity โ Square: 1-9/64โณ
Maximum Stock Capacity โ Hexagon: 1-13/32โณ
Combined Pusher & Tube โ Round: 1-23/32โณ
Maximum Sock Feed Length: 7โณ
End Tool Slide Travel: 8โณ
Upper Cross Slides Travel: 2-1/2โณ
Intermediate Cross Slides Travel: 1-1/2โณ
Lower Cross Slides Travel: 3-1/2โณ
Main Motor Horsepower: 40
Spindles: 8
Spindle Speed Minimum RPM: 163
Spindle Speed Max RPM โ Standard: 1475
Spindle Speed Max RPM โ Spindle Stopper: 1263
Idle Time Seconds โ Single Index: 2.36
Idle Time Seconds โ Double Index: 3.82
Idle Time Seconds โ Spindle Stopping: 2.36
Idle Time Seconds โ Spindle Positioning: 3.82
Weight of Machine: 32,100 lbs (approx)
Length of Machine: 13โฒ-2โณ
Length of Machine with Stock Reel and Stand: 20โฒ-7โณ
Width of Machine: 4โฒ-8โณ
Lubrication Reservoir Capacity โ Gallons: 25
Lubrication Pump Flow Rate โ GPM: 3
Coolant Reservoir Capacity โ Gallons: 250
Coolant Pump Flow Rate โ GPM: 60
Equipped With:
12โฒ Stock Reel
Chip Conveyor
Pnumatic Parts Chute
Tapping Attachment
Pick-Off Attachment
Backworking Attachment
Logan CS2001XT Controller
Logan Threading Clutches
Logan Hi/Lo Feed Clutch
Central Mist Collector Hook-Up
