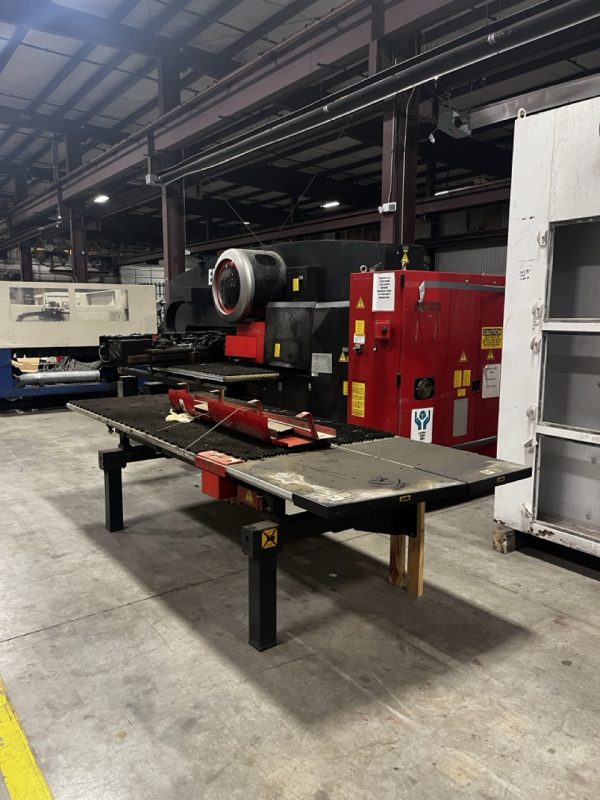

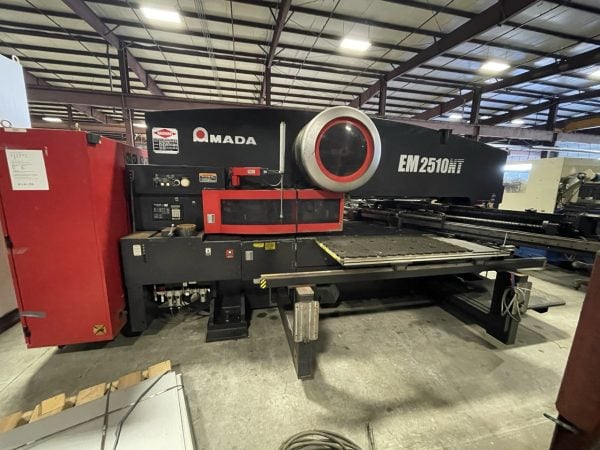

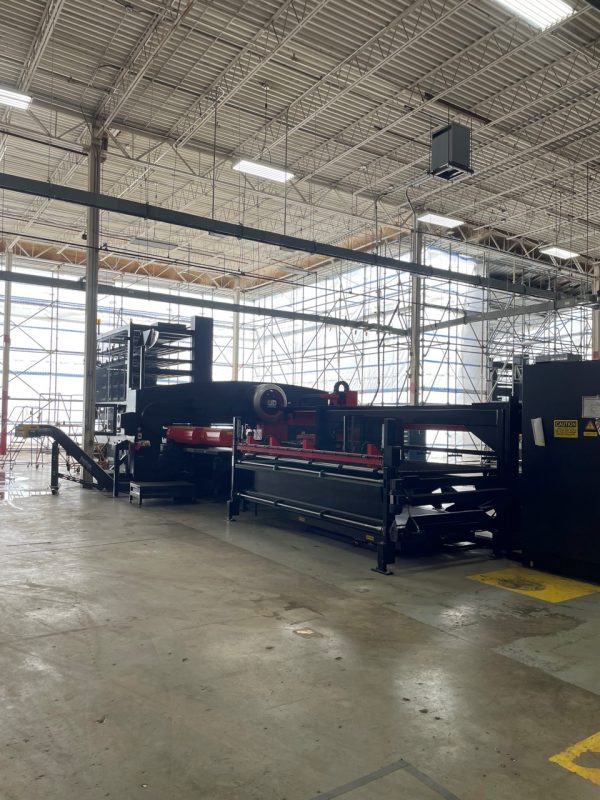

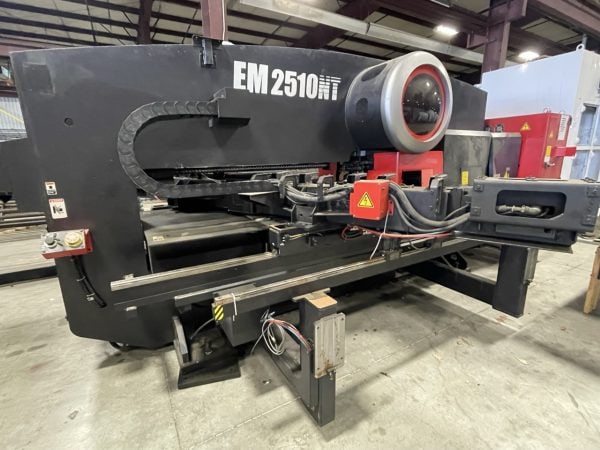

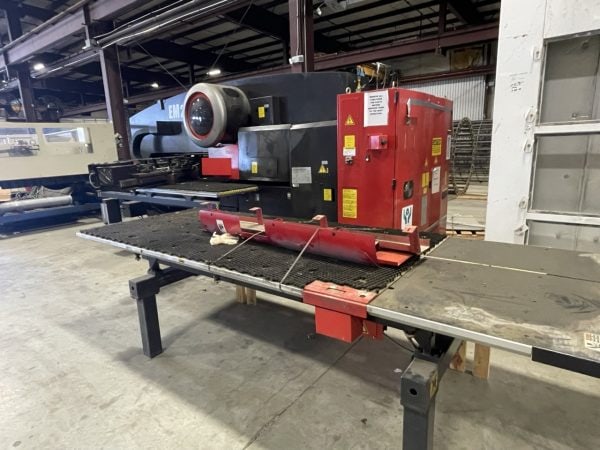

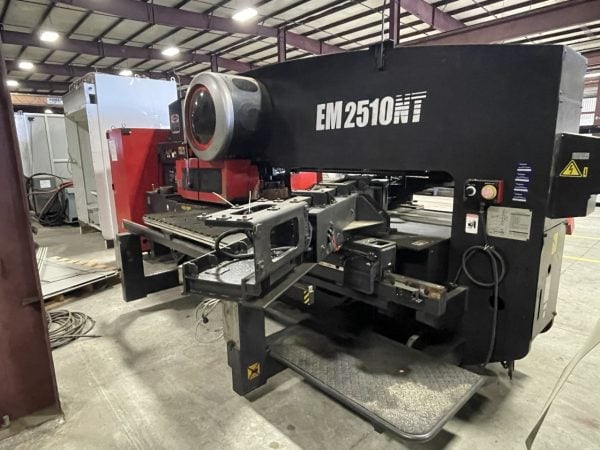

Amada EM2510NT CNC Turret Punch Press, 2004 – With AMS4020ROS Loader
$129,900.00
Machine Type: Turret Punches
Make: Amada
Model: EM2510NT
Year: 2004
Capacity: 22 Ton
Machine Location: Upon Request
Stock #: 572387
Capacity: 22 Ton
Sheet Width: 50″
Sheet Length: 100″
Turret Stations: 45 Stations with 2 Auto Indexers
Throat Depth: 50″
Tooling Style: Thick
Puch/Form/Scribe Drive Type: AC Servo
Max Punch Stroke: 1.65″
Max Travel w/o Reposition: 50″ x 98.4″ (50″ x 196.8″ with 1 reposition)
Max Feed Rate X-Axis: 3,150 ipm
Max Feed Rate Y-Axis: 2,362 ipm
Max Material Weight: 331 lbs
Max Hit Rate: 900 hpm (at 0.019″ pitch and 0.055″ stroke for marking), X-Axis 350 hpm, Y-Axis 280 hpm (on 1″ pitch @ 0.118″ stroke)
Number of Auto-Indexer Stations: 2
Turret Rotational Speed: 30 rpm
Auto-Index Rotational Speed: 60 rpm
Table Type: Brush
Clamping Type: Pneumatic
Equipped with:

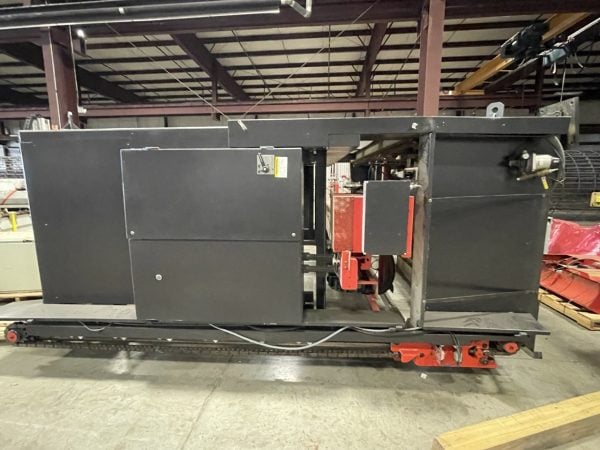

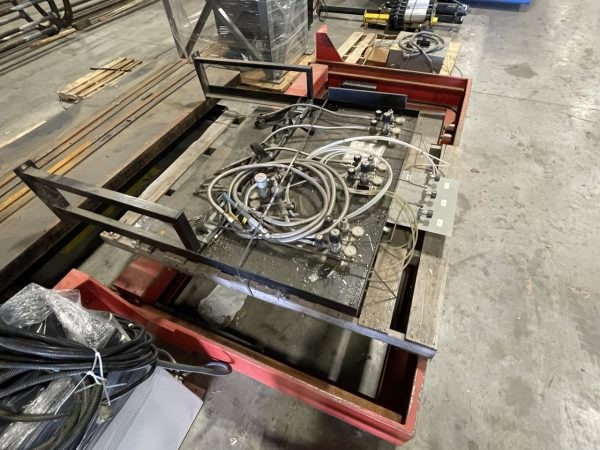

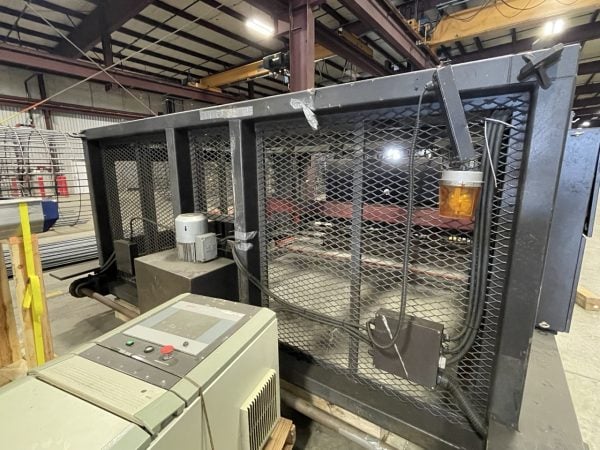

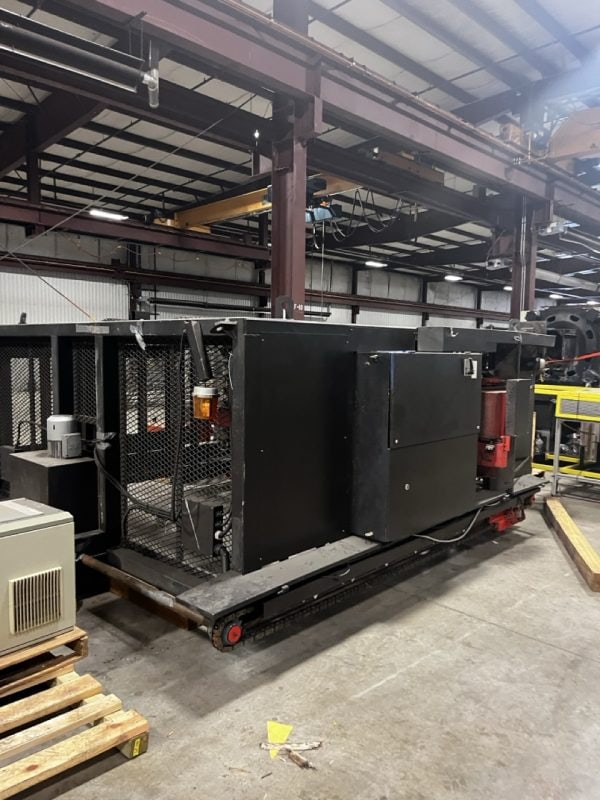

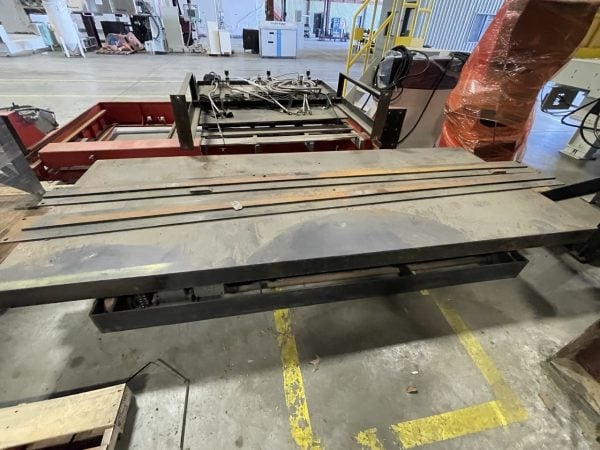

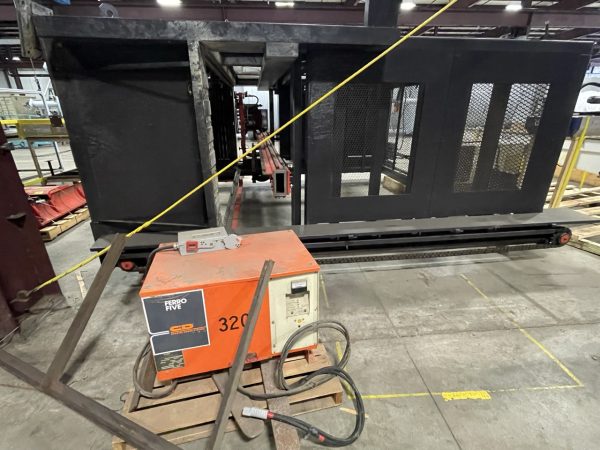

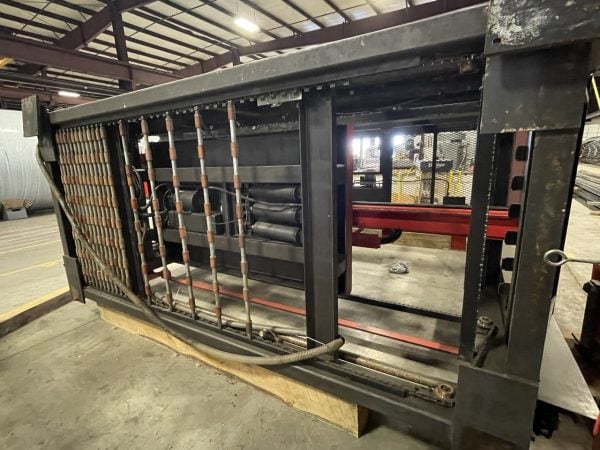

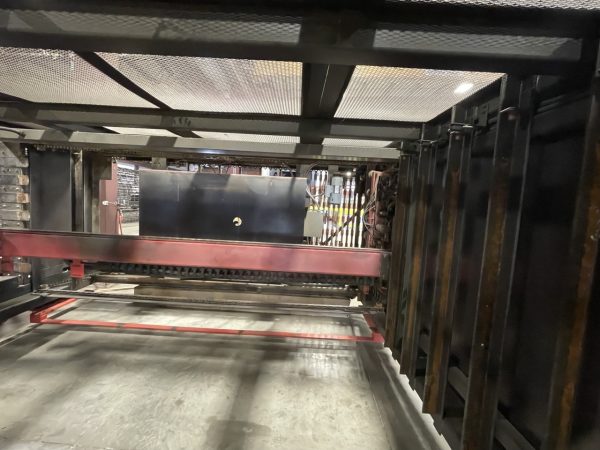

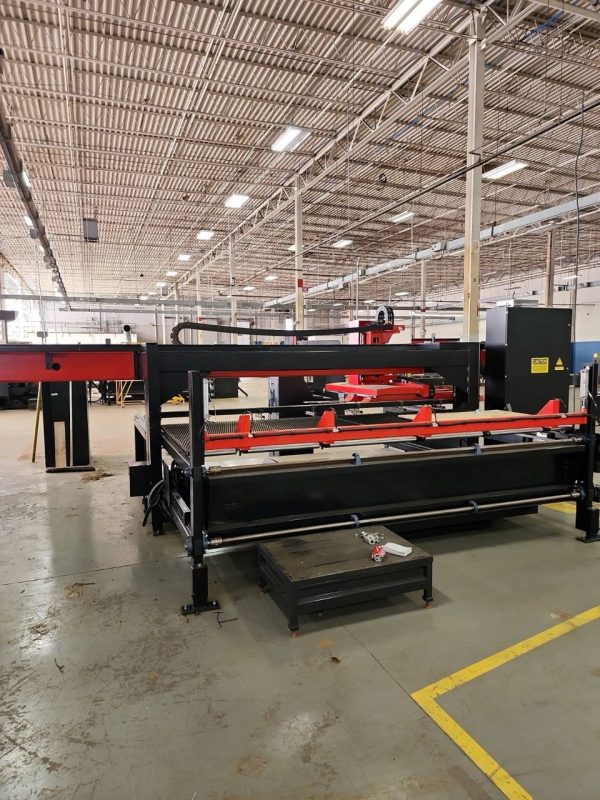

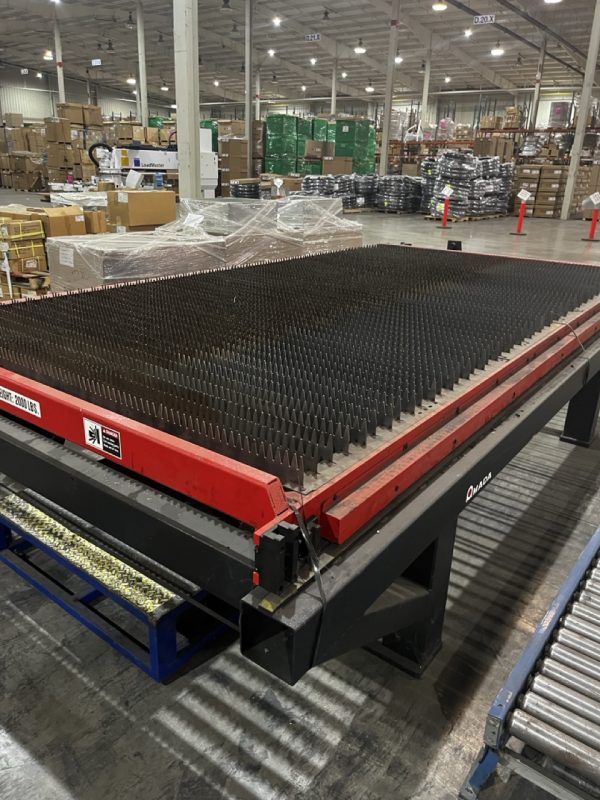

AMS4020ROS Loader
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
