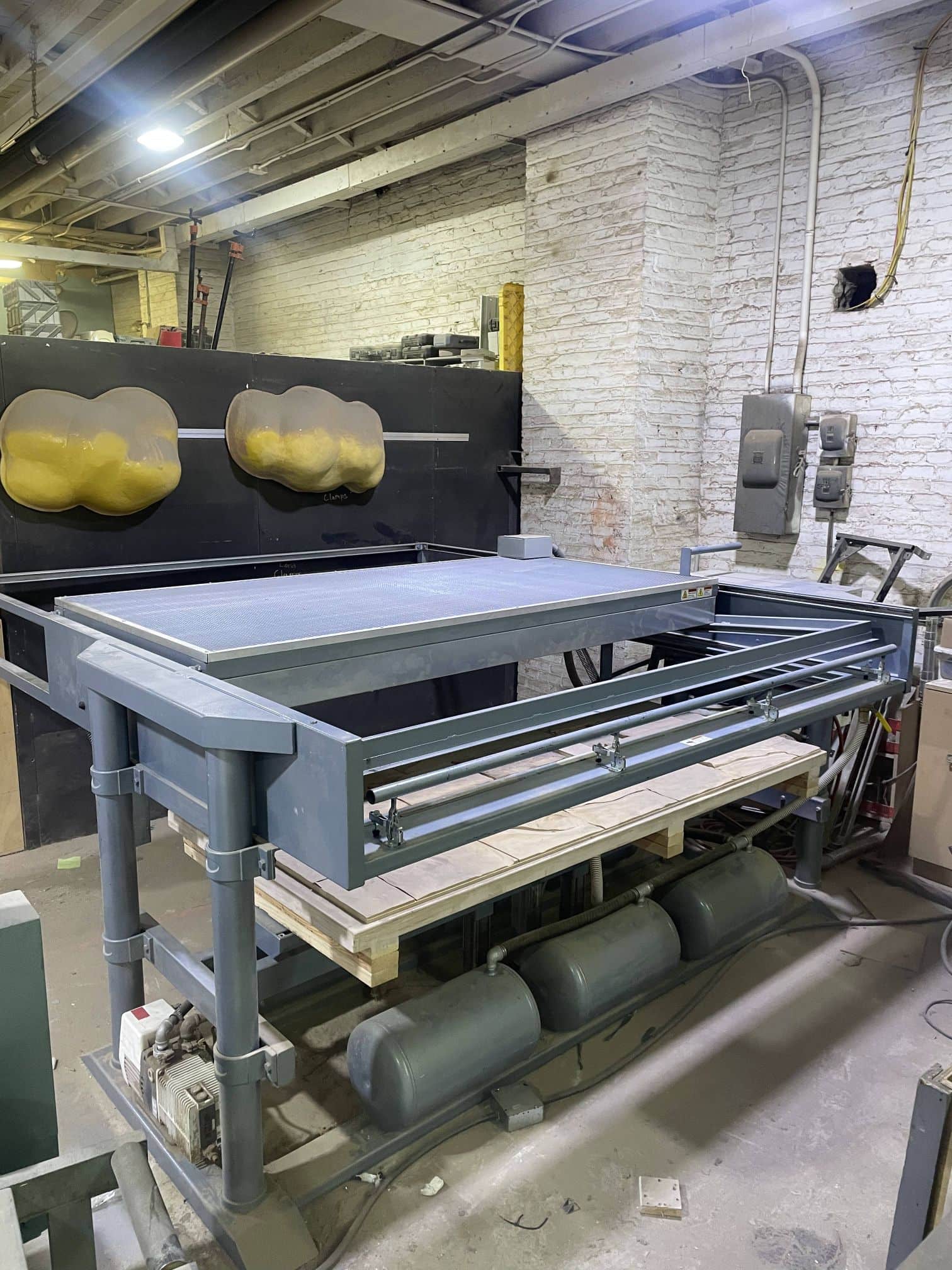

Belovac C Class Vacuum Former, 2018


Request a Quote to Instantly See Pricing

Machine Type: Process Equipment
Make: Belovac
Model: C Class
Year: 2018
Machine Location: New York
Stock #: 020340

Equipment Features
● Sheet size: 24″ x 48″
● Depth of draw: 18″
● Fully adjustable material clamping
● Tooling table:
3 1/4” Pneumatic drive cylinder, 300lb seal pressure with adjustable slotted track for rapid tool mounting

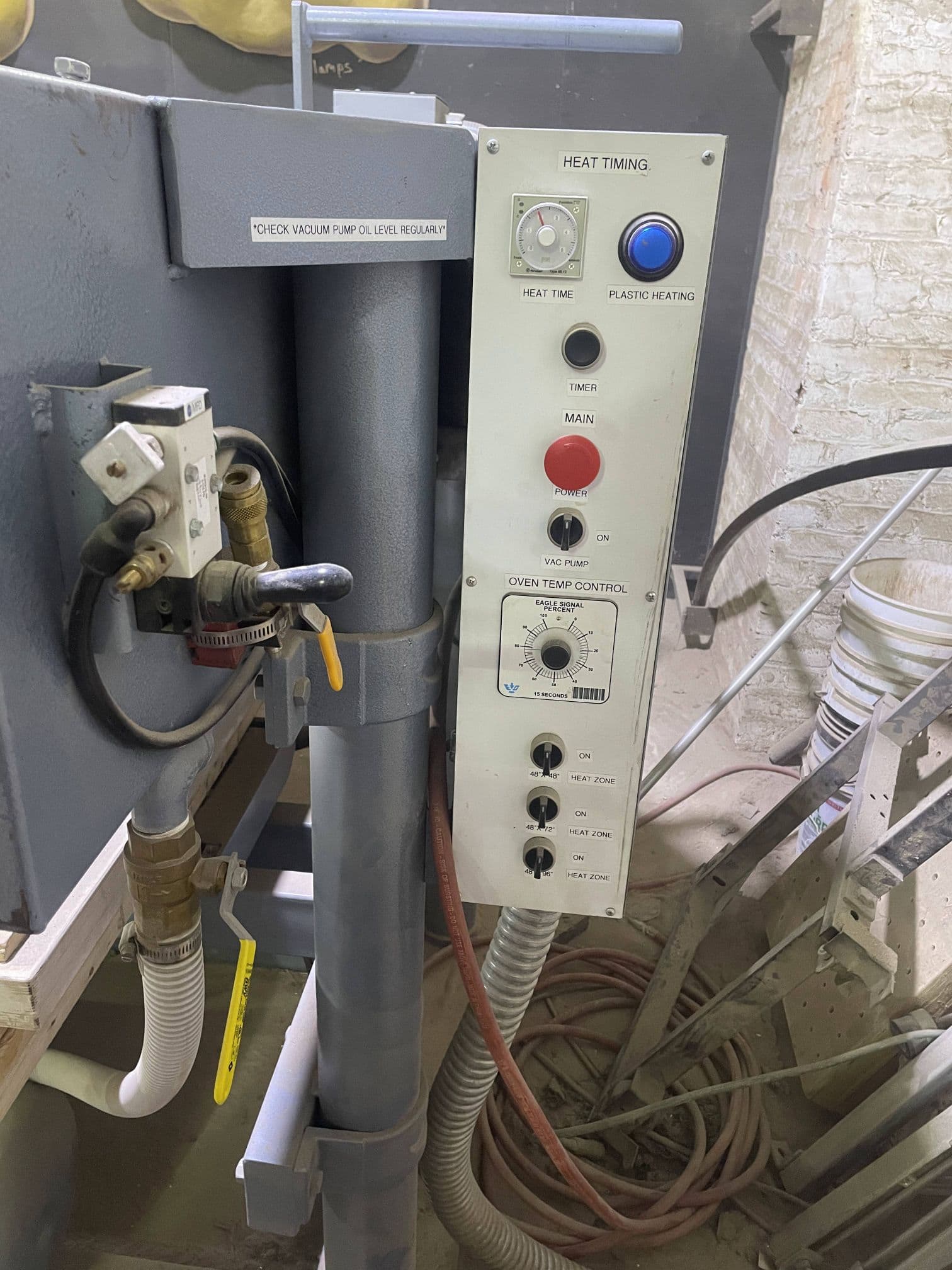

● Solid state programmable heat timing unit, coupled with programmable percentage control unit
● Heater Panel: 20,000 watts infrared radiant panel

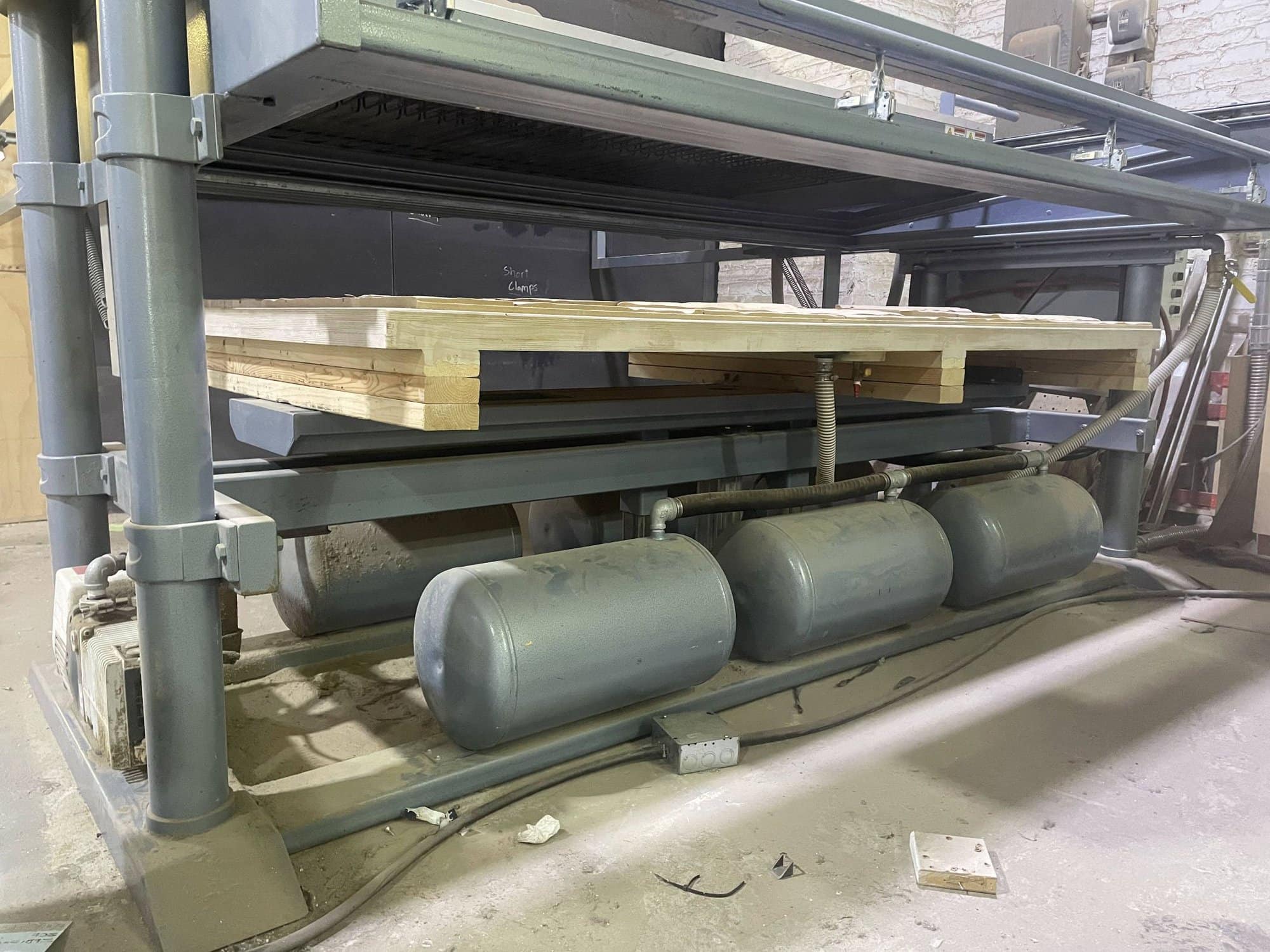

● Vacuum Pump: High volume, Hi-vacuum pump, Onboard 20 Gallon surge tank
● Construction: Post and Beam, Modular Frame System
● Recommended for plastics
ABS – PVC – PET – Poly styrene –
kydex – Poly propylene
● Plastic gauges: up to 1/4”

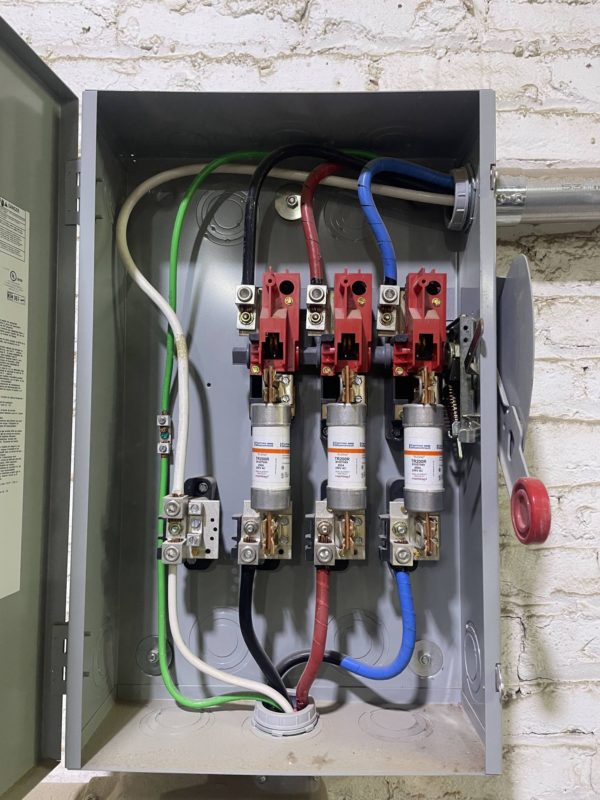

● Power requirement: 220V, 3P, 40A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
