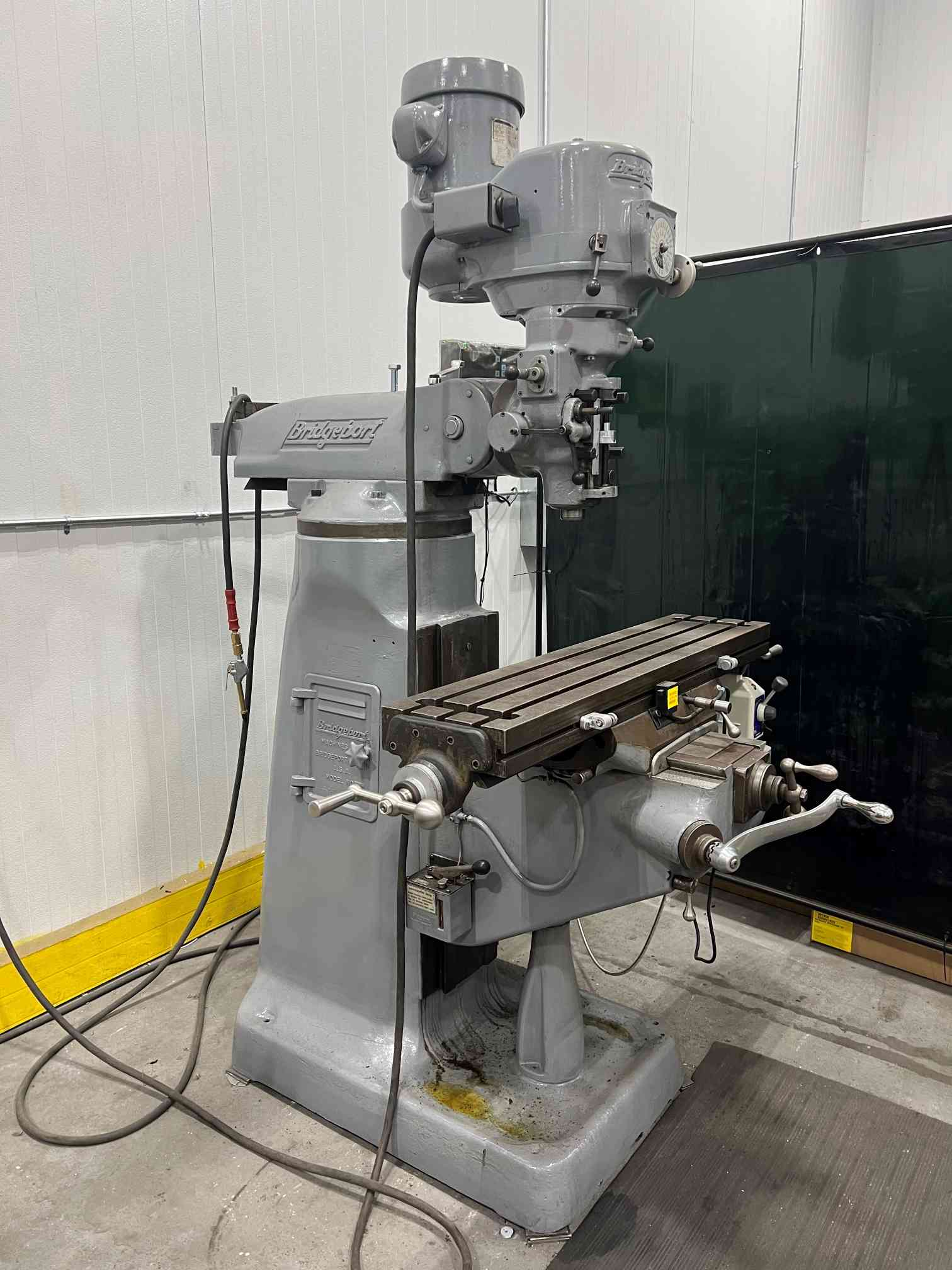

Bridgeport Series 1 CNC Knee Mill, 1981 โ 42โณ Table
$6,435.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Range
Table travel (X-axis):
30 in.
Saddle travel (Y-axis): 12 in.
Quill travel: 5 in.
Knee travel (Z-axis manual): 16 in.
Ram travel: 12 in.
Throat distance (min.): 6-3/4 in.
Throat distance (max.): 18-3/4 in.
Table to spindle nose gage line (min.): 2-1/2 in.
Max. weight of workpiece: 750 lbs.
Table Size: 9 x 42 in.
T-Slots:
3 on 2-1/2 in. centers
T-Slot size: 5/8 in.
Height above floor (max.): 47-1/4 in.
Milling
Std. Power Feed:
Feed rate (X): 3/4-35 ipm
High Torque Power Feed:
Feed rate (X): 3/8-15 ipm
Space and weight
Floor area: 7x10ft.
Height: 82-1/16 in.
Net weight: 1988 lbs.
Shipping weight: 2180 lbs.
Power
Electrical supply-60 Hz., 3-phase: 208 / 230 / 460 / 575V
