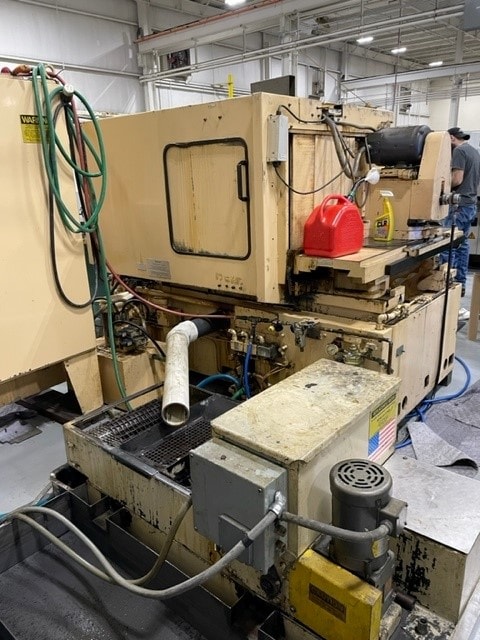

Cincinnati Milacron Heald ID 2EF-700G Grinder, 1970 โ Parts Machine
$4,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing inside standard chuck guard: 24โณ
Maximum table travel: 16โณ
Maximum grinding stroke: 12โณ
Minimum hole diameter: 0.060โณ
Maximum hole diameter: 6โณ
Spindle speeds: 6500-18000 RPM (variable speed)
Spindle drive motor: 3 HP
Grinding spindle quill travel: 5โณ
Grinding spindle quill feed rate: 0.001-0.003 IPM
Workhead swivel: 90 degrees left and right
Workhead speeds: 90-720 RPM (variable speed)
Workhead drive motor: 1/2 HP
Equipped with

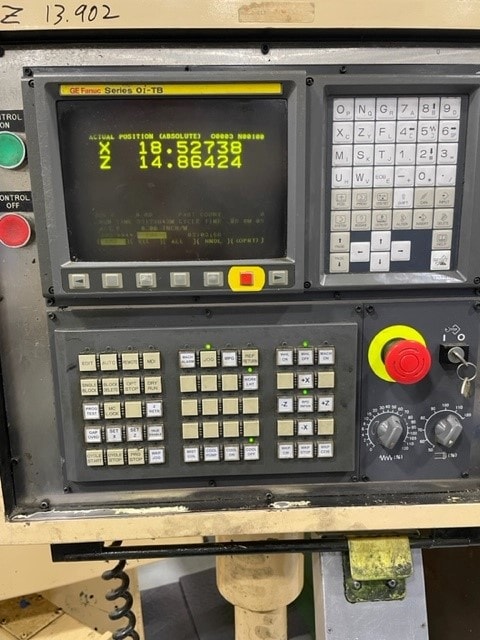

Fanuc Control
