Doosan DNM 400II CNC VMC, 2015 – 8K RPM Big Plus Spindle
$49,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-Axis: 30.2″
Y-Axis: 17.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 24.25
Table:
Length: 36.2″
Width: 17.37″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1300 lbs
Spindle:
Spindle: Taper Size: 40
Speed Range: 0 – 8,000 RPM
Spindle Type: Belt Drive
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 30
Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds
General:

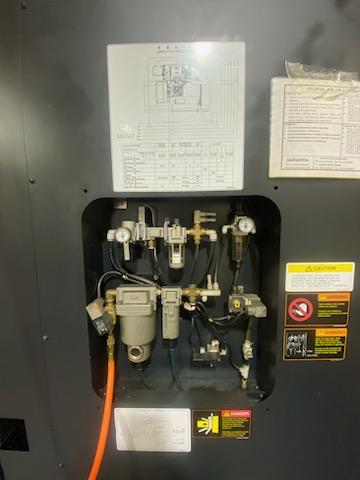

Air Required: 80 psi, 4 scfm
Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 120″ x 100″ x 110″ High
Weight: 12500 lbs
Equipped With:
Daewoo Doosan DNM-400II Features:

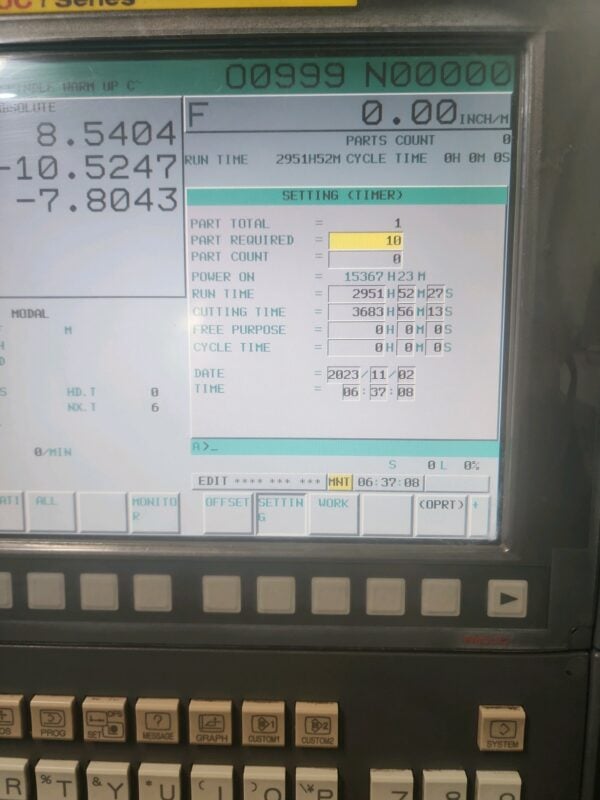

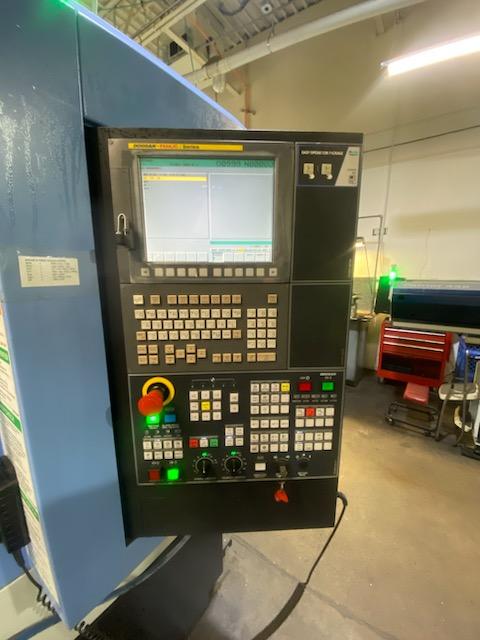

Doosan Fanuc Oi-series CNC Control
Through Spindle Coolant
8,000 RPM Big Plus Spindle
USB Drive
Wireless Probing Ready
1417 Inch Per Min Rapids
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
30 Automatic high speed tool changer
High Pressure Flood Coolant
Telescopic way covers
Spindle Chiller Unit
Dual Chip augers
Levelling Pads
Brand New Chip Conveyor
