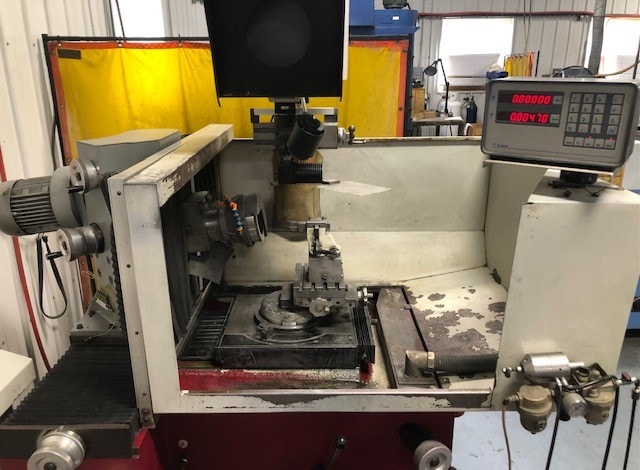

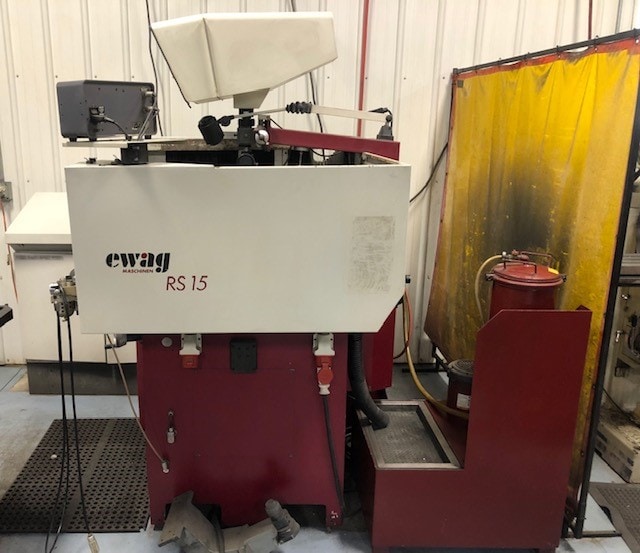

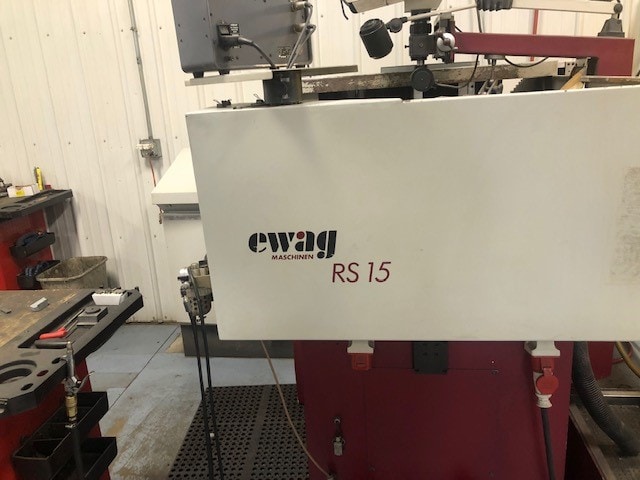

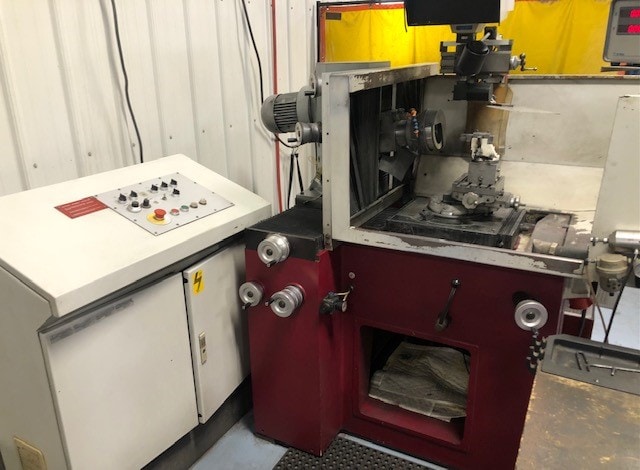

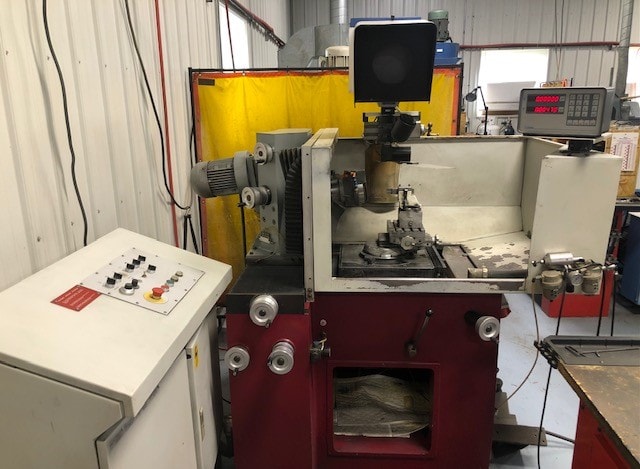

Ewag RS-15 Precision Grinder, 1997

$46,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Grinders
Make: Ewag
Model: RS-15
Year: 1997
Machine Location: Michigan
Stock #: 941527

Motor Power: 2.2 K W
Special Version Infinitely Variable: 1000 – 8000 Rpm
Spindle Inclination (a Axis): -10° up To +27°
Setting Accuracy of Spindle Inclination: 1 Min
Height Adjustment (y Axis): 130 Mm
Stroke Range (x Axis): 490 Mm
Oscillation Stroke, Steplessly Adjustable During
Operation: 0 – 68 Mm
Oscillation Frequency: 0 – 68 Min-1

Workhead

Radius Setting (z Axis): 0.01-120 Mm
Setting a Accuracy of Z Axis: 0.01 Mm
Retraction of Slide from The Grinding to The
Measuring Position: Max. 120 Mm
Cross Table, Clamping Surface: 155 X 205 Mm
Travel: Each 60 Mm (2.36”)
Maximum Swivelling Angle (b Axis): 260°

Power Supply

3x380V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
