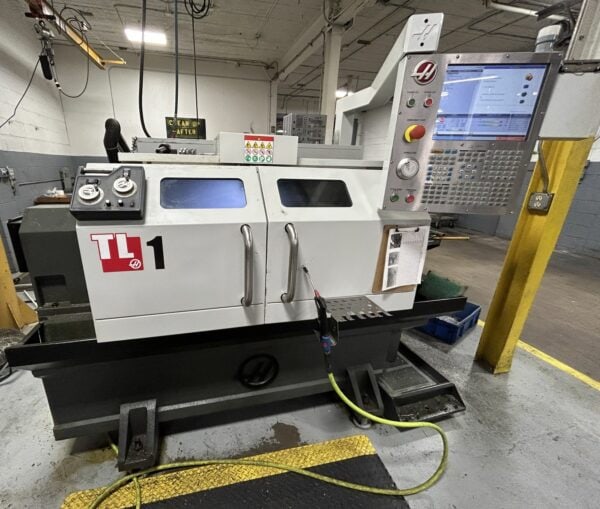

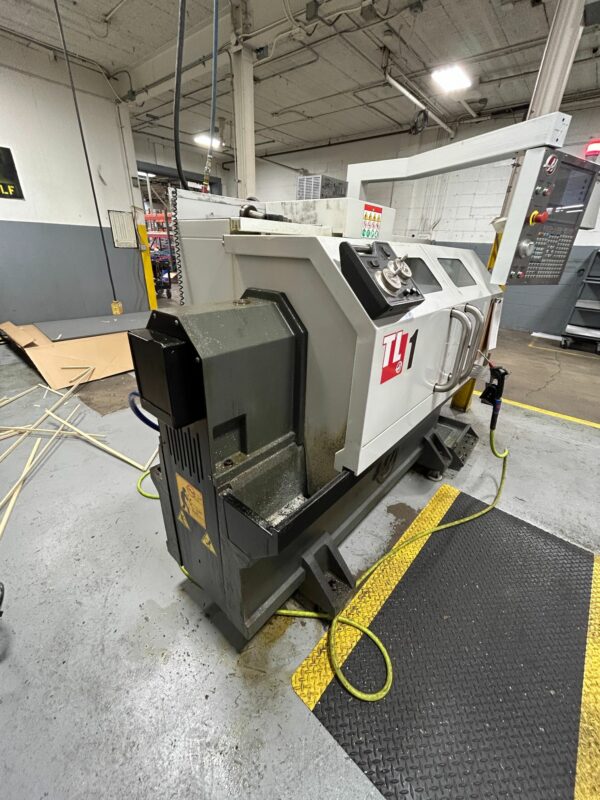

HAAS TL-1 CNC Toolroom Lathe, 2018 โ€“ A2-6 Spindle, Tailstock โ€“ Pre-Removal Pricing

$24,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Maximum Swing Over Bed: 16 inches
Maximum Cutting Diameter: 16 inches
Maximum Cutting Length: 30 inches
Spindle Bore Diameter: 2.3 inches
Spindle Nose: A2-6
Spindle Speed: 1800 RPM
Spindle Motor Power: 10 HP
Turret Type: Manual tool turret with tool holders
Tool Capacity: 4 Station MC8-6 Workhold
Rapid Feedrates: 450 ipm
Power Requirements: 208-240 VAC, 3-phase power supply

Dimensions: 89 in x 67 in x 83 in
Weight: 4200 lb

Equipped with:
A2-6 Spindle
E-Handwheels

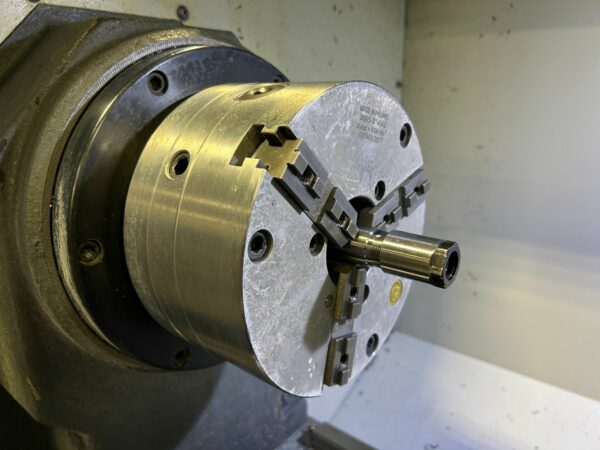

8โ€ณ 3 Jaw Chuck
Tooling
Tailstock
