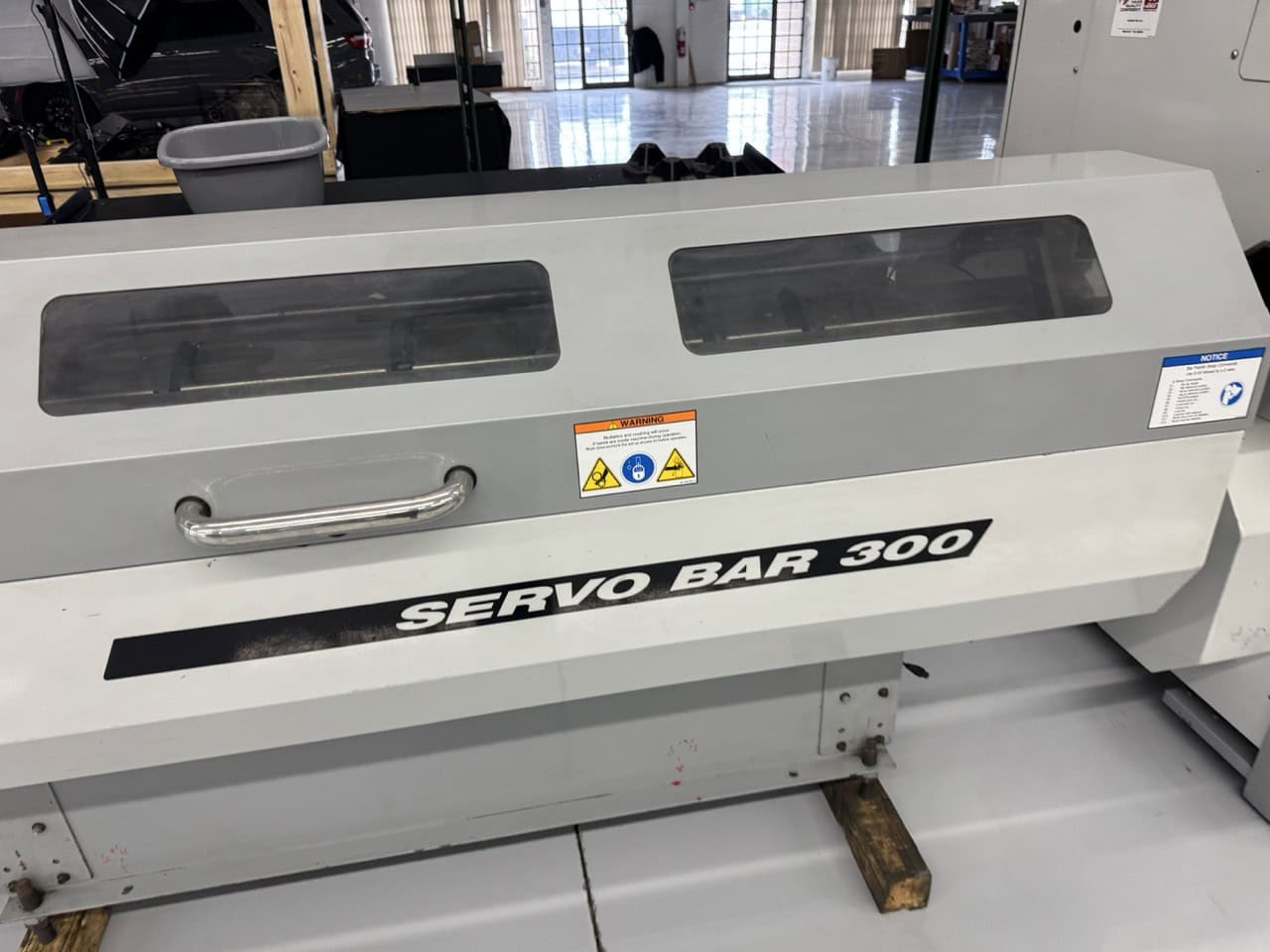

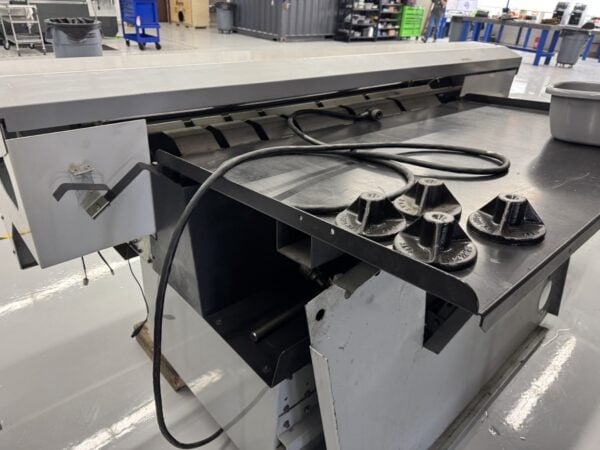

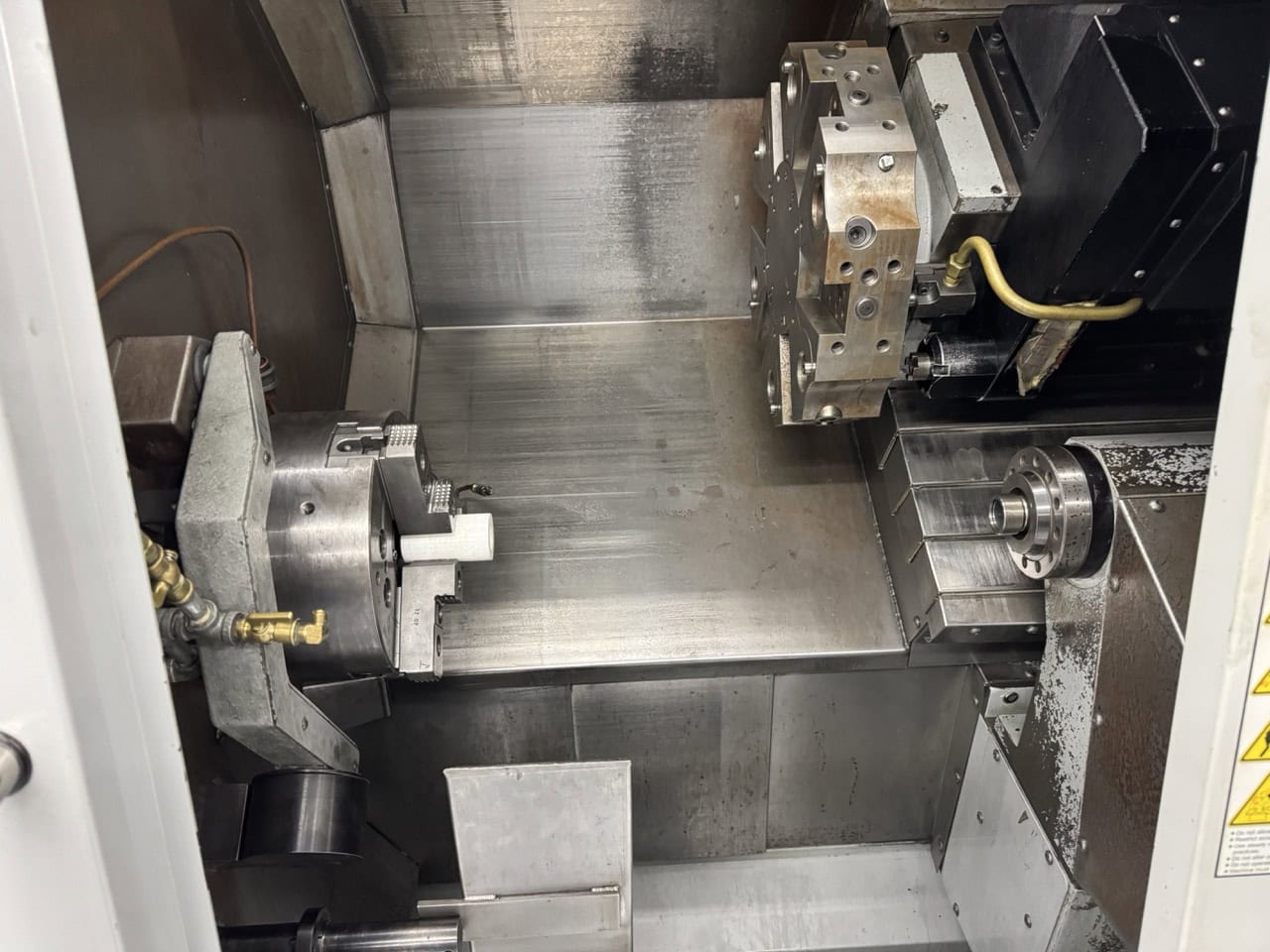

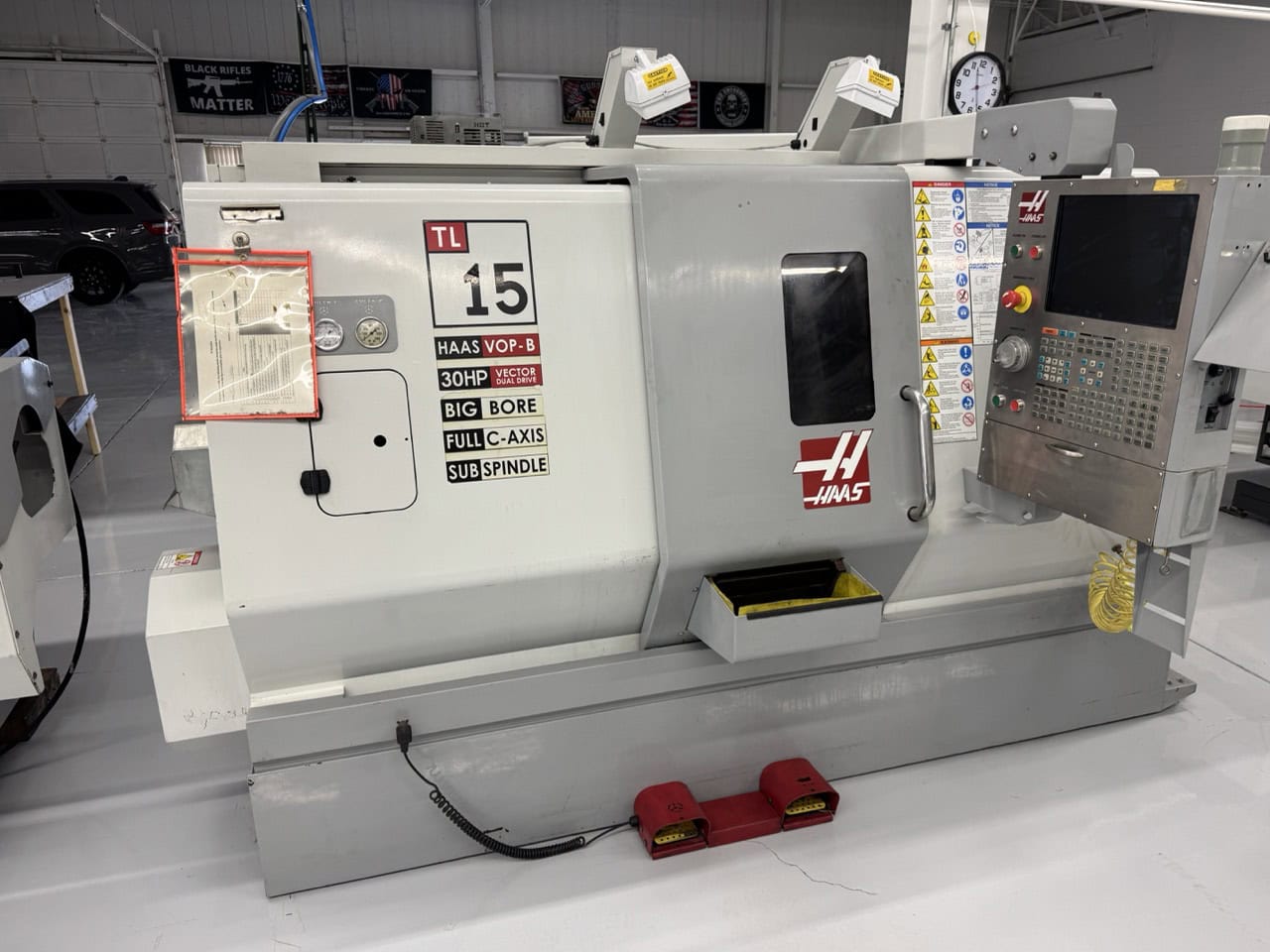

HAAS TL-15 CNC Lathe, 2007 โ Bar Feeder, Full C-Axis, Sub-Spindle
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Swing Over Front Apron: 23โณโ
Maximum Swing Over Cross Slide: 9.5โณโ
Maximum Turning Diameter: 8.2โณโ
Maximum Turning Length: 17.5โณโ
Distance Between Spindles: 22.11โณ (with chucks)โ
X-Axis Travel: 7.5โณโ
Z-Axis Travel: 17.5โณโ
Spindle Nose: A2-6โ
Spindle Bore: 3.0โณโ
Maximum Bar Capacity: 2.0โณโ
Maximum Spindle Speed: 4,000 RPMโ
Spindle Motor Power: 30 HPโ
Spindle Motor Power: 8 HPโ
Turret Capacity: 12 stationsโ
Live Tool Speed: 0 โ 3,000 RPM
