Haas VF-3 SS CNC VMC, 2021 โ€“ WIPS, 4th Axis, Thru Spindle Coolant, Probing

$98,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Table Size: 18โ€ณx48โ€ณ

Maximum Table Load: 1750 Lbs.

X Axis: 40โ€

Y Axis: 20โ€

Z Axis: 25โ€

Spindle Horsepower: 30 HP

Spindle RPM: 12,000 RPM (Max)

Spindle Taper: 40

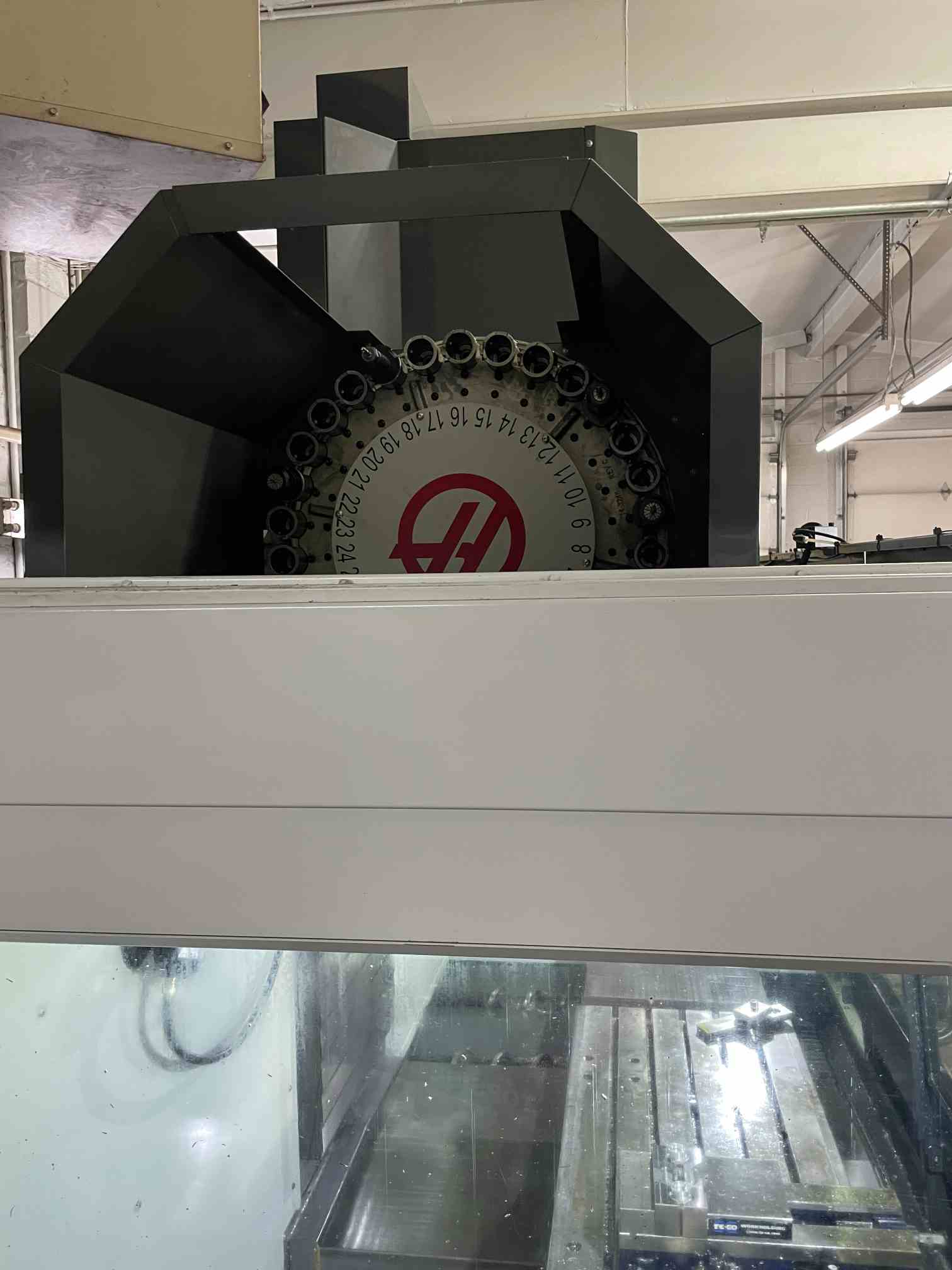

Number of Toolchanger Positions: 30 +1

Electrical Requirement: 220 VAC, 3 PH

Floor Space Required: 152โ€ x 99โ€ x 106โ€ High

Approx. Machine Weight: 11,700 Lbs

Equipped With:

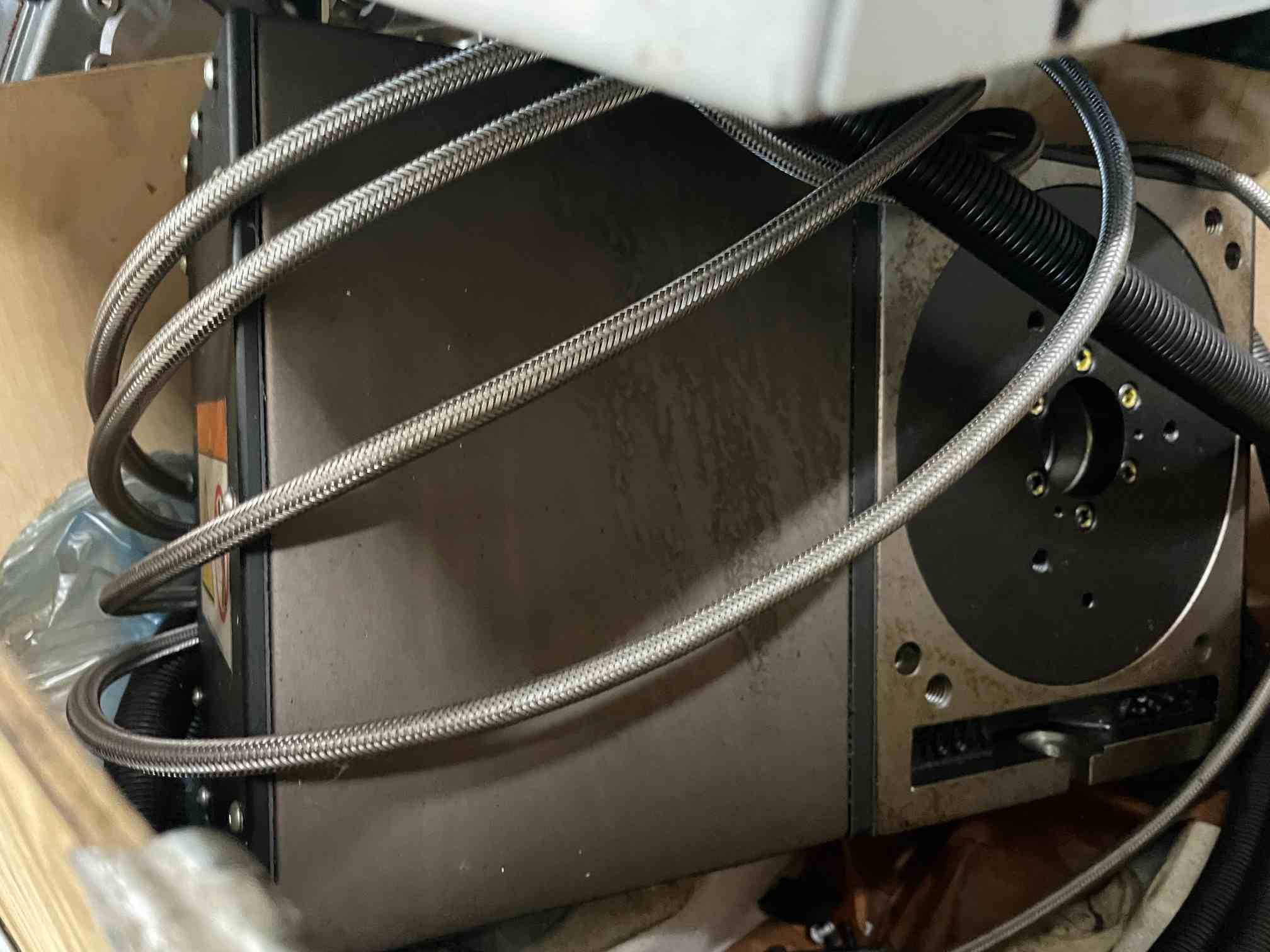

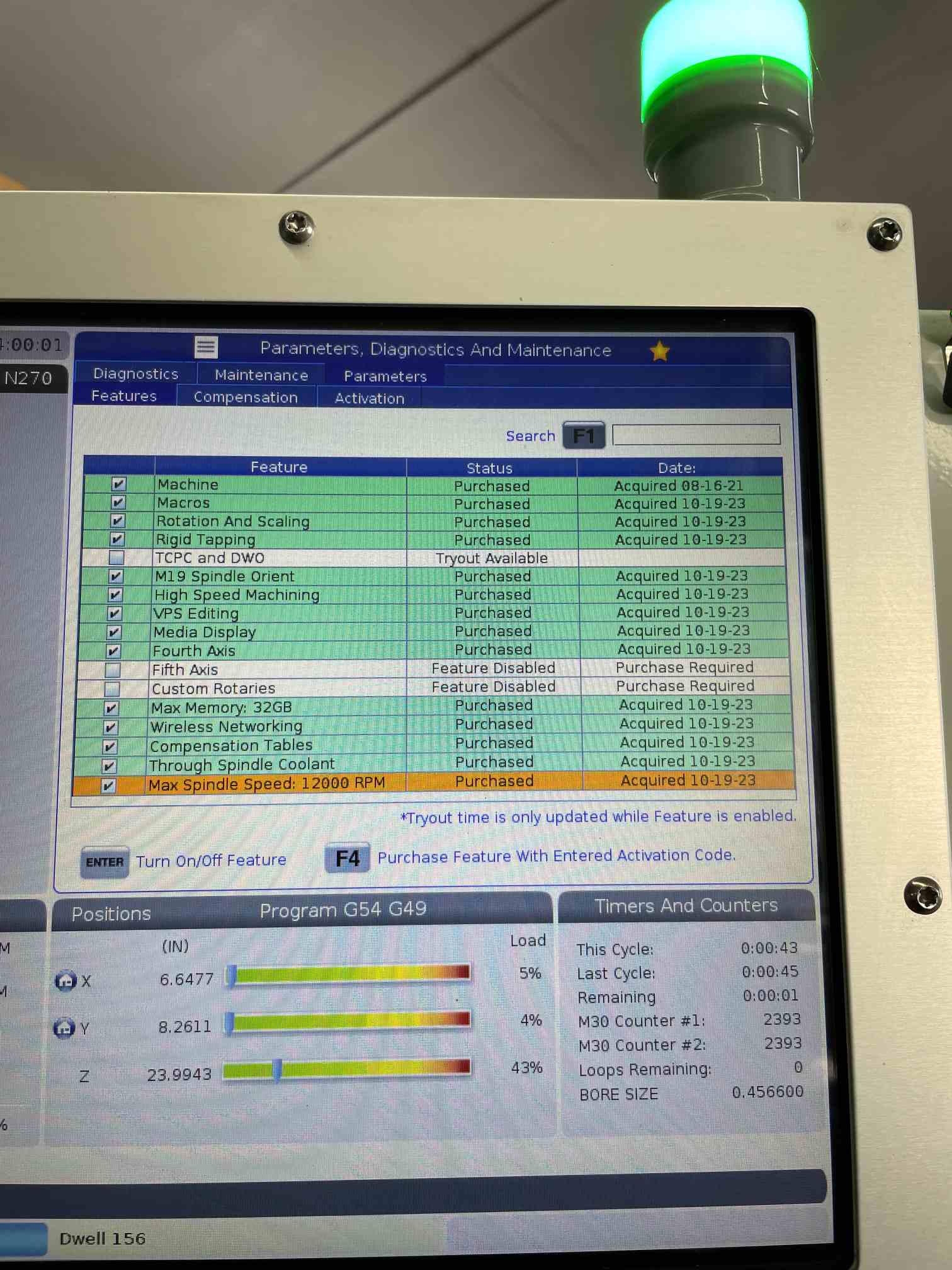

Haas Intuitive Control with 32GB Extended Memory, Through Spindle Coolant (300 PSI), 4th Axis Drive, Wireless Intuitive Probing System (WIPS), Multi-Chip Auger System, Coolant Chiller, Tool Air Blast, High-Speed Machining, Auxiliary Coolant Filter, CNC Control Cabinet Cooler, Coolant Tank Oil Skimmer, Haas HRT-210 Rotary Table, Tool Holder Kit w/pull studs, (2) Kurt Vises
