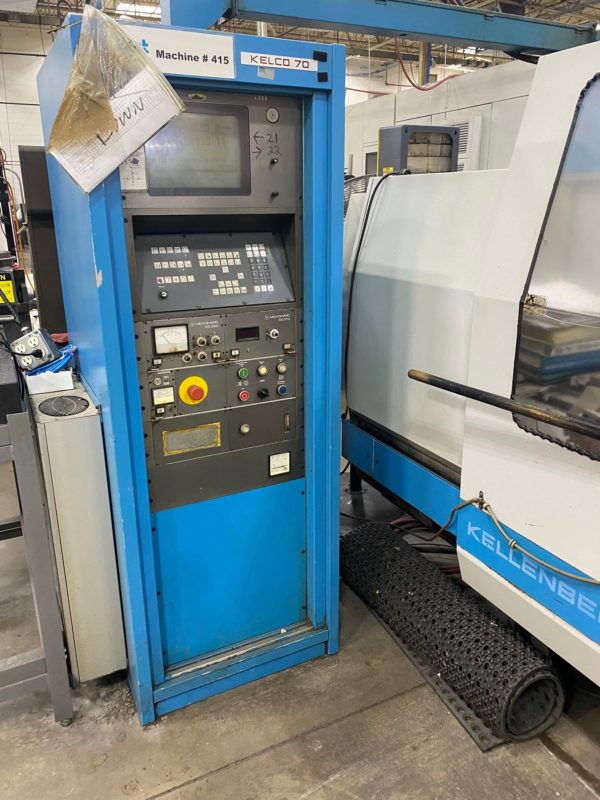

Kellenberger RSM 125 /1000 OD Grinder, 1998.
$11,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Center Height: 4.92โ
Workpiece Diameter Max : 9.8โ
Wheelhead Drive: 7.5KW Optional 9.8 KW
Grinding Wheel RH: 16โ x 3โ
Peripheral Speed Max: 6890 SFPM Optional 8860
Universal Swiveling Wheel Head (Manual Swivel)
Compound Slide (Z Axis) Max Slide Travel: 25.5โ
Compound Slide (Z Axis) Max Speed: 472 IMP
Grinding Slide (X Axis) Max Travel: 12.6โ
Grinding Slide (X Axis) Max Speed: 236 IPM
Workhead Drive: 3KW
Spindle Speed (Infinitely Variable): 8 to 800 RPM
Spindle Nose: 5/MT 5
Spindle Bore: 1.496โ
Max Weight of Workpiece Grinding Between Centers: 220 Lbs.
Permissible Load: 74 Ft-Lb.
Tailstock: MK4
Lift of Tailstock Sleeve: 2โ
Dimensions: 98โ Wide x 79โ Deep 71โ Tall
Weight: 14,000 lbs.
