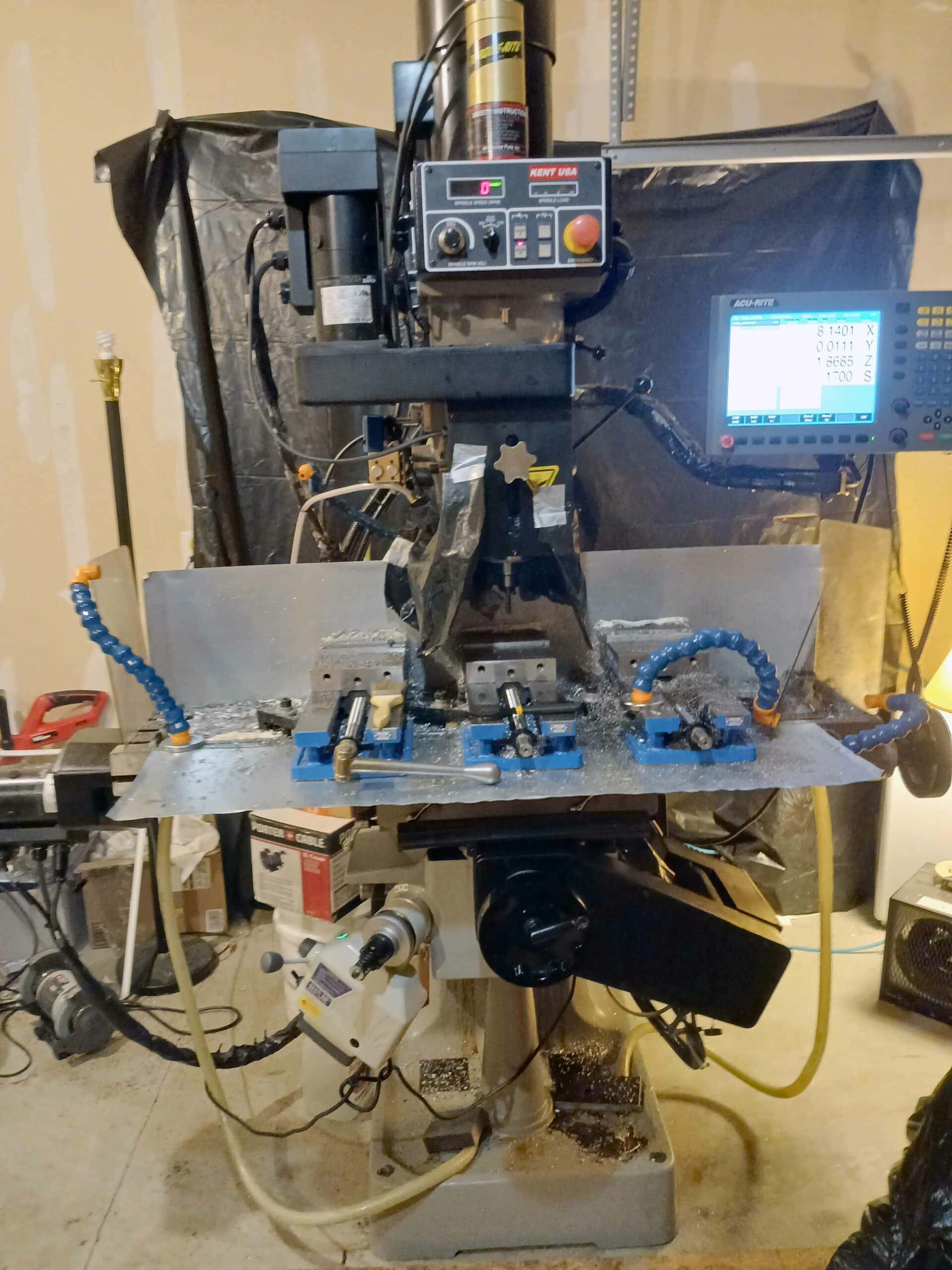

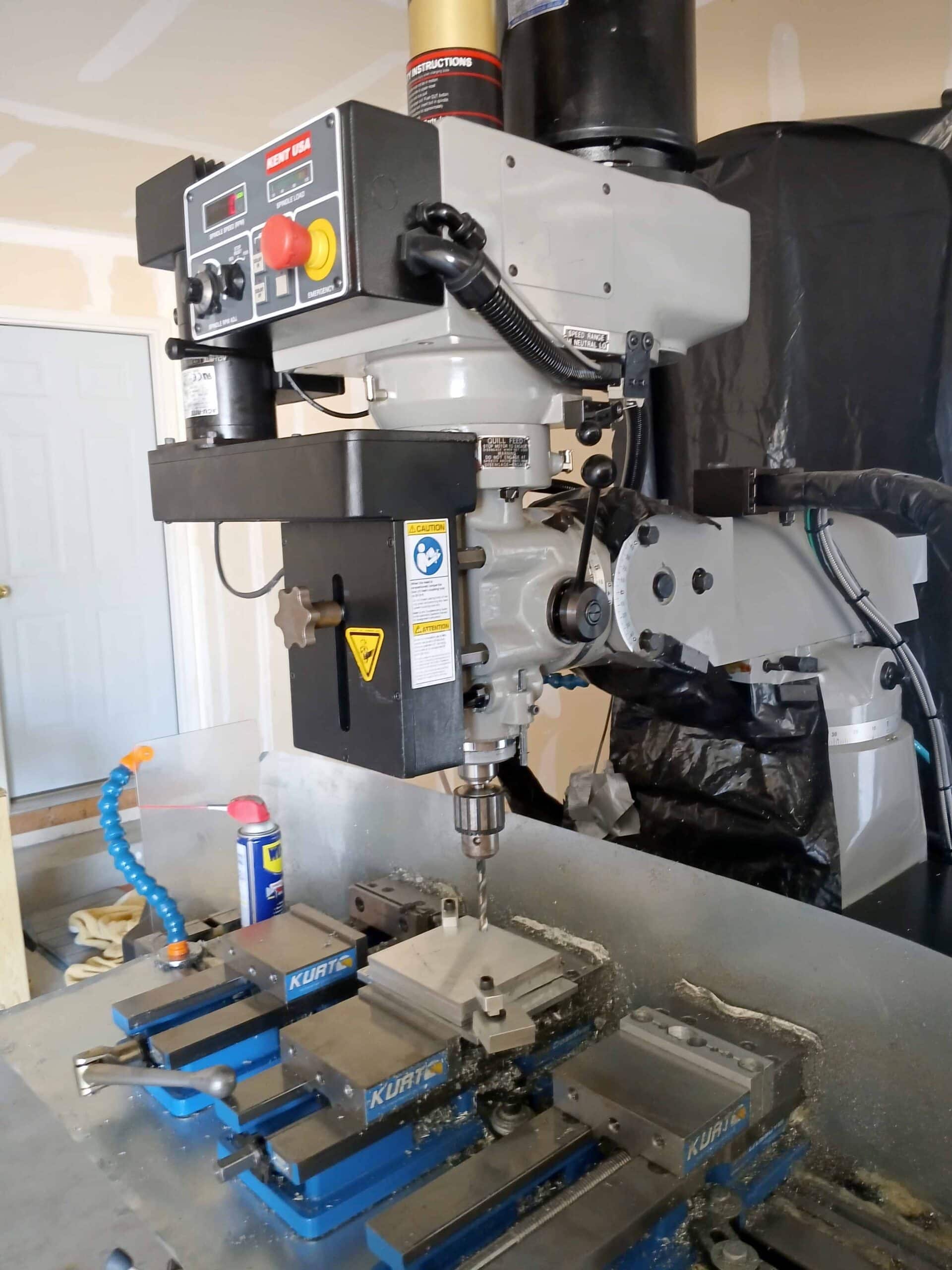

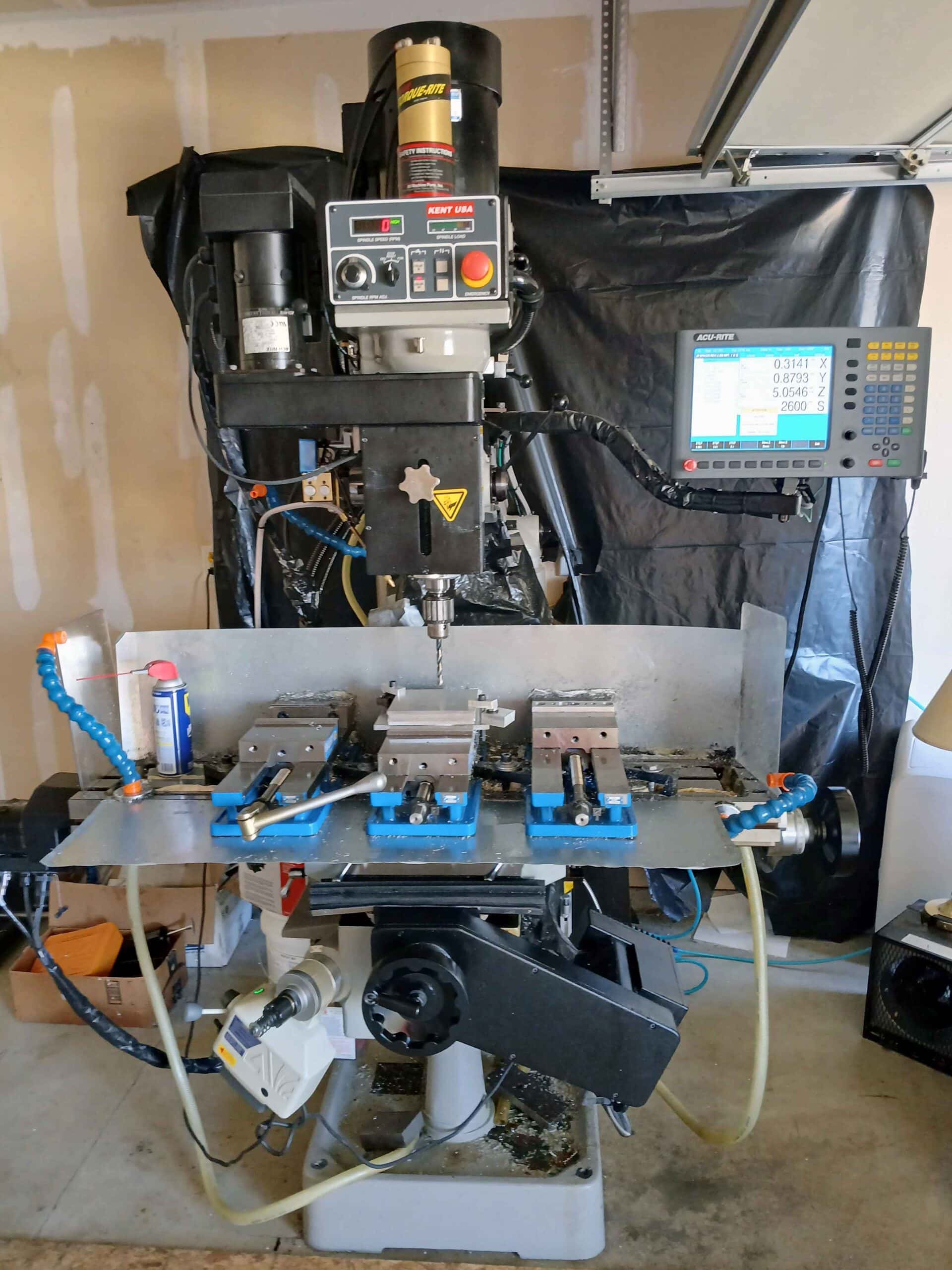

Kent KTM-3VSF 3-Axis CNC Knee Mill, 2019- Tool Holders, Acu-Rite CNC, Conversational, G-Code
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 9โณ x 42โณ
Table Height Above Floor: 47.25โณ
X-Axis Travel: 30โณ
Y-Axis Travel: 12โณ
Z-Axis-
Knee (Manual) Travel: 16โณ
Ram Travel: 12โณ
Quill Travel: 5โณ
Spindle Speed: 60 โ 4,500 RPM
Spindle Power: 3 HP
Throat Distance: 6โณ โ 23โณ
Min Table to Spindle Nose Gage Line: 2.5โณ
Max Workpiece Weight: 750 lbs
Electrics: 220 V; Single Phase (15 Amp)
or 220 V; 3 Ph (10 Amp)
Approx Floor Area: 120โณ x 84โณ x 83โณ
Approx Weight: 2,000 lbs
EQUIPPED WITH:

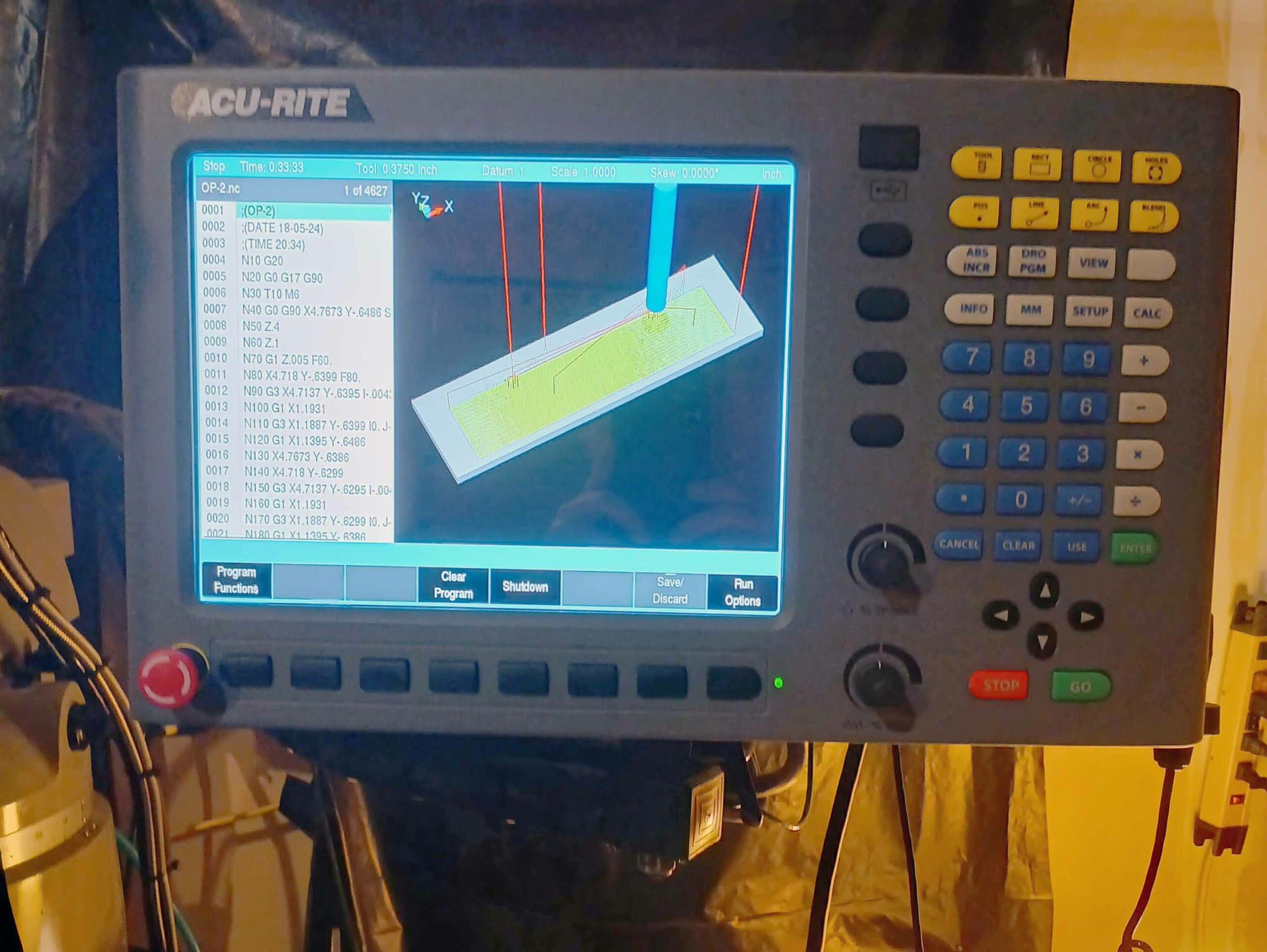

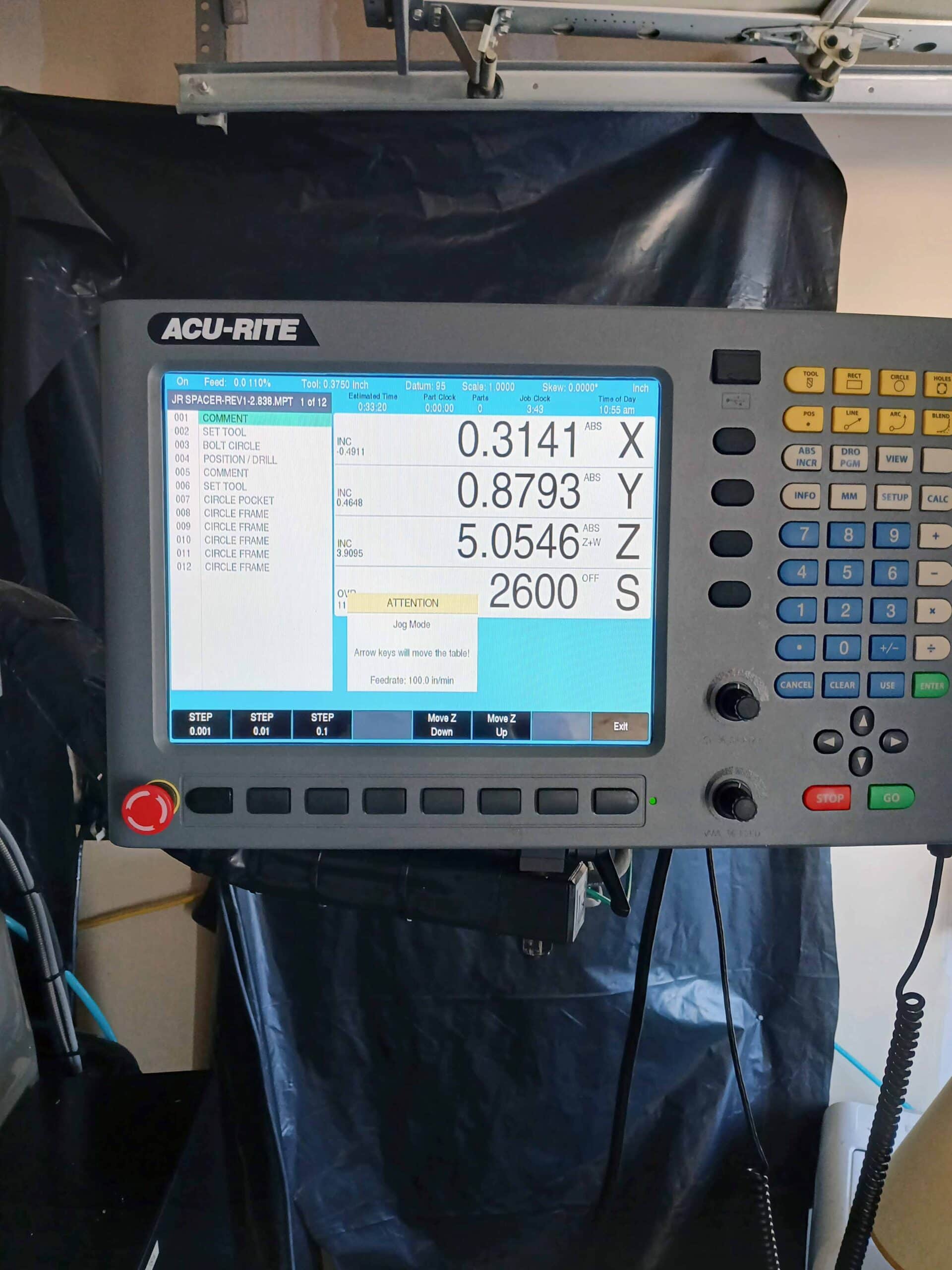

Acu-Rite MILLPWR G2 CNC Control

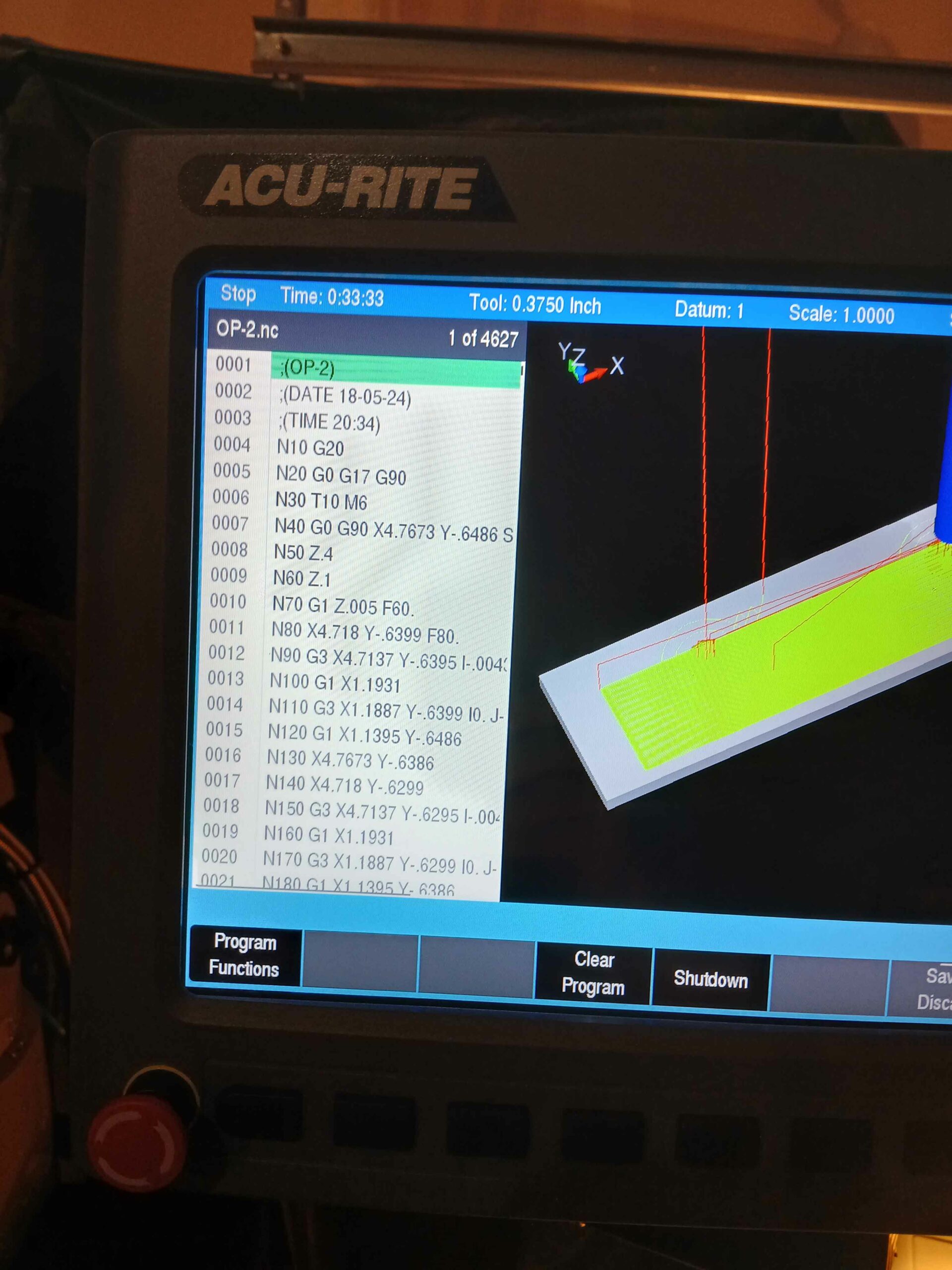

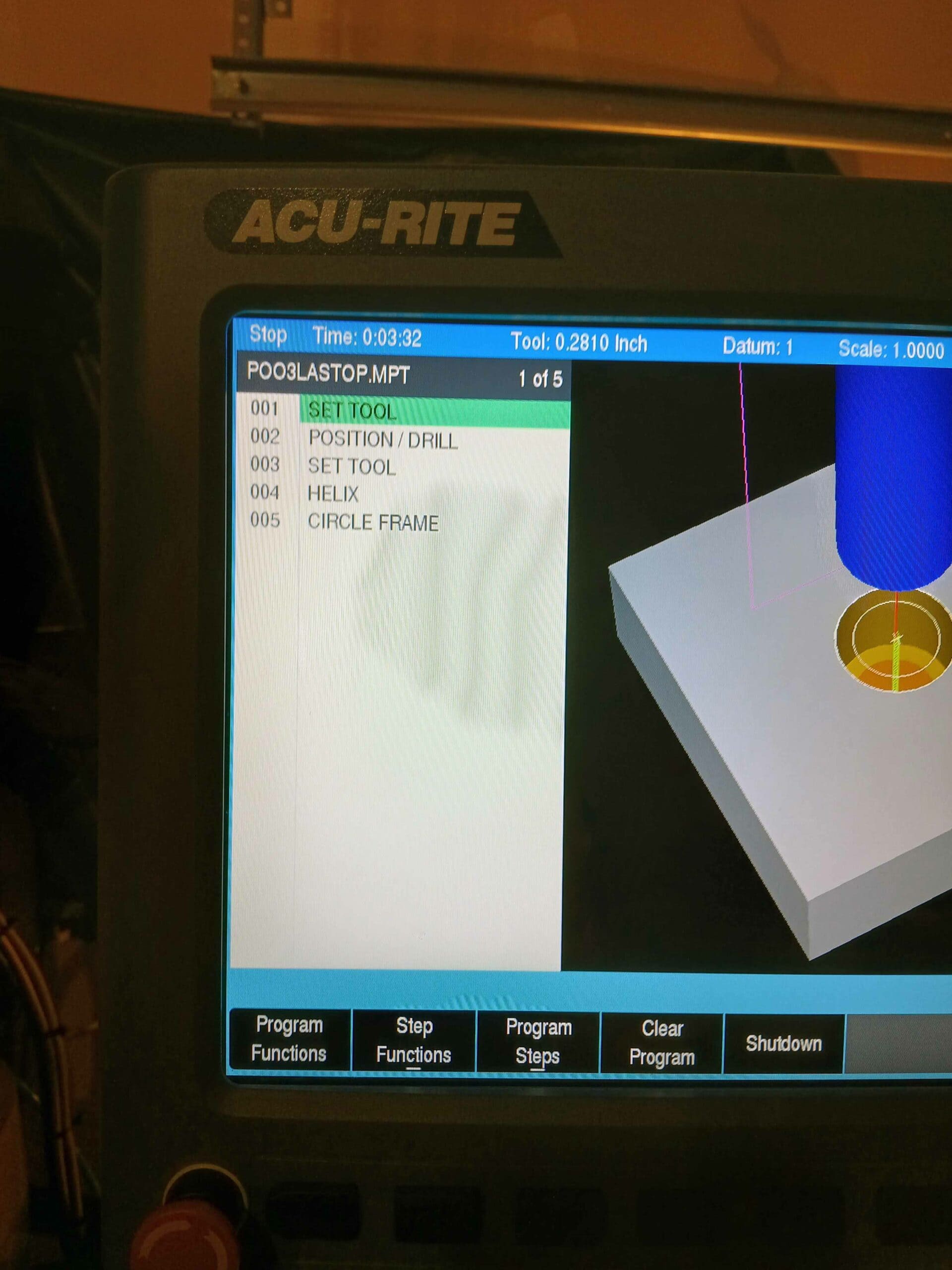

Conversational Control, G-Code
Glass Scales
Air Draw Bar
Power Knee Z-Axis Feed
Single Phase or 3-Phase Capable AC Voltage
Sold with Available Tool Holders
