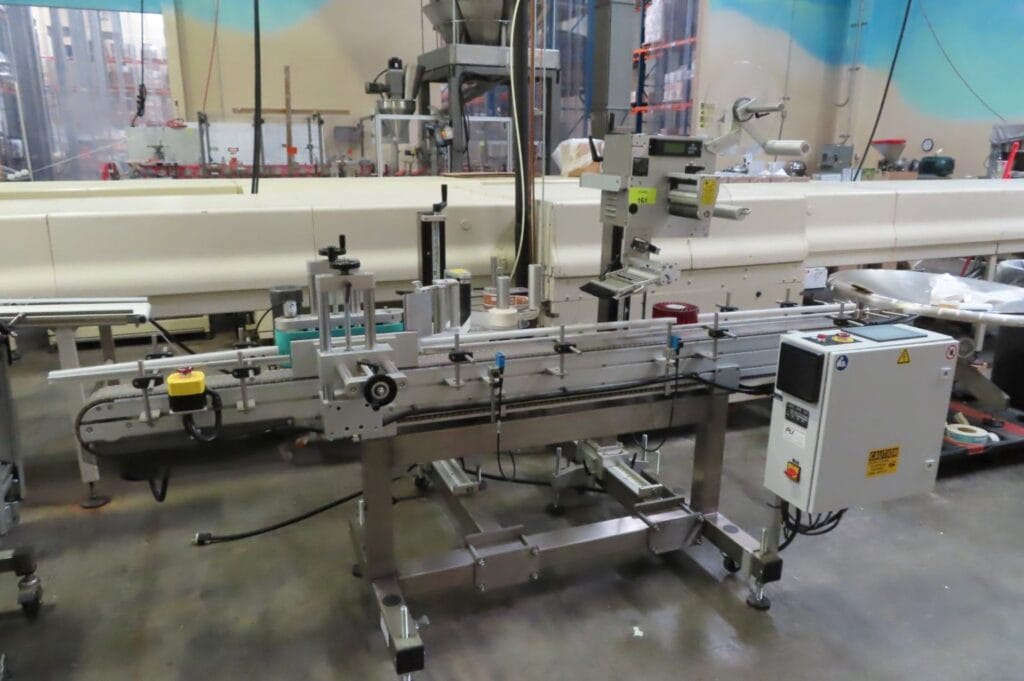

Label-Aire Inc 3015ND-1000 6″ 12″ LH Wraparound and Top Labeler, 2023

Label-Aire Inc 3015ND-1000 6″ 12″ LH Wraparound and Top Labeler, 2023:

– Previously applying a round label on top and wrapping a label around a 4″ diameter container

Label-Aire 6000TS 4.5″ x 8FT 3015ND conveyor:
– Width 4.5″ (inches)
– Length 8′ (feet)

(2) Label-Aire 3015ND-1000 6″ 12″ LH
– (1) applying wraparound labels
– (1) applying top labels

Standard label dimensions:
– Maximum web width: 6″ (152 mm)
– Minimum web width: 1″ (25 mm)
– Maximum label length: 20″ (508 mm)
– Minimum label length: .5″ (13 mm)

Label packaging:
– 12″ (305 mm) O.D. rolls standard on 3″ diameter I.D. cores

Dispensing speed: up to 1,000″ (25.4 m) of web per minute

Label accuracy: up to +/- 1/32″ (.8 mm)

Air requirements: 2 cfm at 60 psi to 90 psi

Comes with manuals and Elec. Prints

3015-ND Wipe-On Features

– User-friendly control panel
Multi-functional and easy to use to reduce set up time.

– Stepper motor drive
For precise starting / stopping, increased reliability, wider range speed variability, and lower maintenance.

– Microprocessor controlled
Repeatable settings and constant monitoring ensures reliable operation.

– Automatic Speed Following (ASF)
Labels are accurately applied even through extreme changes in product line speed.
6″ (152.4 mm) configuration
To handle a wide range of label sizes.

– Added versatility
Applies labels to the top, side, or bottom of products.

– Wipe-on applicator
Label dispense accuracy up to ± .8 mm (1/32″).
Configuration

– Easy conversion to left – or right-hand use.
