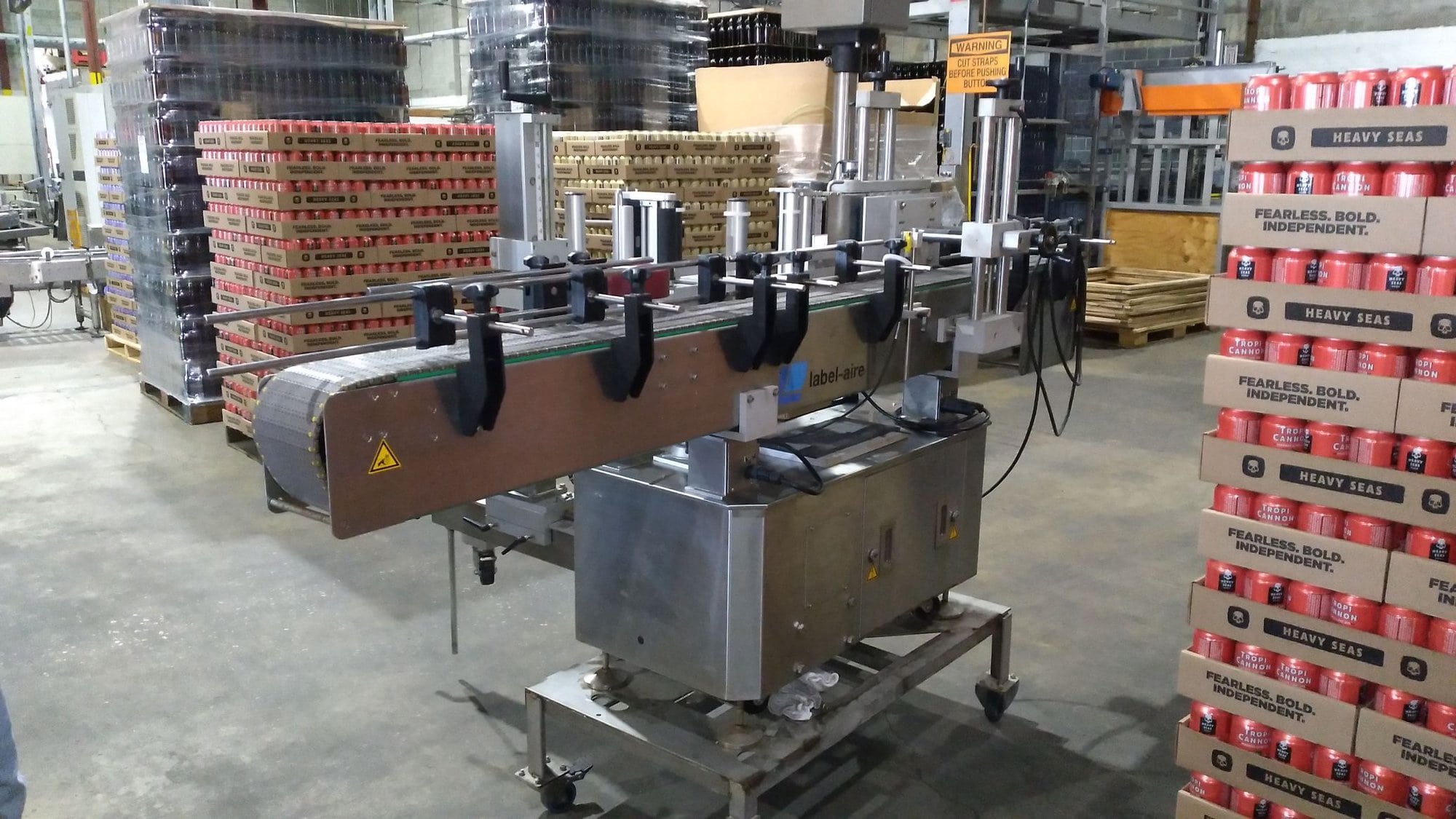

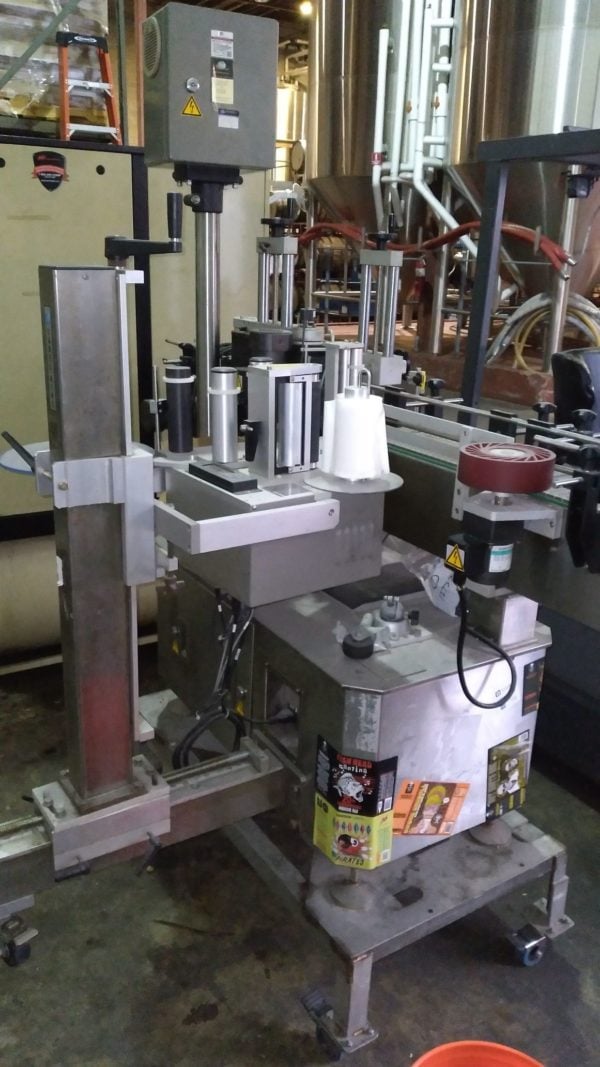

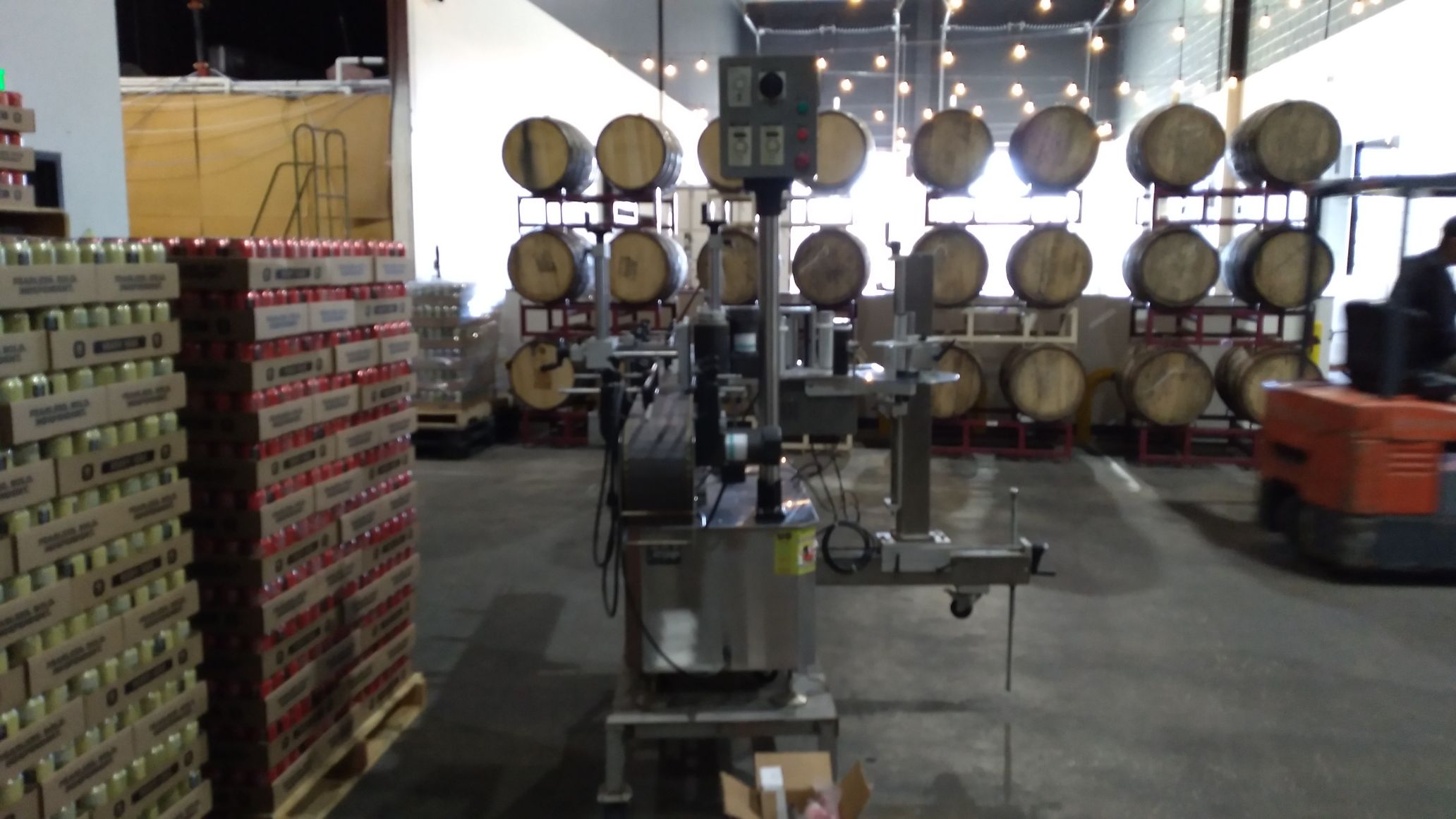

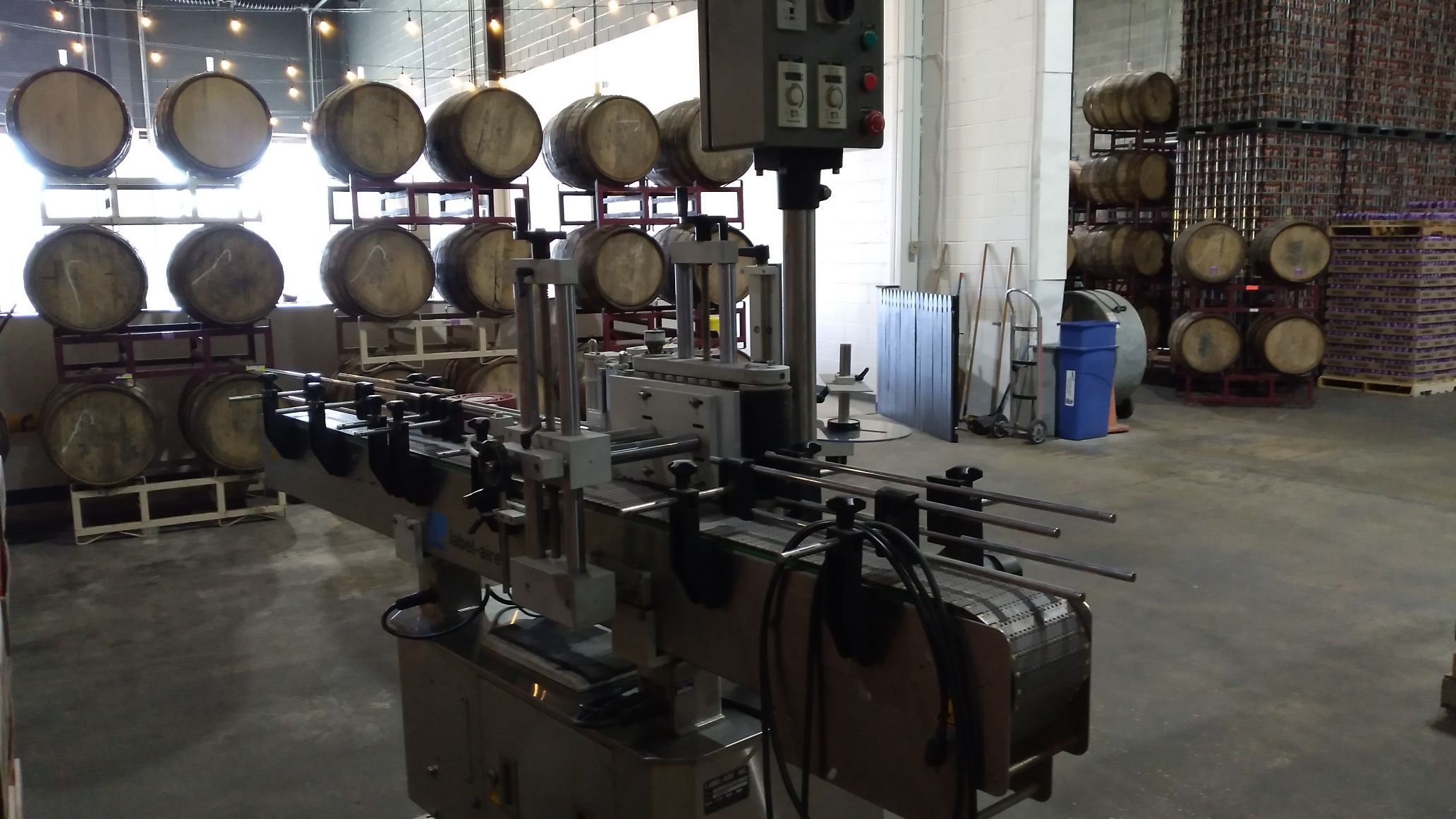

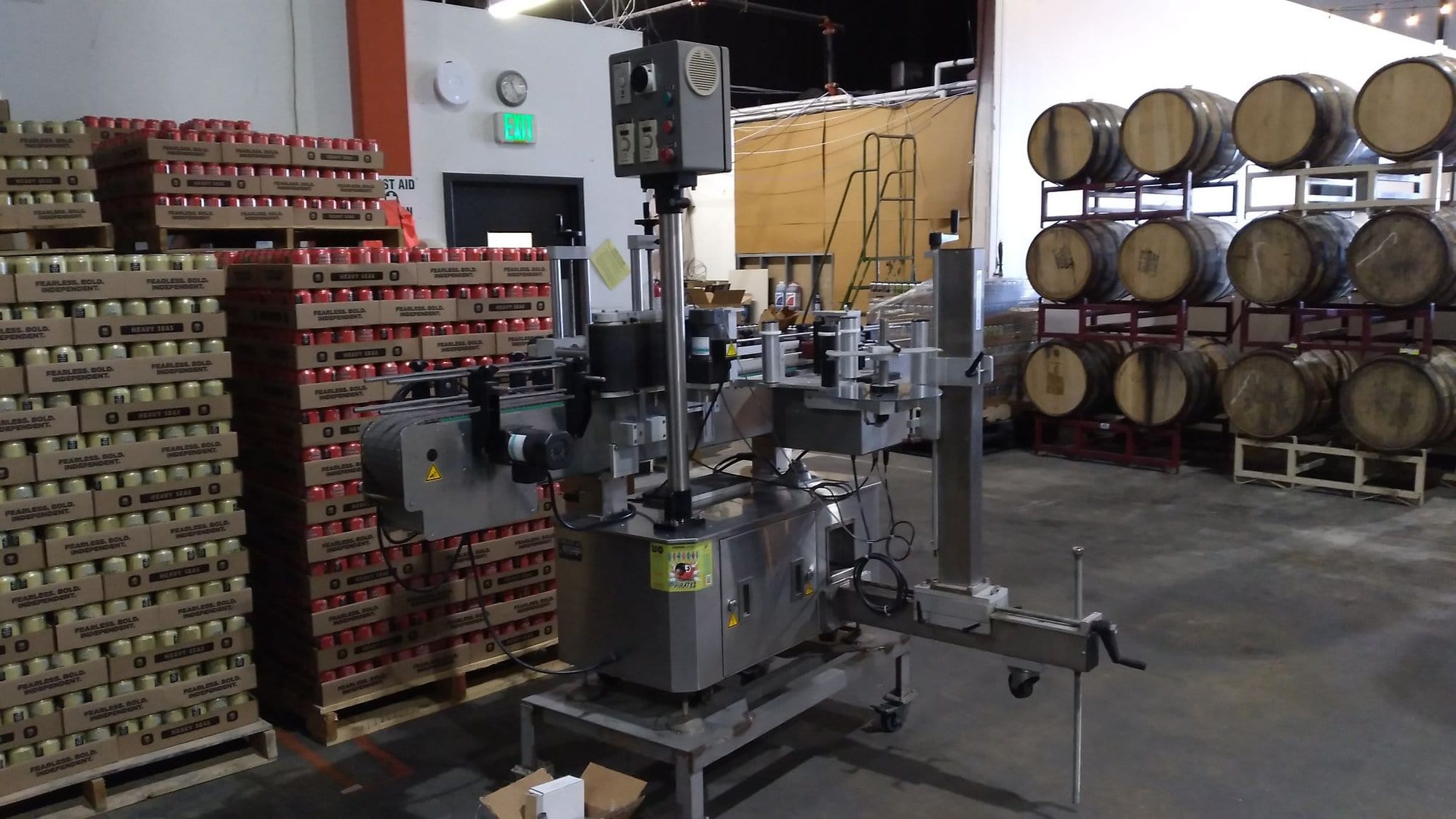

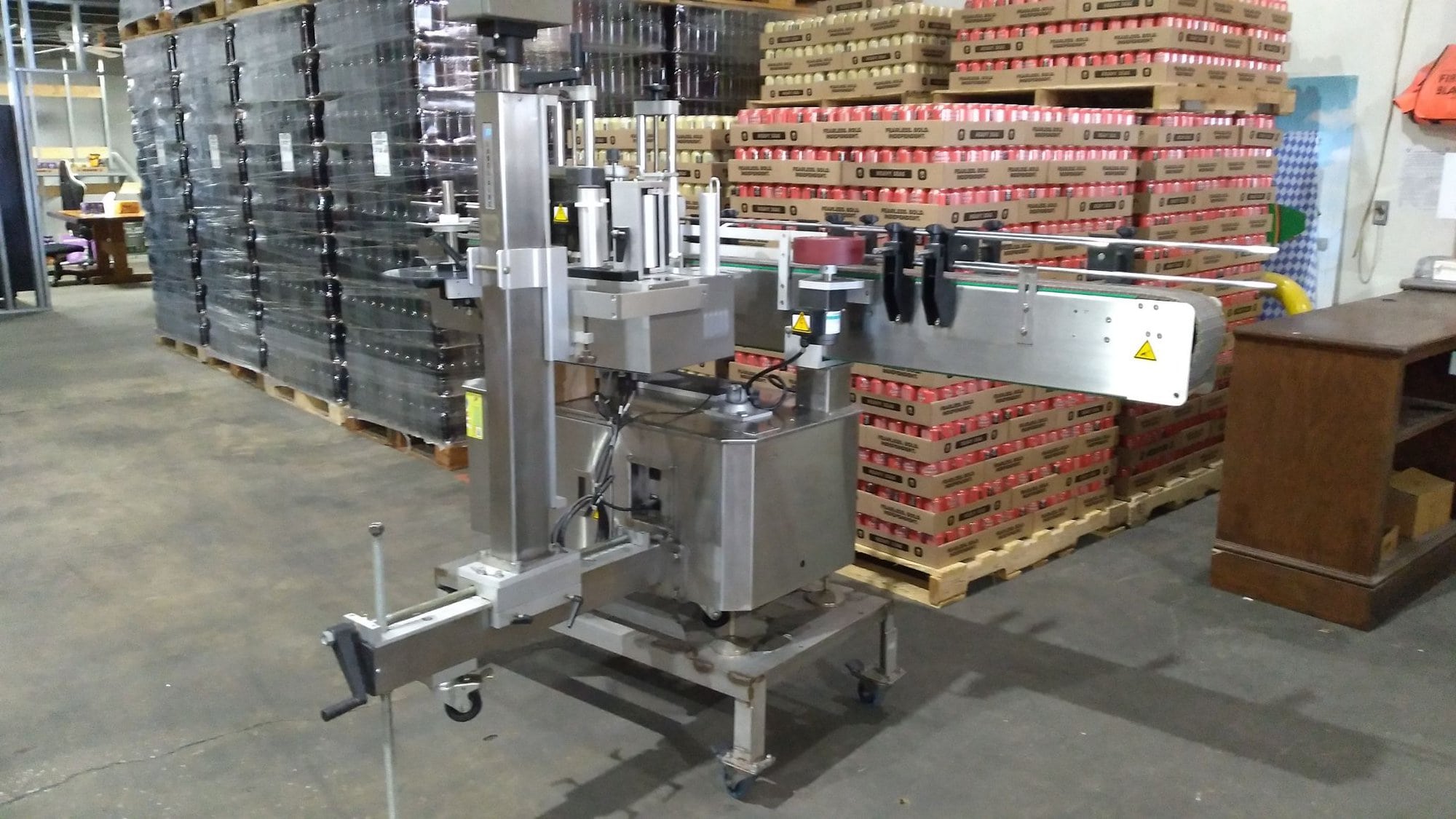

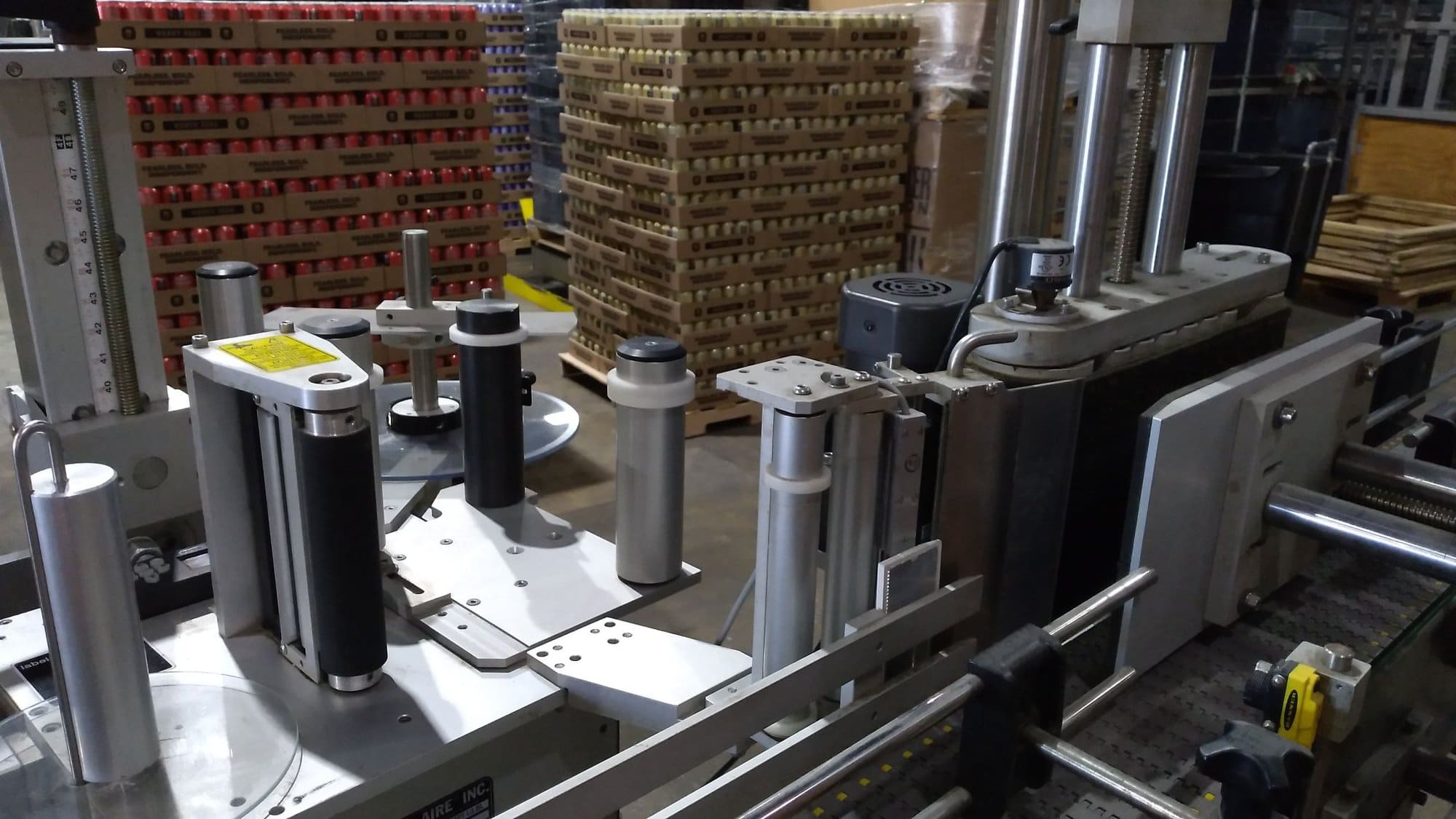

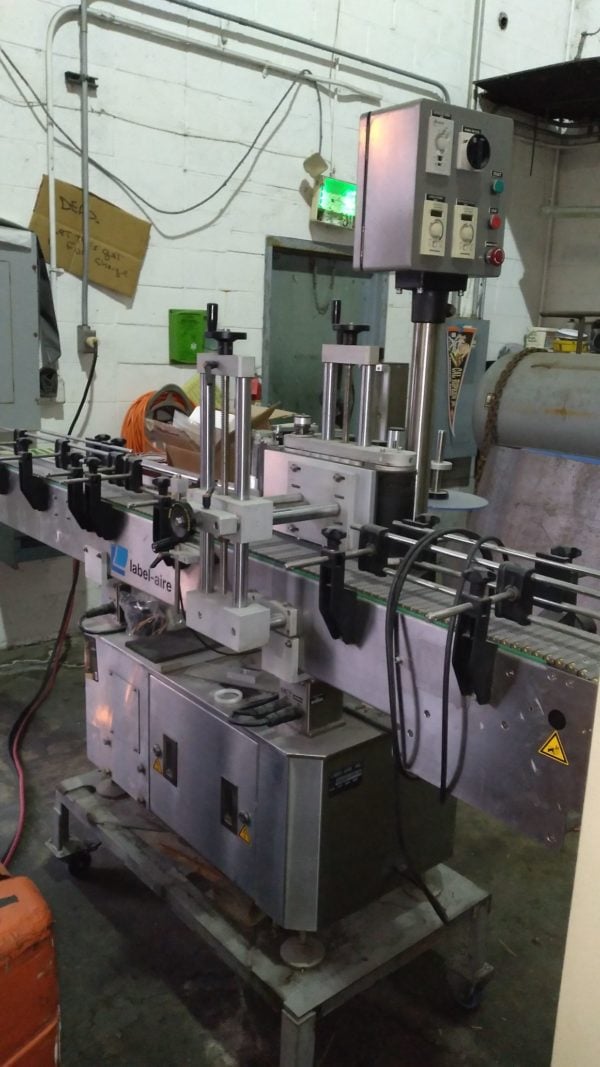

Label-Aire Inline 5100 Series Pressure Sensitive Labeler, 2021

Dimensions
– Height: 69.86″ (1,774.53 mm)
– Length: 78.80″ (2,001.61 mm)
– Width: 55.95″ (1,421.06 mm)
– Weight: Approx. 1,050 lbs. (475 kg)

Standard Label Dimensions:
– Max. Web Width: 5″ (127 mm)
– Min. Web Width: .63″ (16 mm)
– Min. Label Length: .5″ (13 mm)

– Label Packaging: 16″ (406.4 mm) O.D. rolls std. on 3″ (76 mm) I.D. cores
– Conveyor Speed: Up to 1,000″ (24.4 m) per minute
with Variable Frequency Drive (VFD)
– Label Dispense Accuracy: Up to +/- 1/32″ (.8 mm)

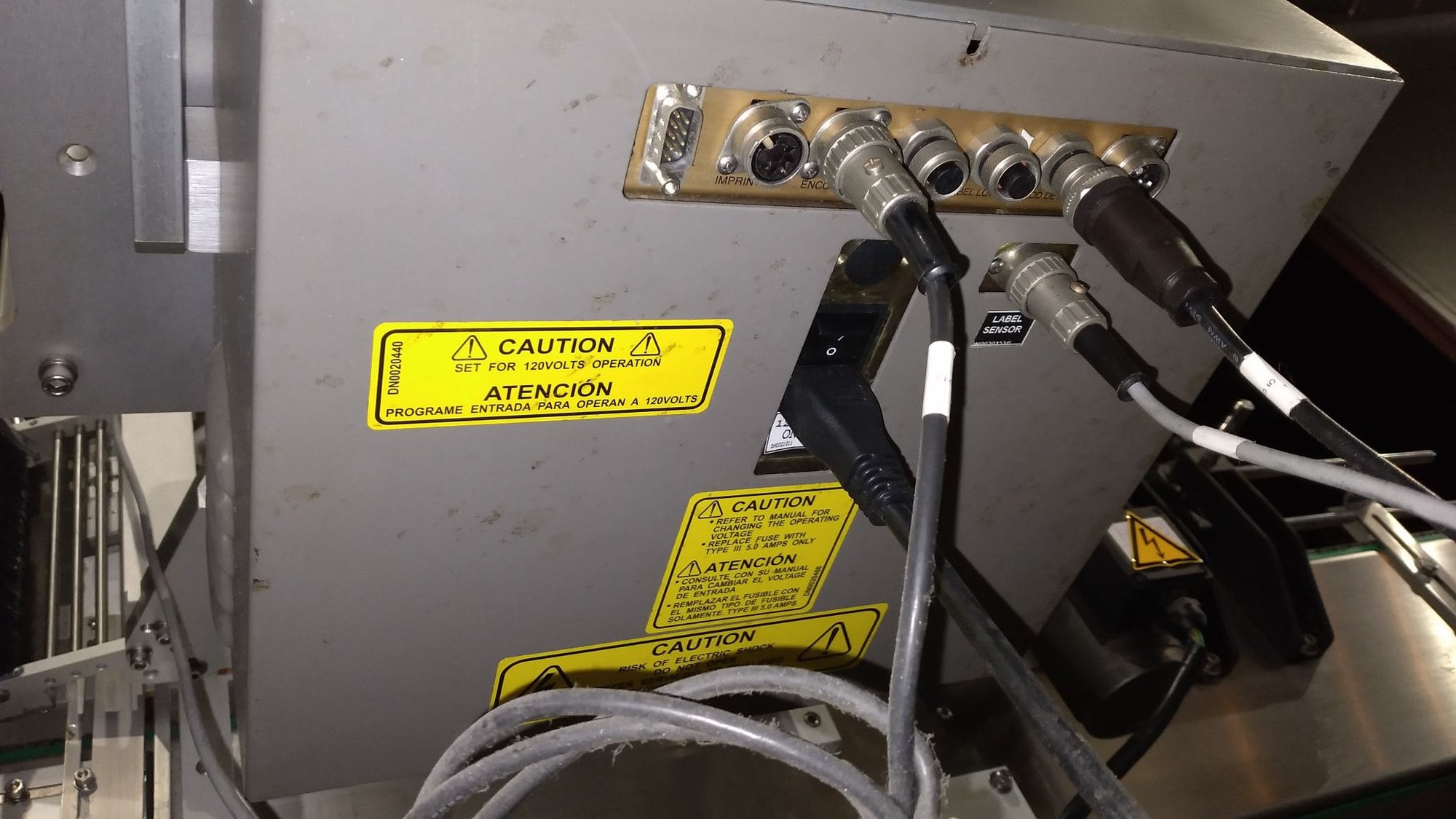

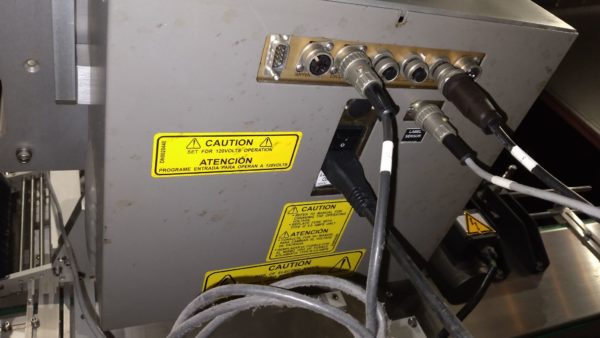

– Electrical: 120 Volts AC 60 Hz 20 Amps.
– Air: 2 cfm at 60 psi to 90 psi required with imprinter option

– Main Drive: Variable Frequency Drive (VFD)
– Line Speed: up to 1,000″ (24.4 m) per minute
– Construction: Stainless Steel
Conveyor:
– Width: 6.0″ (152.4 mm)
– Length: 8′ (2,438.98 mm) center line-to-center line
– Height: 36″ (914.4 mm) ± 2″ (50.8 mm)

– Static Eliminator: Ionizer to eliminate static build up from film labels
– Operator Interface: HMI Color Touch Screen
Push Button Start/Stop for Conveyor
– Metering Wheel: Single
– Drive: VFD
– Wrap Belt: 7.0″ (177.8 mm) Wide x 12.0″ (304
