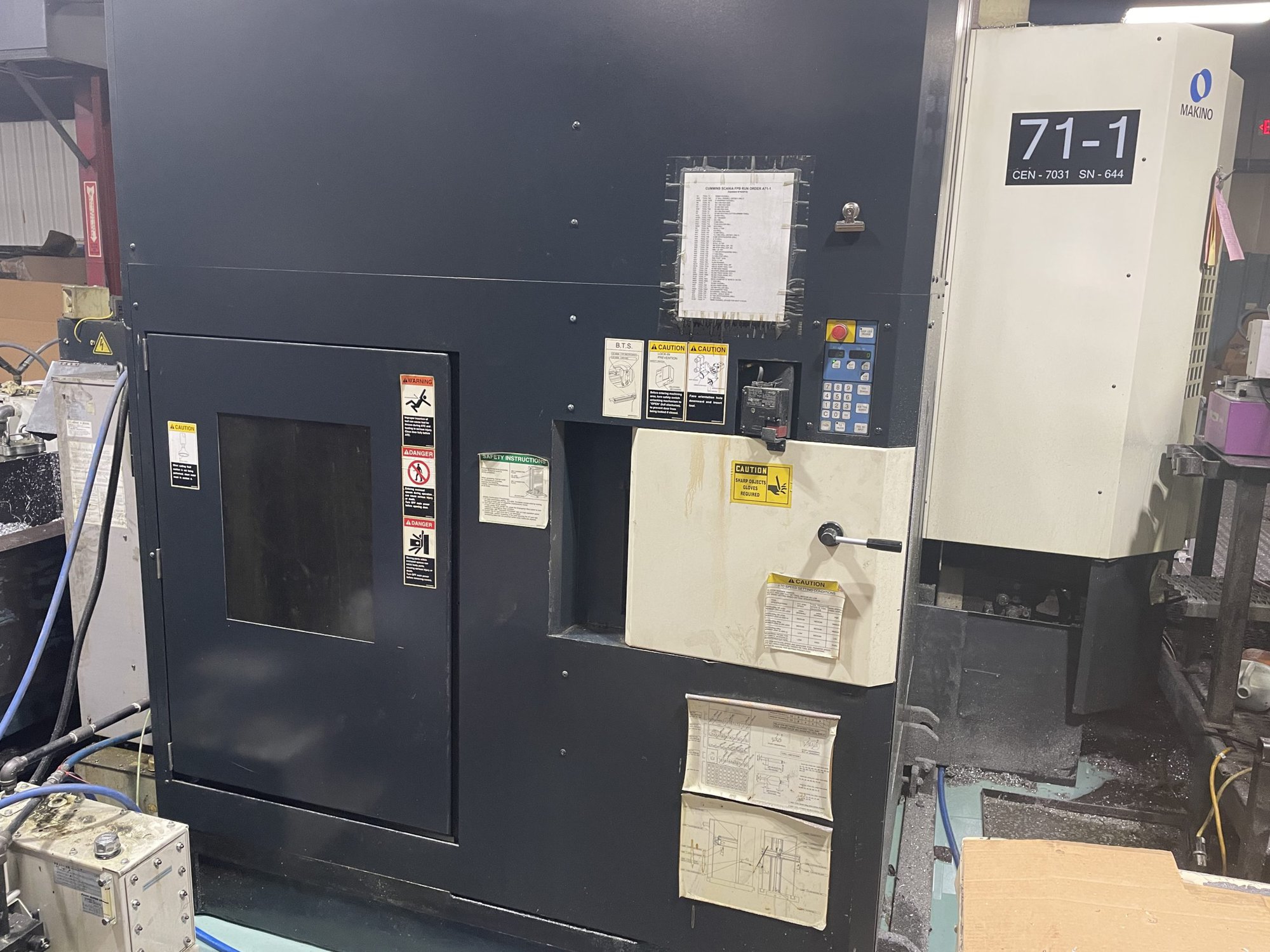

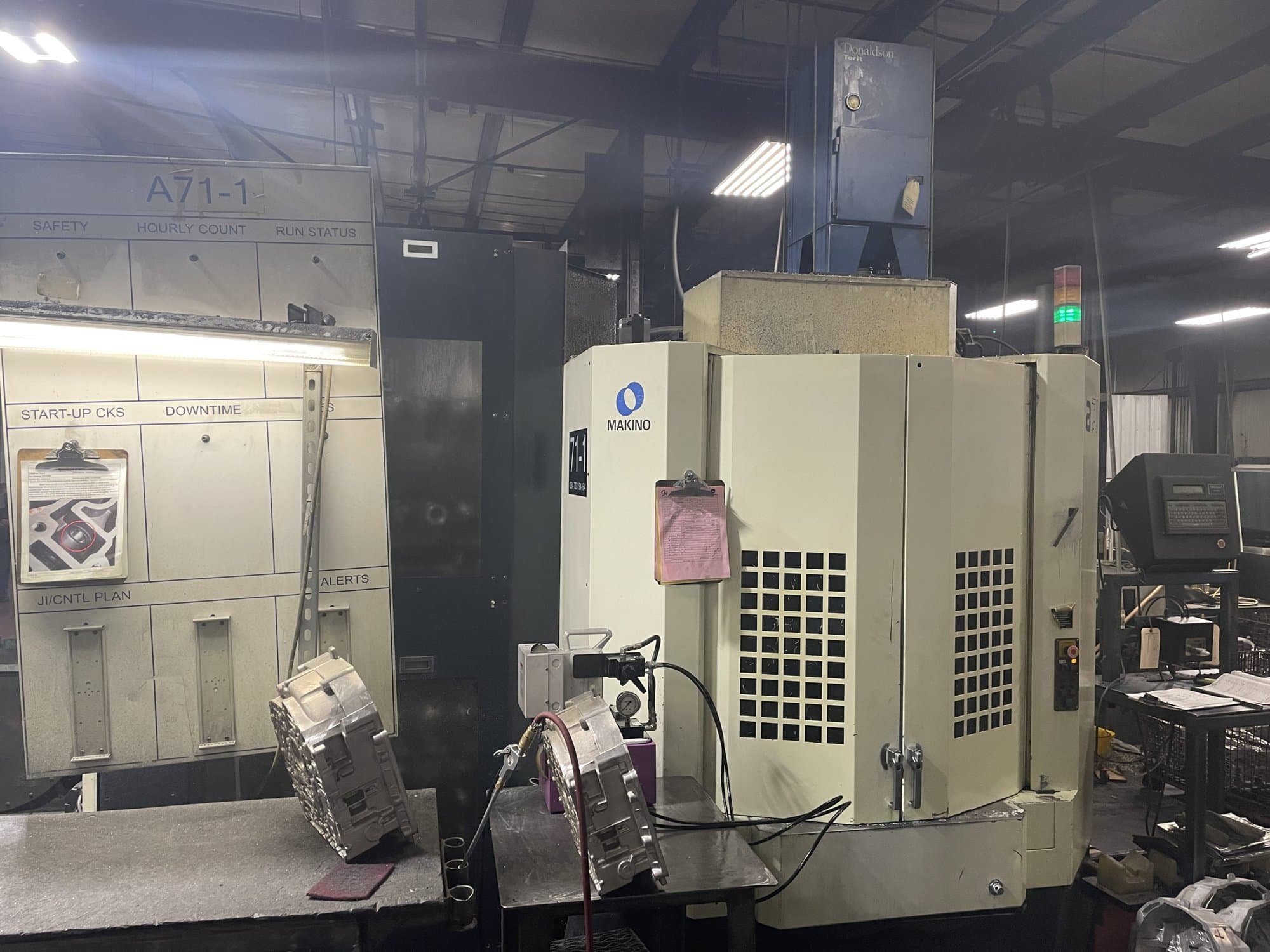

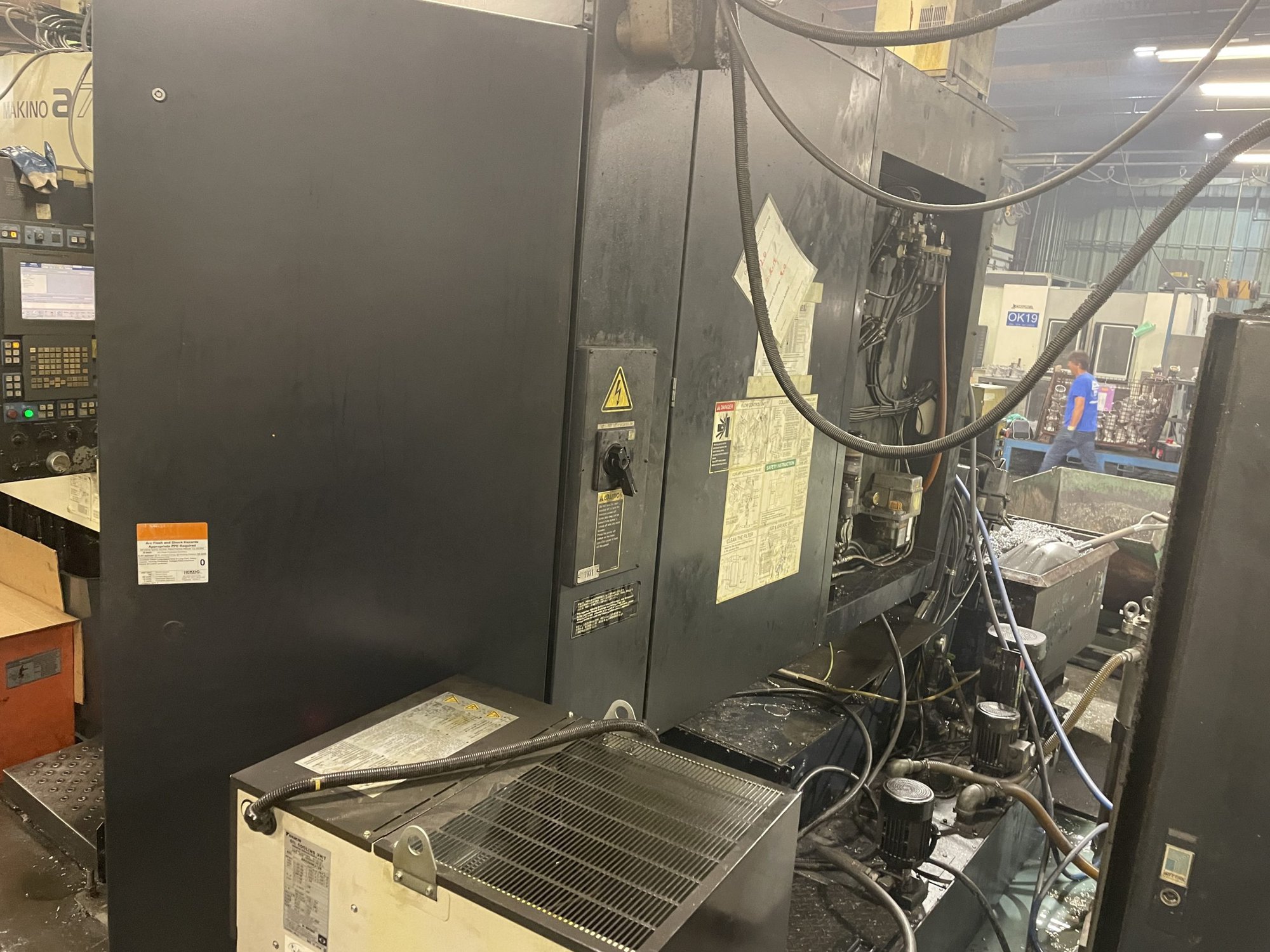

Makino A71 500mm HMC, 2009 – Full 4th Axis, Hi Pressure TSC, Live Hydraulics
Request a Quote to Instantly See Pricing
Horizontal Machining Centers
Pallet Size: 19.7” X 19.7”
X-Axis Travel: 28.7”
Y-Axis Travel: 28.7”
Z-Axis Travel: 31.5”
Max. Payload: 1,540 lbs
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
ATC: 60 Tool Magazine
Tool Change Time Tool to Tool: 1.7 sec.
Tool Change Time Chip to Chip: 3.2 sec.
Max. Tool Length: 17.7”
Max. Tool Diameter (w/Adjacent Pockets Empty): 11.8”
Max. Tool Weight: 44 lbs
Cutting Feed Rate: 1969 IPM
Rapid Traverse (X, Y, Z): 1969 IPM
Full 4th Axis
Professional 5 Controller
MP High Pressure Coolant Systems
Thru Spindle Coolant
Probes are Infra Red (IRP)
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
