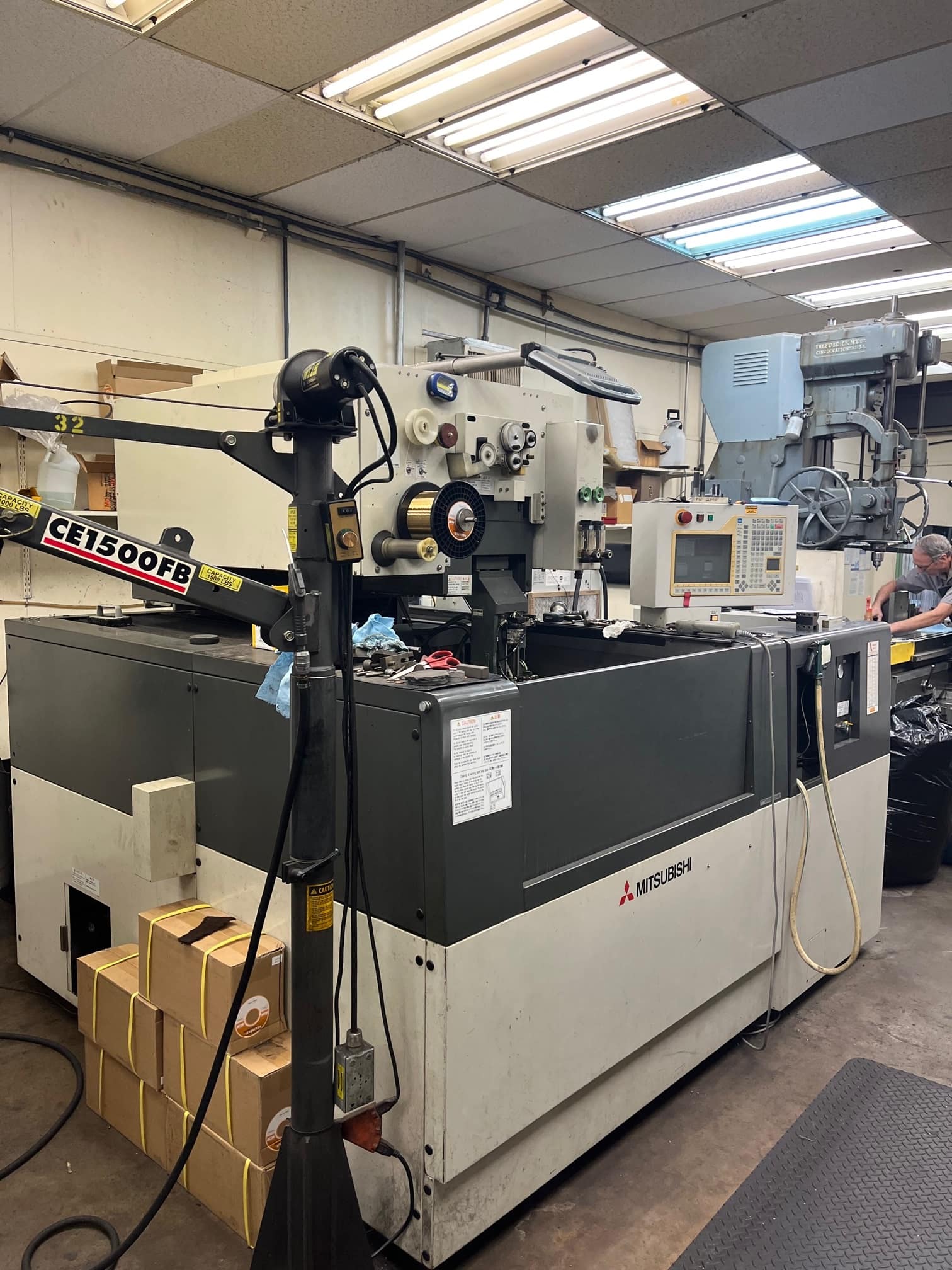

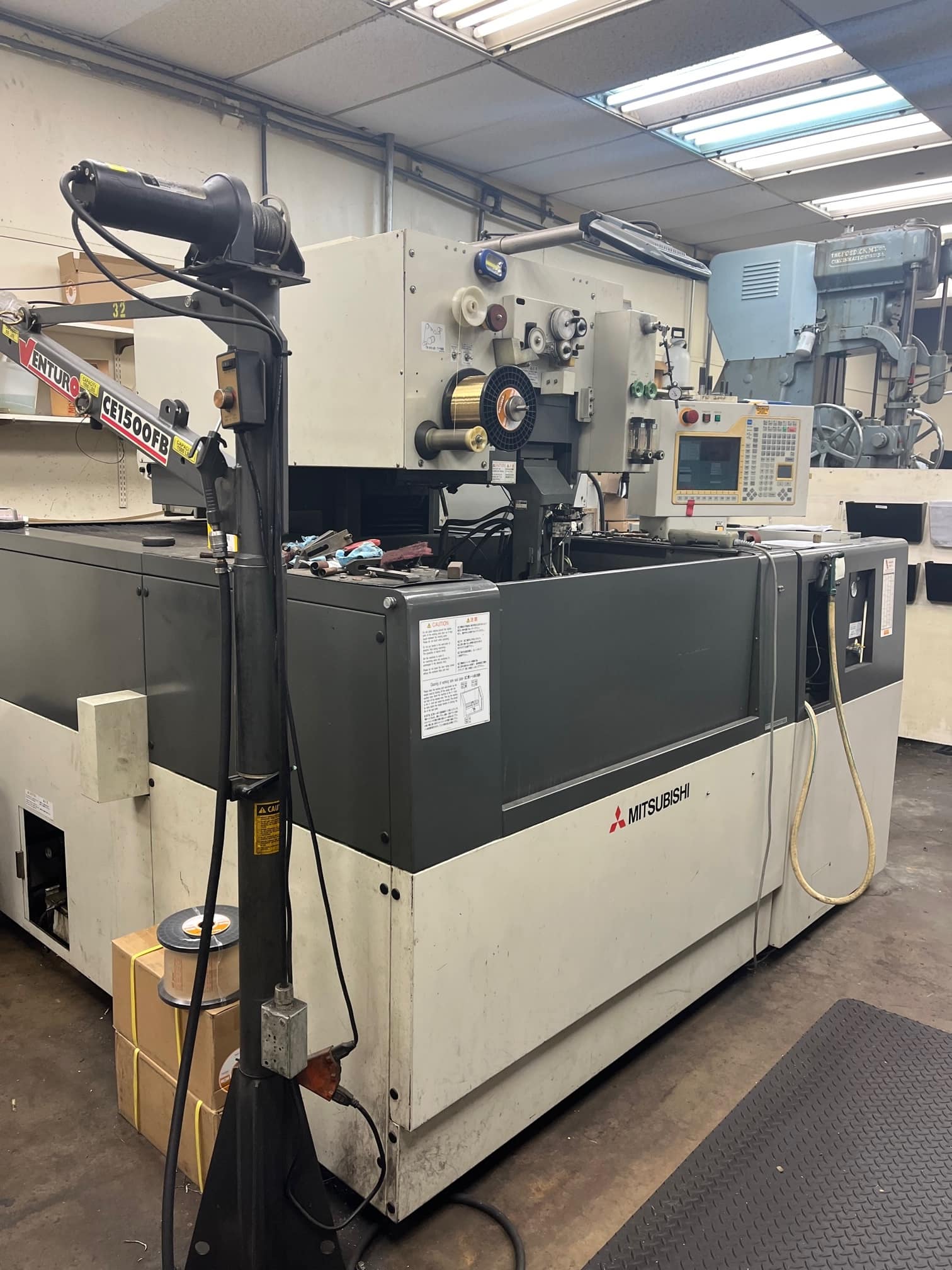

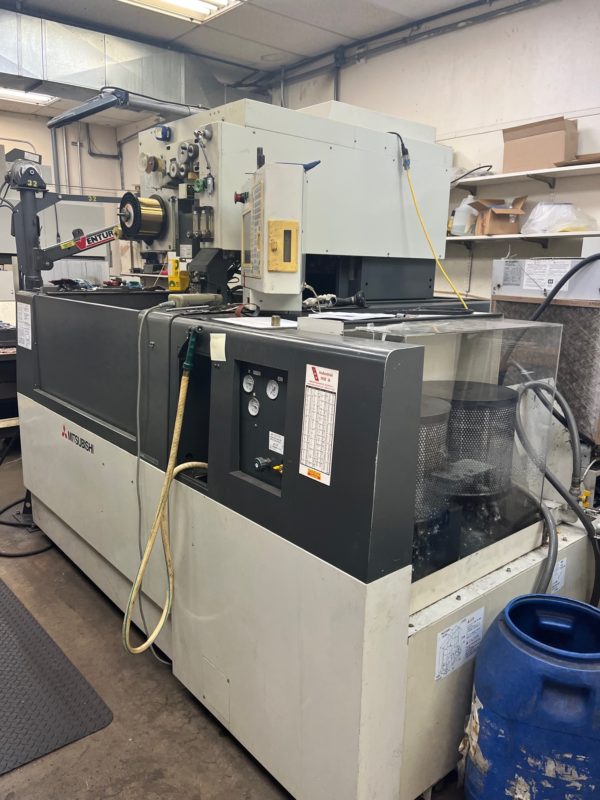

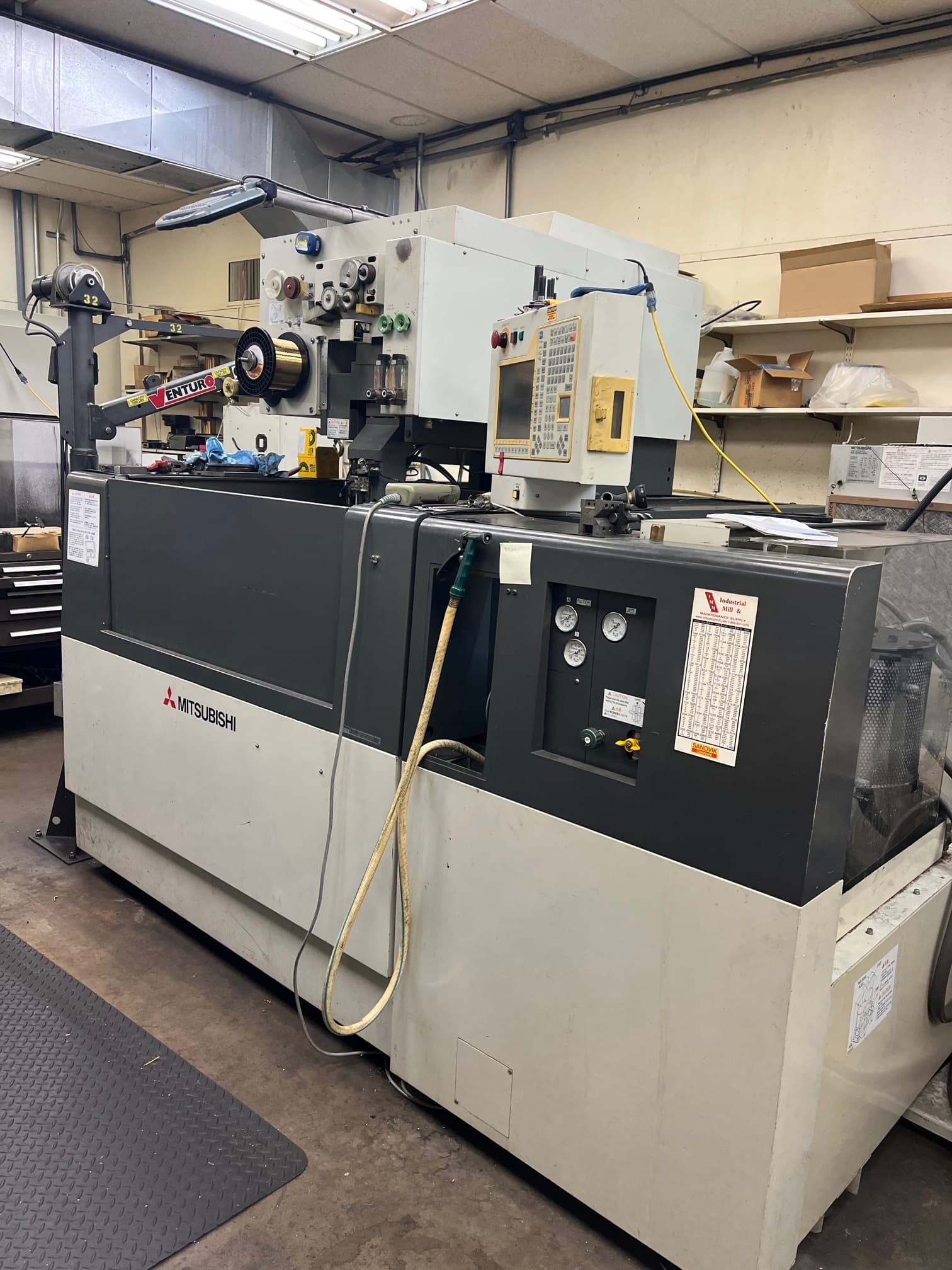

Mitsubishi W21 FA-10 CNC EDM, 2001
$17,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Control: Mitsubishi
X-Axis Travel: 13.8โณ
Max Wire Spool Size: 22 Lbs.
Min Hole Diameter For Autothread: .020โณ
Wire Guides Included: .010โณ
Wire Diameter Range Capability: 0.006โณ- 0.012โณ
Machining Stroke ( U X V): 1.25โณ X 1.25โณ
Max Workpiece Weight: 1,105 Lbs.
Max Workpiece Size: 31.5โณ X 23.6โณ X 8.5โณ
Table Size: 23.2โณ X 20.2โณ
Z-Axis Travel: 8.6โณ
Y-Axis Travel: 9.8โณ
Filter Tank Capacity: 116 Gal
