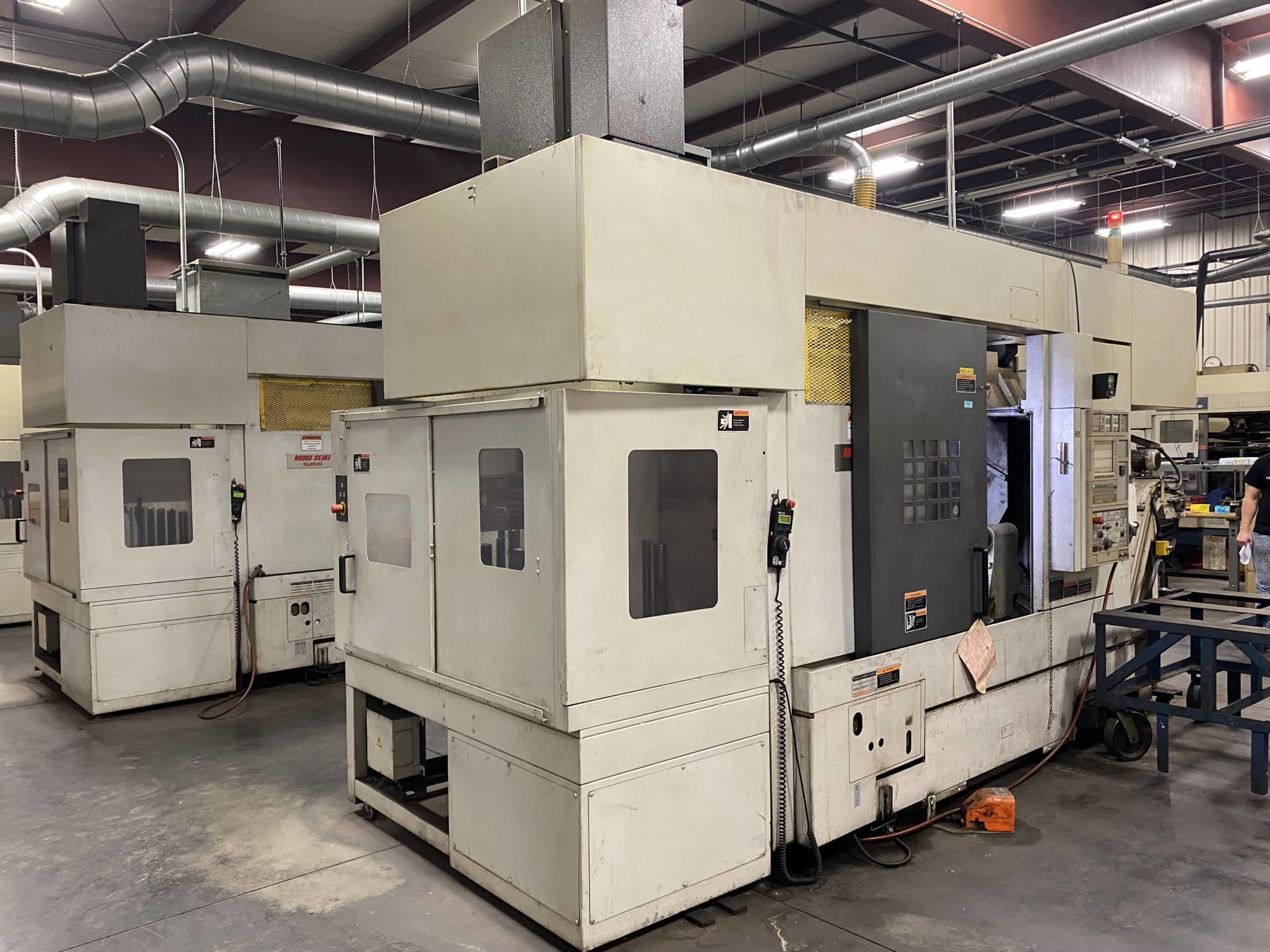

Mori Seiki NL2500MC/700 CNC Lathe, 2011- live tooling, mist blaster, chip blaster, work stocker, gantry loader, available immediately


Request a Quote to Instantly See Pricing

Machine Type: CNC Lathes
Make: Mori Seiki
Model: NL2500MC/700
Year: 2011
Machine Location:
Stock #:

Swing: 36.4″
Swing Over Cross Slide: 29.7″
Turning Diameter: 14″
Center Distance: 27.7″
Chuck Size: 10″
Bar Capacity: 3.1″
X Axis Travel: 10.2″
Z Axis Travel: 31.3″
C Axis Index: 0.001°
Rapid Traverse (X/Z): 1,181 Ipm
Spindle Nose: A2-8
Spindle Speed (Rpm): 4,000
Main Motor: 25 Hp
Live Tooling: Yes
Live Tooling Speed: 6,000 Rpm
Live Tooling Motor: 7.5 Hp
Turret Capacity: 12
Tailstock: Yes
Lathe Dimensions: 122″ X 76″ X 84″
Weight: 13,000 lbs.

Equipped With:
CNC Control: Msx-850-iiii
Work Stocker
Gantry Loader
Mist Blaster
Chip Blaster

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
