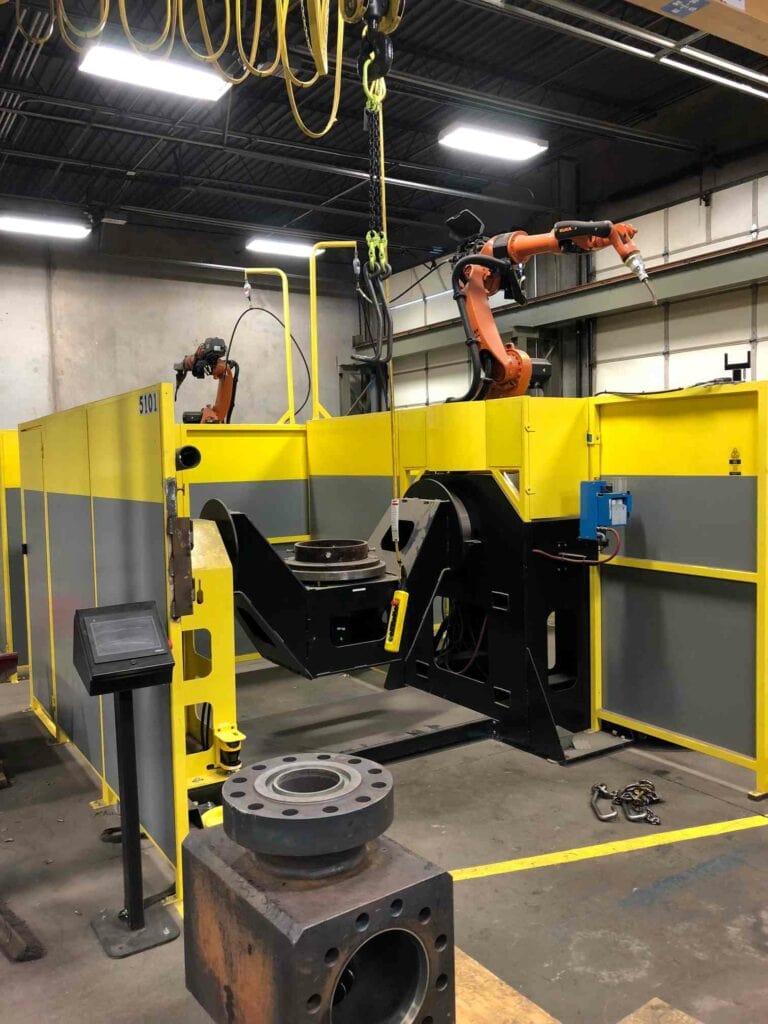

Kuka SL-4-32 x 72-2000 ESAB Swift Arc Robotic Weld Cell, 2015 – Never Used in Production!!

$279,900.00

SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System
SL-4-32 x 72-2000 ESAB Swift Arc Robotic Welding System

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Robotic Welding Cells
Make: ESAB
Model: SL-4-32 x 72-2000
Year: 2015
Machine Location: Upon Request
Stock #: 586751

Swift Arc SL-4-32 x 72-2000
Power Source: Esab Aristo U5000iw
Head/Tailstock: 72″ on Two Sides
Part Swing Diameter: 32″
Capacity: 2,000 lb Per Side
Auxillary Axis: 2
Safety Scanners: 2
Operator Control Panels: 2

Robots:
Kuka KR 16 L8 arc HW : 2
Type Robot Arm
Axes 6
Payload 8.0 kg
Reach 2015 mm
Repeatability 0.05 mm
Weight 238 kg
Controller: KRC4 with Kuka Smartpad

Equipped With:
RT 2000 Torch Reamer
RT Wire Cutter
Through Arc Seam Tracking
Robofeed 3004
Aristo Narrow Gap Torch
Digital Weld Controller

** NEVER PUT INTO PRODUCTION**

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
