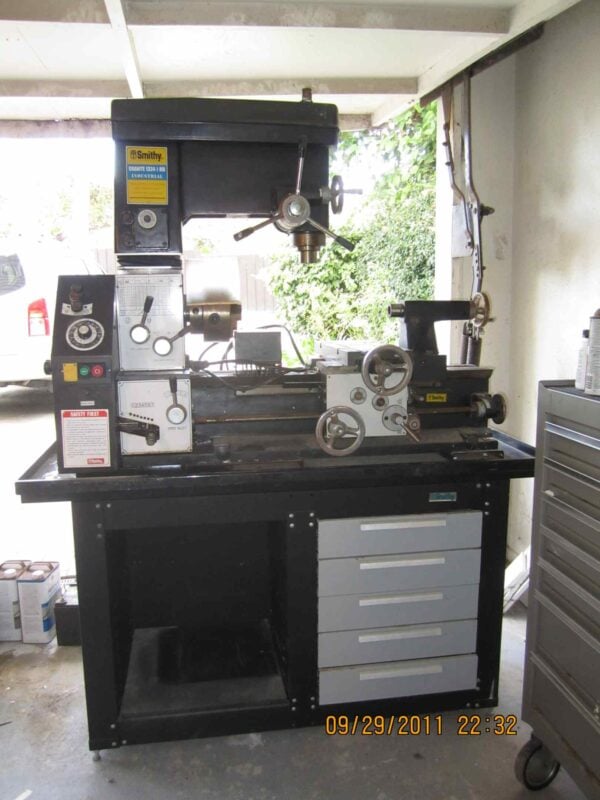

Smithy GN-1324 IMX Bench Top CNC Lathe/Mill/Drill, 2011 – Never Used, Tooling Included, Flashcut CNC Controller
$82.38
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Distance Between Centers: 24″
Headstock Taper: MT4
Lathe Chuck Bore: 1.6″
Lathe Chuck Diameter: 6″
Lathe Chuck Type: 3 Jaw (Self Centering)
Spindle Bore: 1.125″
Spindle Speeds: 0 – 2,800 RPM
Toolbit Size: 1/2″
Mill/Drill Specifications:
X-Axis Travel: 9-1/2″
Y-Axis Travel: 7-5/8″
Z-Axis Head Travel: 4-3/8″
Drill Chuck Size : 5/8″
Spindle Speeds: 0 – 2,800 RPM
Spindle Taper: R-8
Amps: 15
Horse Power: 1.5
Motor Type: D/C
Phase: Single
Volts: 110 VAC
Table Size: 6-3/4″ x 17-3/4″
T Slot Size: 7/16″
Approx. Dimensions: 46″ x 22.5″ x 39″
Approx. Weight: 800 lbs.
EQUIPPED WITH:
Millhead
Tailstock
Powerhead
Carriage Assembly
Bench Top

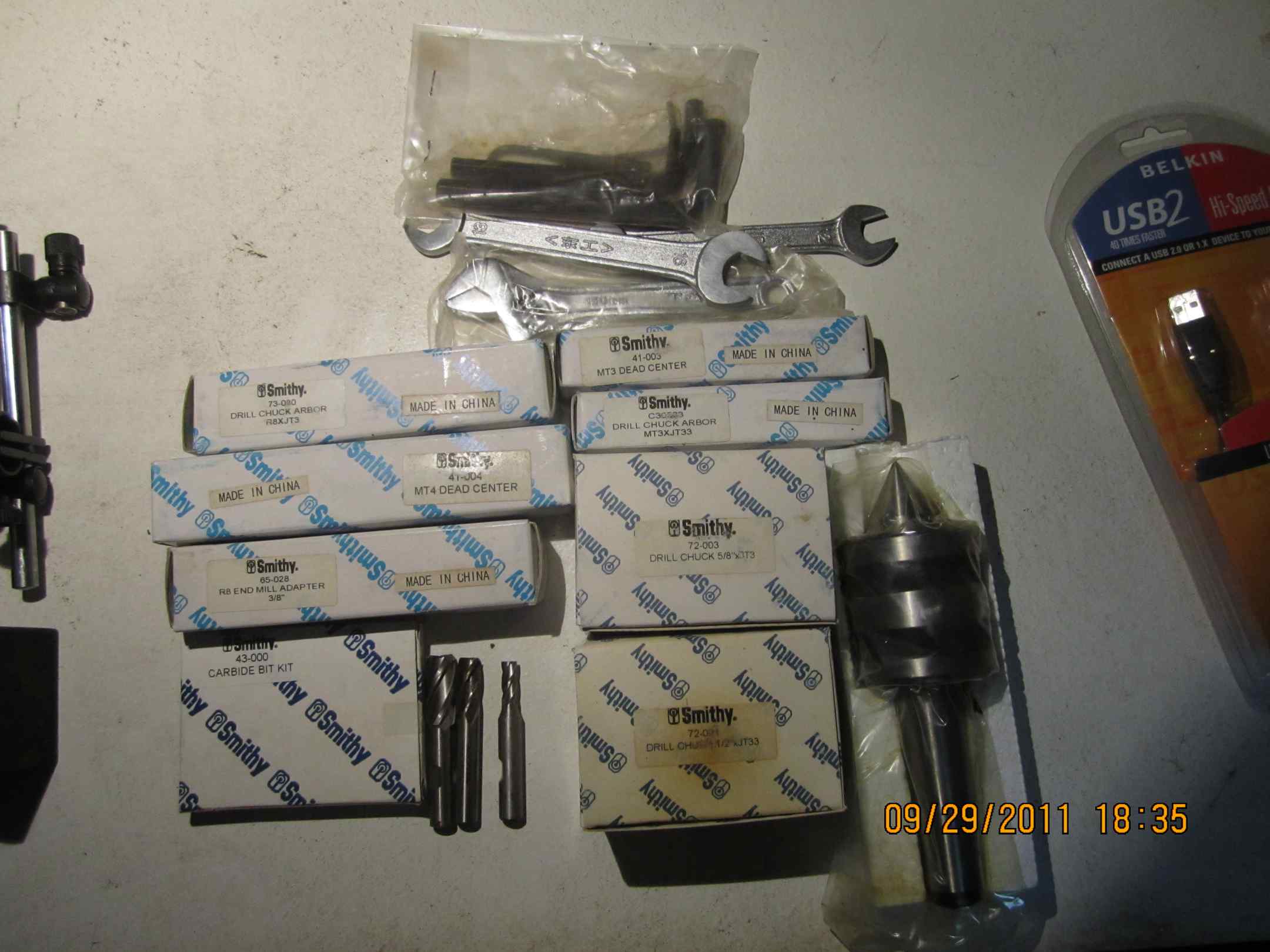

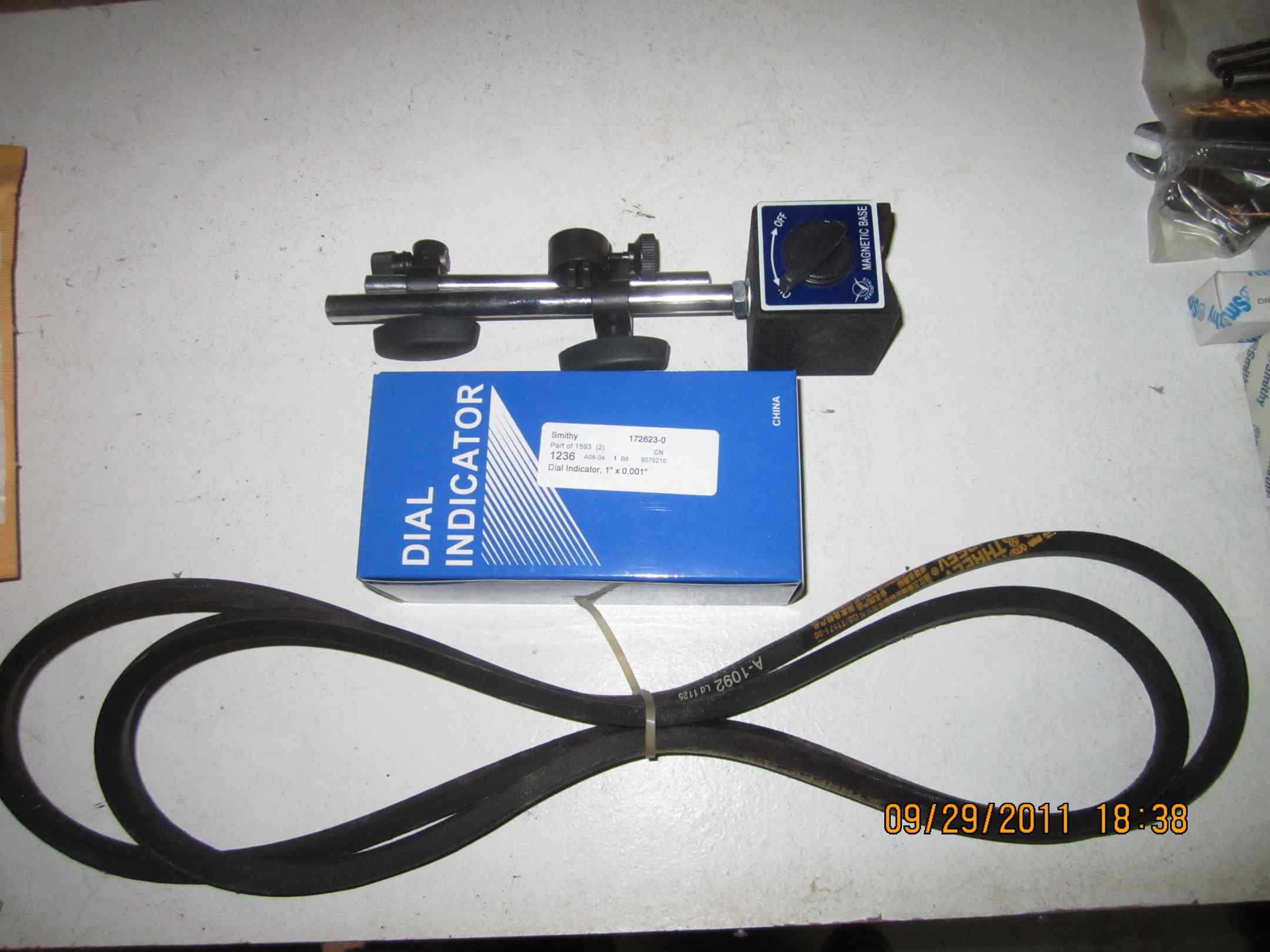

Tooling

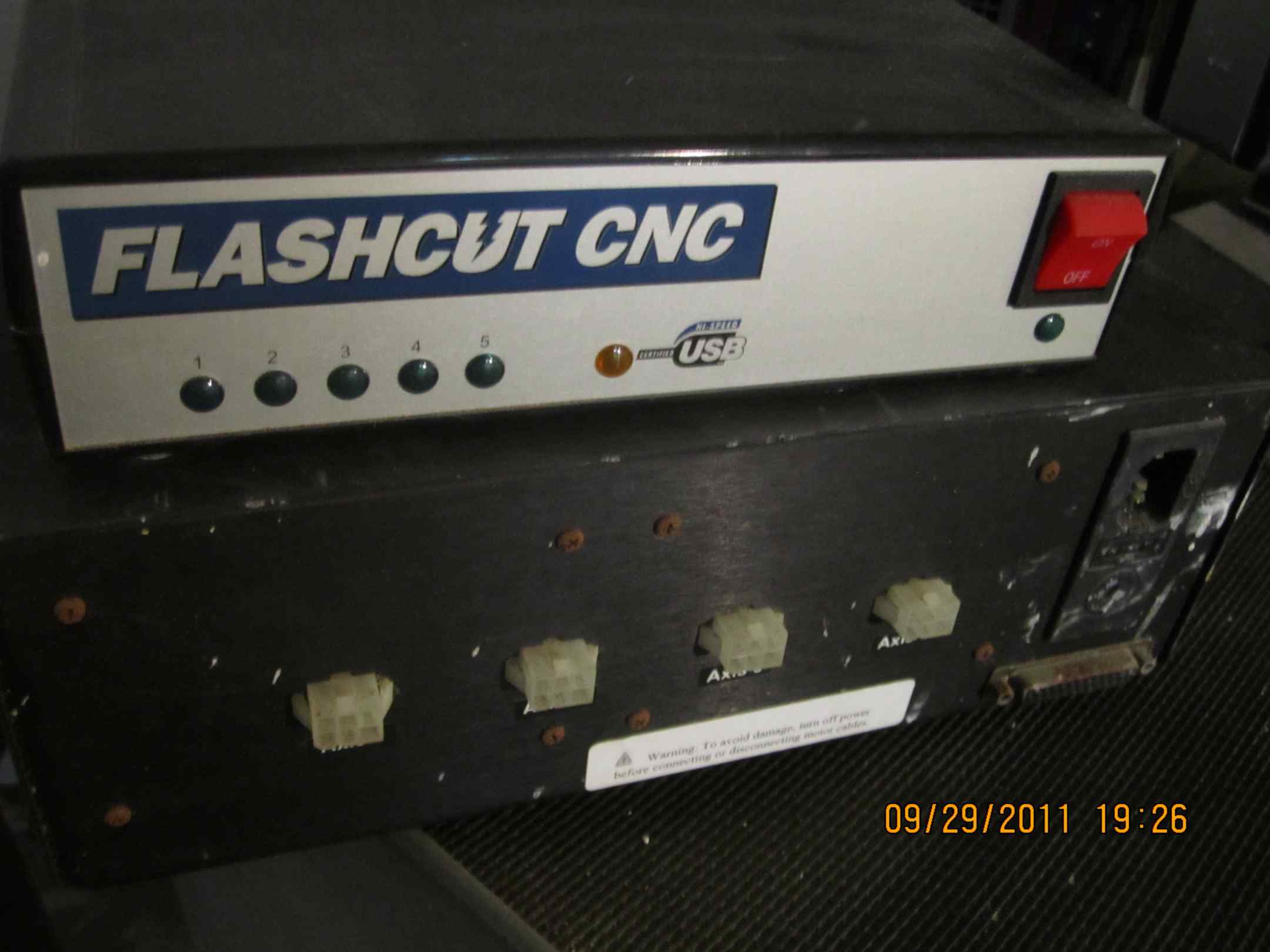

Flashcut CNC Controller
