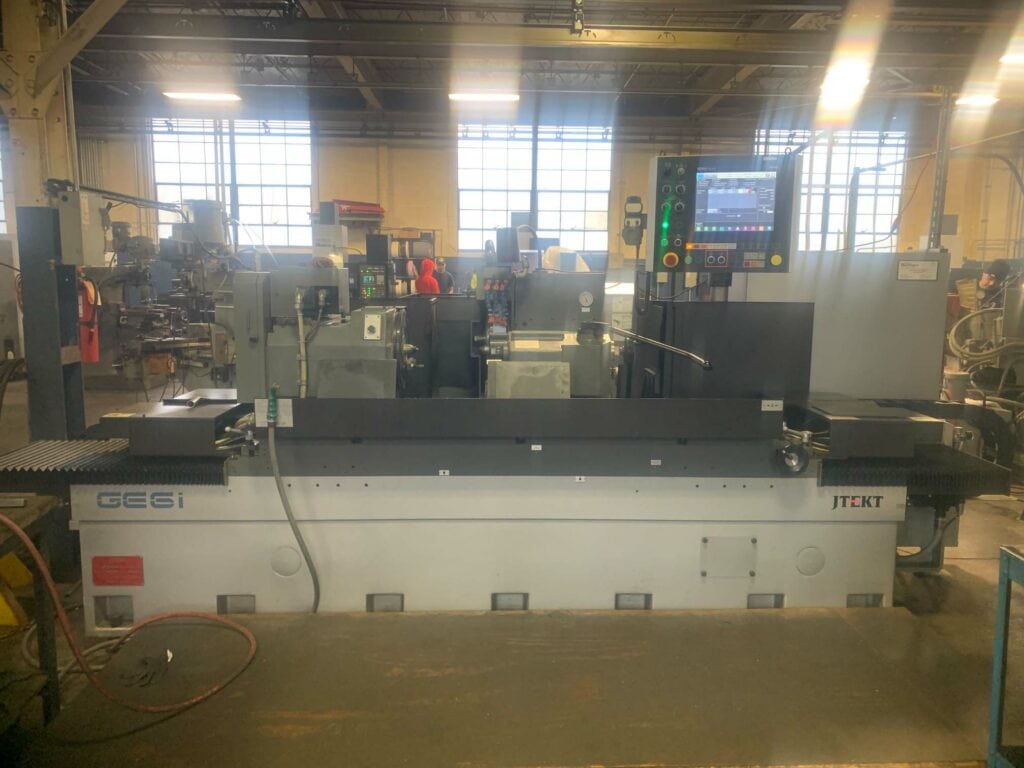

JTEKT Toyoda GE6Pi-100 CNC OD Grinder, 2022 โ€“ Transformer, Coolant Tank, Low Hours

$279,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Grinders
Make: Toyoda
Model: GE6i-100
Year: 2022
Machine Location: Upon Request
Stock #: 160605

Machine Capacity:
โ€“ **Swing:** ร˜ 22.0โ€ณ (560 mm)
โ€“ **Distance Between Centers:** 39.4โ€ณ (1,000 mm)
โ€“ **Maximum Grinding Diameter:** ร˜ 21.6โ€ณ (550 mm)
โ€“ **Maximum Load Between Centers:** 1,100 lbs (500 kg)
โ€“ **Centerline Height from Floor:** 46.45โ€ (1,180 mm)
โ€“ **Floor Space Required (approximate):** 197โ€ณ x 137โ€ณ (5,000 mm x 3,476 mm)
โ€“ **Net Weight:** 17,636 lbs (8,000 kg)

Wheelhead:
โ€“ **Wheel Size (OD x ID):** ร˜ 24โ€ณ x 10โ€ณ (610 mm x 254 mm)
โ€“ **Wheel Use Range:** ร˜ 24โ€ณ to 16.93โ€ณ (610 mm to 430 mm)*
โ€“ **Maximum Standard Wheel Width:** 2.95โ€ณ (75 mm)
โ€“ **Standard Wheel Surface Speed:** 6,500 SFPM (33 m/s)
โ€“ **Spindle:** TOYODA STATยฎ Bearing
โ€“ **Minimum Move Increment (on diameter):** 0.000010โ€ (0.0001 mm)
โ€“ **Wheelhead Rapid Feed (on diameter):** 590 IPM (15 m/min)
โ€“ **Slide:** V and Flat Slide, 90ยฐ slide

Table:
โ€“ **Type**: Two (2) Piece Swiveling/Traversing
โ€“ **Table Swivel (CCW to CW)**: 4ยฐ to 0ยฐ
โ€“ **Table Stroke**: 48.6โ€ (1,235 mm)
โ€“ **Slide**: V and Flat Slide
โ€“ **Minimum Move Increment**: 0.000010โ€ (0.0001 mm)
โ€“ **Table Rapid Feed**: 511 IPM (13 m/min)

Workhead:
โ€“ **Type**: Dead Spindle
โ€“ **Workhead Center Taper**: MT #5
โ€“ **Work Speed (Variable)**: 7 to 140 rpm

Footstock:
โ€“ **Type**: Manual
โ€“ **Footstock Center**: MT #5
โ€“ **Maximum Center Retraction**: 1.25โ€ณ (32 mm) by lever, 1.18โ€ณ (30 mm) by manual position adjust wheel

Dresser:
โ€“ **Type**: Stationary Diamond Holder
โ€“ **Location**: Workhead Mount

Motors:
โ€“ **Wheel Drive Motor (4P)**: 15 hp (11 kW)
โ€“ **Work Drive Motor (Brushless AC Servomotor)**: 4.69 hp (3.5 kW)
โ€“ **Wheelhead Feed Drive Motor (Brushless AC Servomotor)**: 4.15 hp (3.1 kW)
โ€“ **Table Feed Drive Motor (Brushless AC Servomotor)**: 6.7 hp (5 kW)
โ€“ **Lubricant Pump Motor (4P)**: .27 hp (.2 kW)
โ€“ **Wheel Spindle Lubrication Motor (2P) Fan Cooler for Spindle Oil (4P)**: .67 hp (.5 kW), .1 hp (.08kW)

Power Requirement:
โ€“ 200Volt, 3-Phase, 60 Hz

Fluid Capacities:
โ€“ **Spindle Oil Lube Tank (Mobil Velocite #6)**: 3.7 gal (14 lt)
โ€“ **Lubrication Tank (Mobil Vacuoline 1409)**: 5.2 gal (20 lt)
โ€“ **Coolant Tank**: 92 gal (350 lt)

Equipped with:
-Dead Workhead
-Manual Footstock
-105 Gallon Coolant Tank

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
