Videojet 1550 Inkjet Printer

$6,950.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Packaging Equipment
Make: Videojet
Model: 1550
Year: 1900
Machine Location: Wisconsin
Stock #: 770383

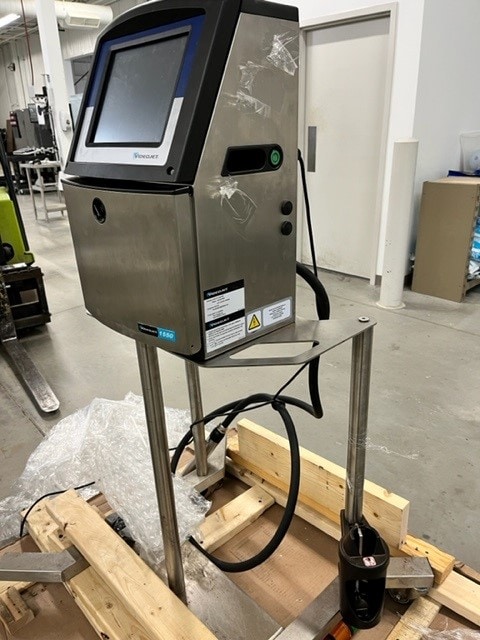

Used Videojet 1550 Inkjet Printer:

Line speed capability:
Can print 1 to 5 lines of print at speeds of up to 914 ft./min. (278.6 m/min.) (10 characters per inch, single line of print)

Printhead umbilical:
Ultra flexible Length: 9.84’ (3m) optional 19.69’ (6m) Diameter: 0.91” (23mm) Bend radius: 4.0” (101.6mm)

Make-up fluid consumption:
As low as 2.4ml per hour

Font matrix configuration:
Single-line: 5×5, 5×7, 7×9, 8×12, 11×16, 17×24, 34×34
Twin-line: 5×5, 5×7, 7×9, 8×12, 11×16
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7 Five-line: 5×5

Nominal character height:
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font

Throw distance:
– Optimal: 0.472” (12mm)
– Range: 0.197” (5mm) to 0.591” (15mm)

User interface:
10.4” high-response TFT-LCD touch screen WYSIWYG touch to edit message editing

Printhead:
– Heated printhead
– Positive air (standard)
– Diameter: 1.63” (41.3mm)
– Length: 10.62” (269.8mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
