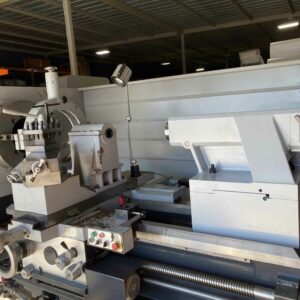

40″ x 72″ Engine Lathe, Monarch, 1952 – Model 32NN, 40 HP

$16,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Engine Lathes
Make: Monarch
Model: 32NN
Year: 1952
Machine Location: Texas
Stock #: 220196

Swing Over Bed Ways: 40.5
Swing Over Cross Slide: 24″
Spindle Hole: 2-1/4″
Center Distance: 72″
Spindle Speeds: 10 To 505 Rpm’s
Spindle Nose: D1-11
Chuck Size: 36″ 4 Jaws
Feeds: .006 To .363
Threads Inch: 1 To 56 TPI
Tail Stock Quill Diameter: 5-3/4″
Tail Stock Taper: # 5 Morse
Tail Stock Travel: 10″
Main Motor: 40 Hp. 220 V
Floor Space: 17′ long x 84″ wide
Machine Height: 65″
Weight Lbs.: 28,000 approximate
Taper Attachment: Yes
Thread Dial: Yes
Hardened And Ground Way: Yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
