90 Ton x 6.5′ Baileigh BP-9078NC CNC Hydraulic Press Brake, 2023 – Brand New!, 1-Year Warranty, 61″ Distance Between Housings

Item Number BP-9078NC
Back Gauge Length 17144
Return Speed 2.36″ / sec.
Motor 10 hp
Oil Capacity 45 gal
Included Accesories Included Accesories
Throat Depth 7.87″
Stroke Distance 5.9″
Table Width 6.29″
Approach Speed 3.14″ / sec.
Back Gauge Motor 1/2 hp
Bed Length 17145
Bending Speed .236″ / sec
Maximum Capacity 90 tons
Distance Between Housings 61″
Distance From Table To Ram 11.81″
Power 220V / 3-phase
Shipping Weight 8800lbs
Shipping Dimensions (Inches) 103x85x100

Delivers up to 90 tons of pressure.
Bends sheet metal up to 78” wide.
10 hp main motor runs on 220-volt 3-phase power.

POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM
Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
2 encoder-controlled hydraulic cylinders move the top beam.
Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend won’t lose its shape.
2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
Foot pedal brings the stroke up and down, leaving your hands free to position the material.
Motorized back gauge rides on a solid ball screw trolley mechanism.
Back gauge encoder shows its position on its own DRO.
Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.

RIGID STRUCTURE AND LOW MAINTENANCE
Heavy electrowelded frame, made of solid steel, enables this press brake to stay accurate and run smoothly in production for many years.
Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

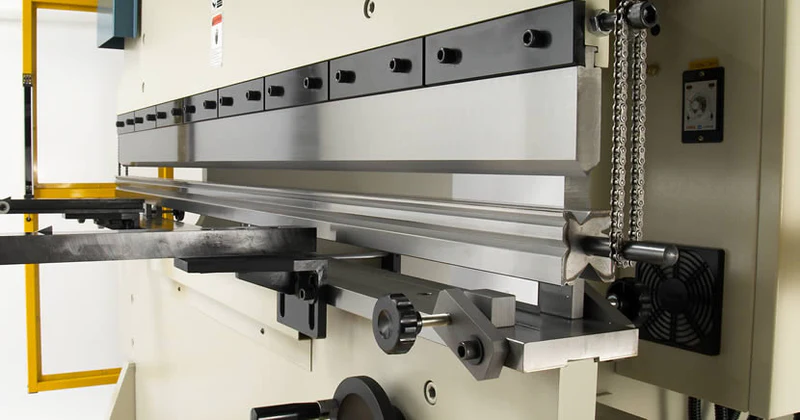

Includes a set of hardened single-Vee American tooling.
Accepts standard press brake tooling, giving you a wide variety of options.
Comes with front material rests (or support arms), which some competing machines do not include.
6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
4 grease zerks let you add oil every few months.
Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
