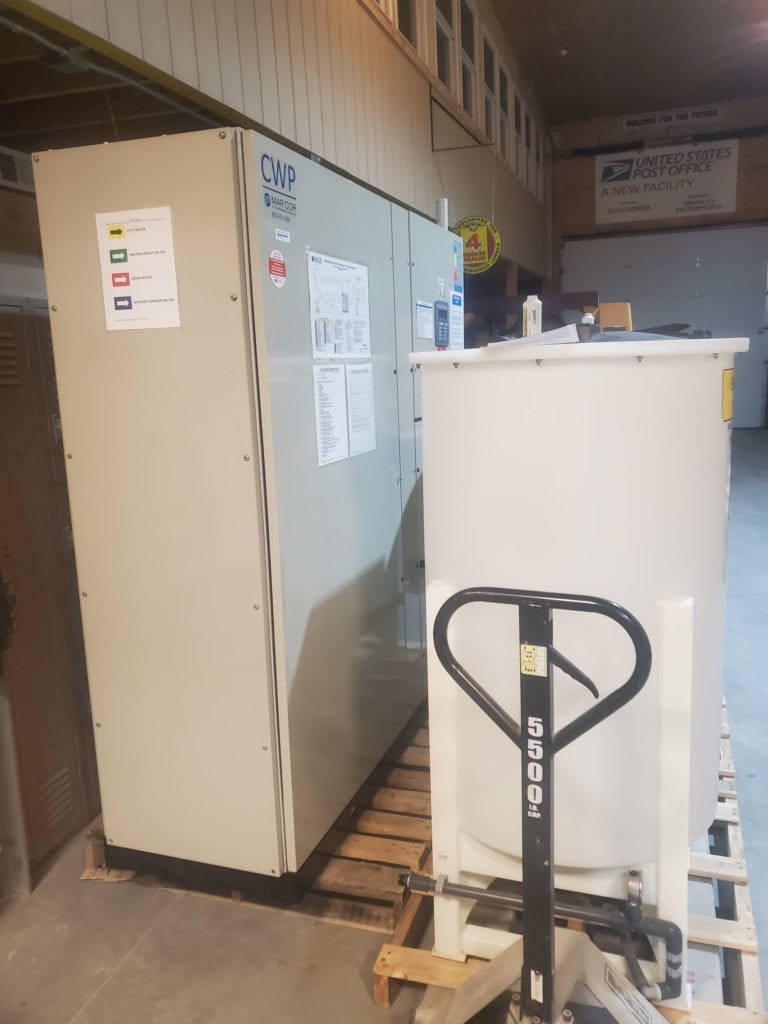

Mar Cor CWP 100 H Dialysis RO – 5,000–13,000 GPD, Heat Disinfection, 510(k)

Equipment Overview

Single-skid medical RO with automated chemical RO disinfection and hot-water loop disinfection. Designed to produce dialysis-grade water per ANSI/AAMI 13959 with 510(k) compliance. Includes pretreatment components, booster and expansion hardware, and distribution accessories per the confirmed bill of materials below.

Key Features and Specifications
• Product Water Output: 9.3 gal/min
• Minimum Feed Flow: 15.9 gal/min
• Minimum Feed Pressure: 51 psi
• Maximum Feed Pressure: 73 psi
• Peak Rinse Flow: 15.9 gal/min
• Operating Temperature Range: 5 °C to 25 °C
• Salt Rejection (typical): >95% (membrane-dependent)
• Bacteria/Endotoxin Reduction: >99% when properly disinfected and maintained
• Membrane Configuration: Spiral-wound
• Membrane Type: Modified polyamide thin-film composite (TFC)
• pH Tolerance (Cleaning Range): 2–11
• RO Disinfection: Automated chemical disinfection (RO/membrane)
• Loop Disinfection: Hot-water loop disinfection (semi-automated)
• Electrical Service: 120/208 V, 3-phase, 60 Hz
• RO Power (variant-dependent): 1.8–2.5 kW
• Loop Heater Power: ~9.0 kW
• Medical Device Compliance: FDA 510(k)
• Water Quality Standard: Intended to meet ANSI/AAMI 13959 for dialysis water
• Included Components & Accessories: (2) #10 carbon tanks, (2) #8 carbon tanks, (1) #7 carbon tank, (2) black polyethylene brine tanks, Pentek BIG BLUE filters, WRO-H osmosis machine with heat disinfection, booster pump, expansion tank, D.I. monitor, dual-tank bicarbonate station with integral control station
• Controls/HMI: Operator interface with programmable disinfection cycles and alarms (per family features)
• Physical Specs: Weight – 1,290 lb; Dimensions – 26.4″ W × 83″ D × 79.1″ H
• Service Clearances: ~20 in (500 mm) recommended on each side
