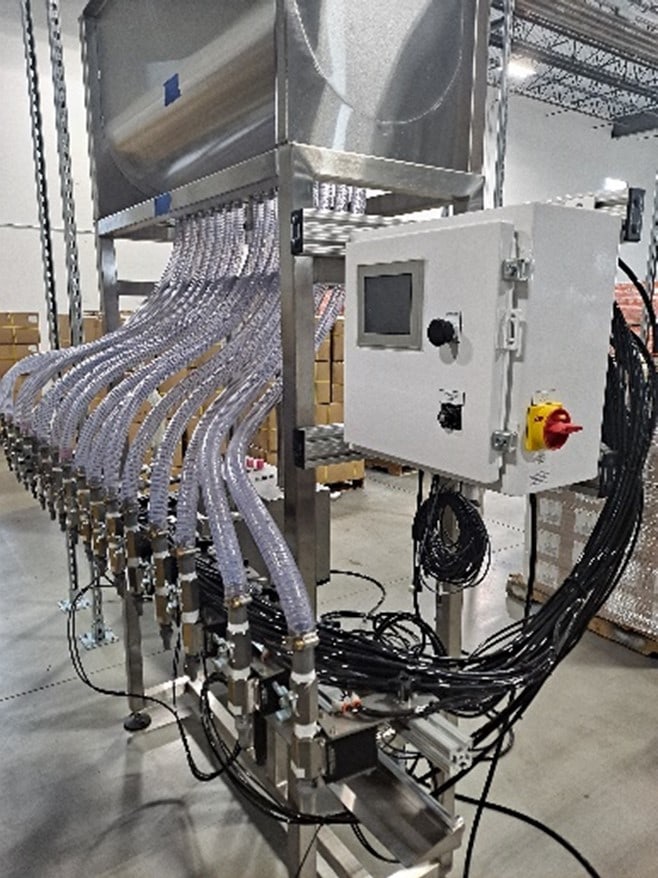

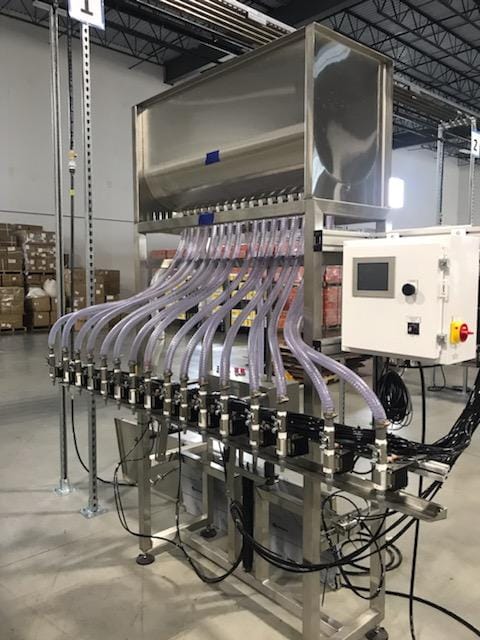

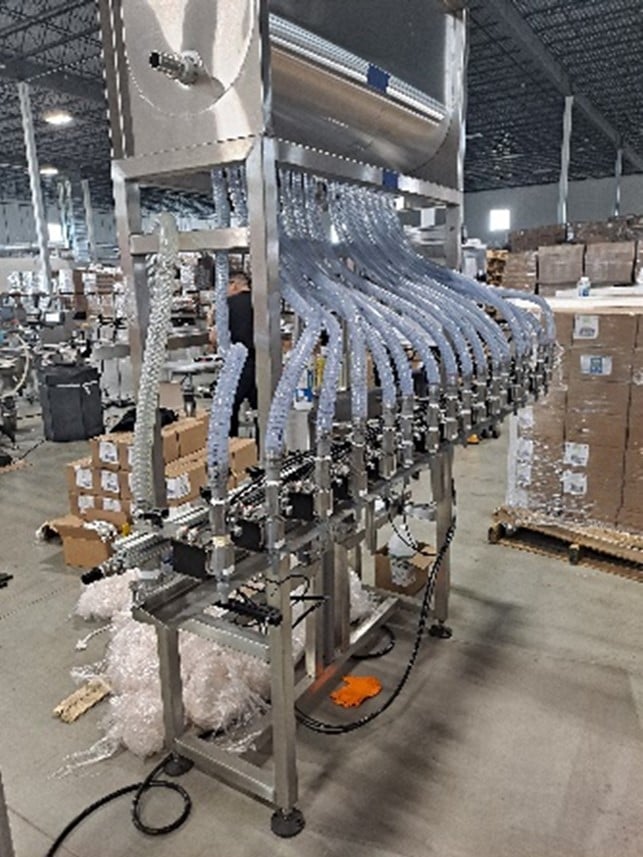

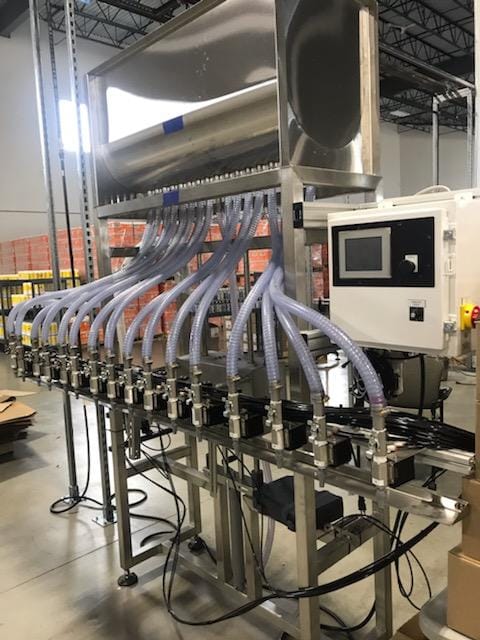

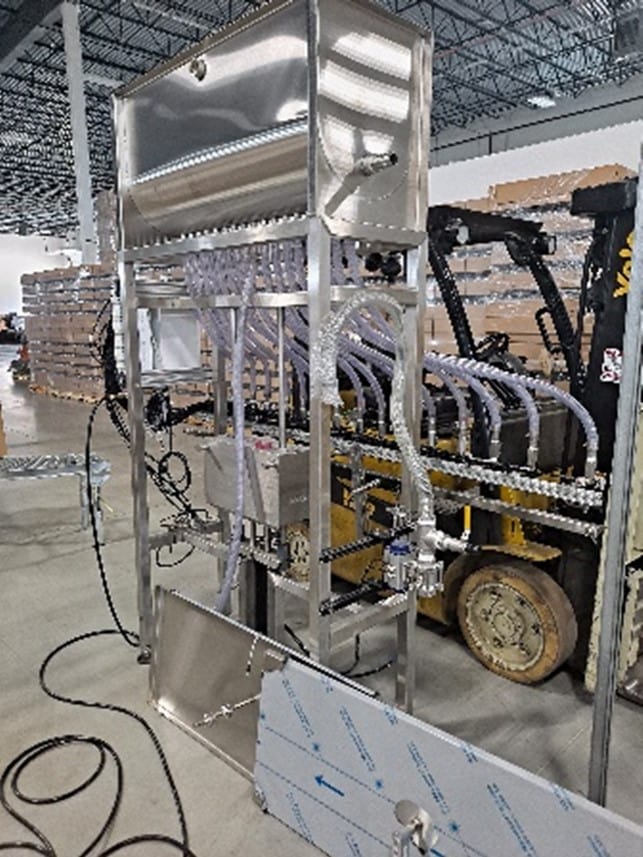

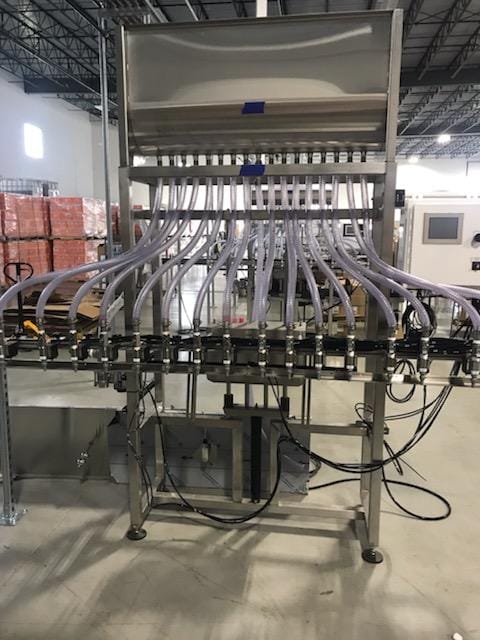

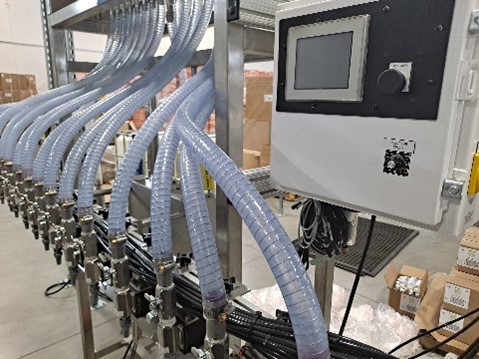

ELF 16-Head Automatic Gravity Filler, Refurbished (1)

$20,000.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

-304 stainless steel heavy-duty frame construction with adjustable leveling pads

-316 stainless steel 3/4″ pneumatically actuated fill head assemblies

-Wire reinforced PVC product tubing with stainless steel hose barbs

-35-gallon, 304 stainless steel trough-style product reservoir (16-port product tank with 1.5” inlet) with 316 stainless steel level-sensing dual ball float for safety back-up

-Manually controlled ball valves for throttling product flow at fill heads

-Low head pressure/no fill system controls

-(1) 3/4 ” stainless steel product supply control valves

-Automatic drip tray protects bottles from potential drips

-Automatic pin-style indexing to bring bottles in and out of fill station

-No Bottle/No Fill sensor to ensure proper bottle count prior to filling

-Anti-bottle back-up sensor to pause filling cycle if downstream jam is detected

-Manual crank height adjustment for fill heads

-Supply pump and motor starter not included

-NEMA 12, painted steel enclosure

-Requires clean, dried air at 80-100 psi

-120/240 VAC / 1 phase / 50-60Hz
