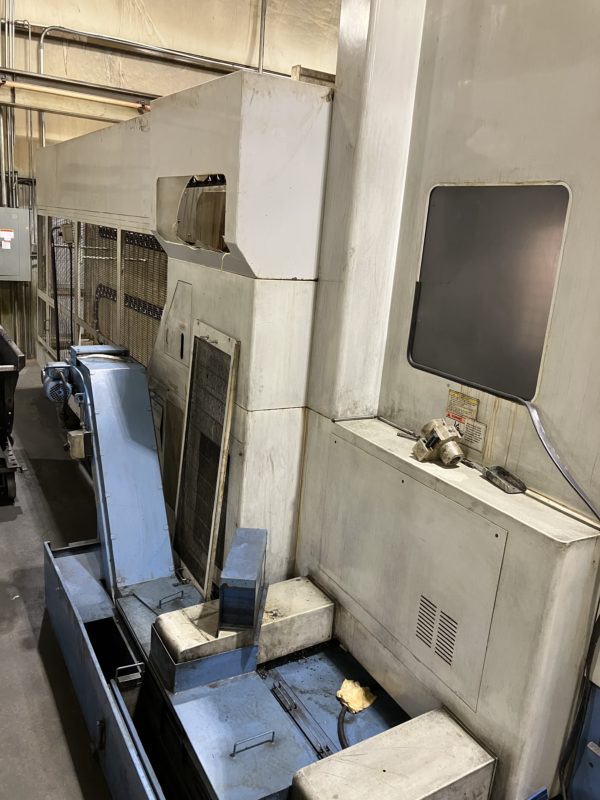

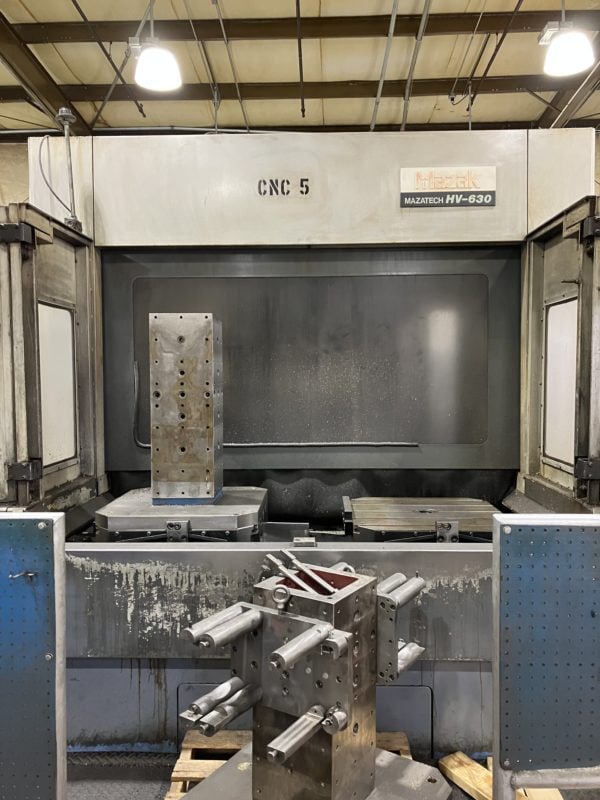

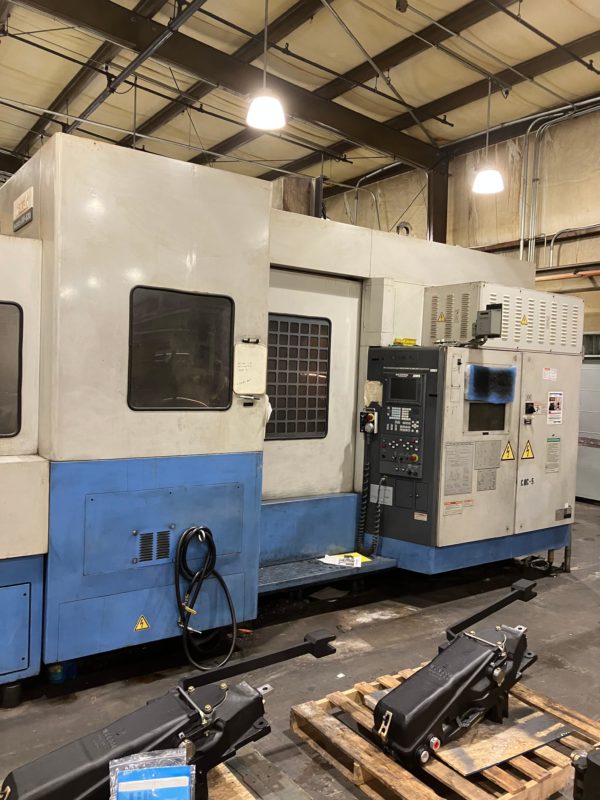

Mazak HV630 5 Axis 630mm HMC, 2000 – Chip Conveyor, 80 ATC


This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

X-Axis Travels: 43″
Y-Axis Travels: 31″
Z-Axis Travels: 41″
Power: 30HP
RPM: 4,000RPM
#Number of Tool Positions: 80
Spindle Motor: 30HP
Pallet Width: 24.8″
Pallet Length: 24.8″
Voltage: 200V

Approx. Length: 243″
Approx. Width: 155″
Approx. Height: 139″
Approx. Weight: 44,000 Lbs.
