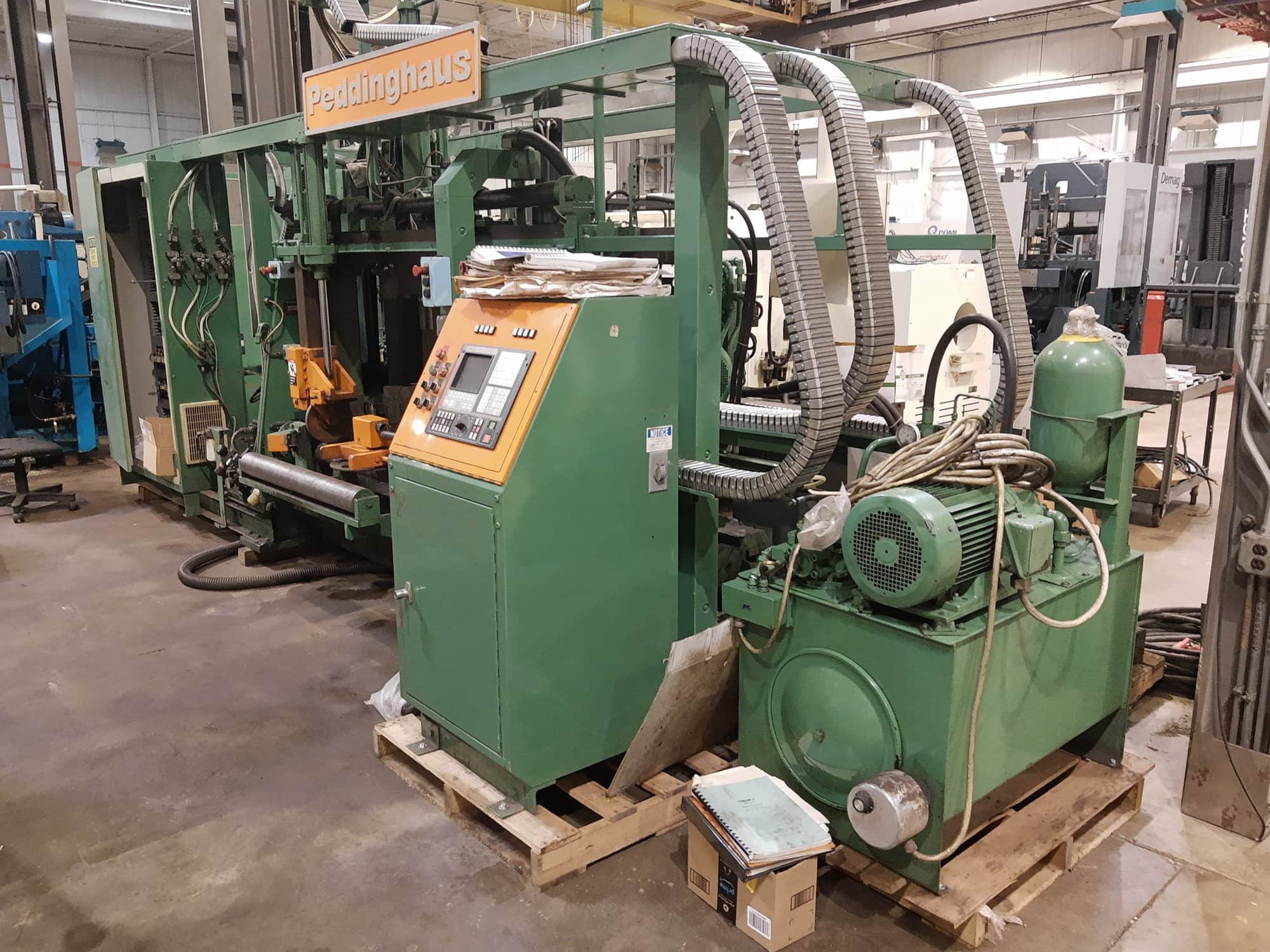

Peddinghaus TDK-1000 3-G Drilling Line, 1989- Updated Fagor Control

$29,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Fabrication
Model:
TDK-1000 3-G
Make:
Peddinghaus
Year:
1989

SPINDLE
Quantity: 3
Travel: 300mm
Motor: 11 HP

MAX Drill Diameter: 40mm
Rapid Advance and Retract: 20FPM
Max Feed Rate: 12IPM
Drill Holder: No. 4 Morse Taper
Positioning Speed: 65FPM
HP to Move Tower: 3
Roller Feed Measuring System: 130 FPM
Max Workpiece Weight: 18,000 lbs

Dimensions: 40″ W x 24″ H x 4″ Thick x 7″ Flange Thickness

COMES WITH:
Updated Fagor Controller
Spare Parts
Refurbed. in 2003
Horizontal and Vertical Clamps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
