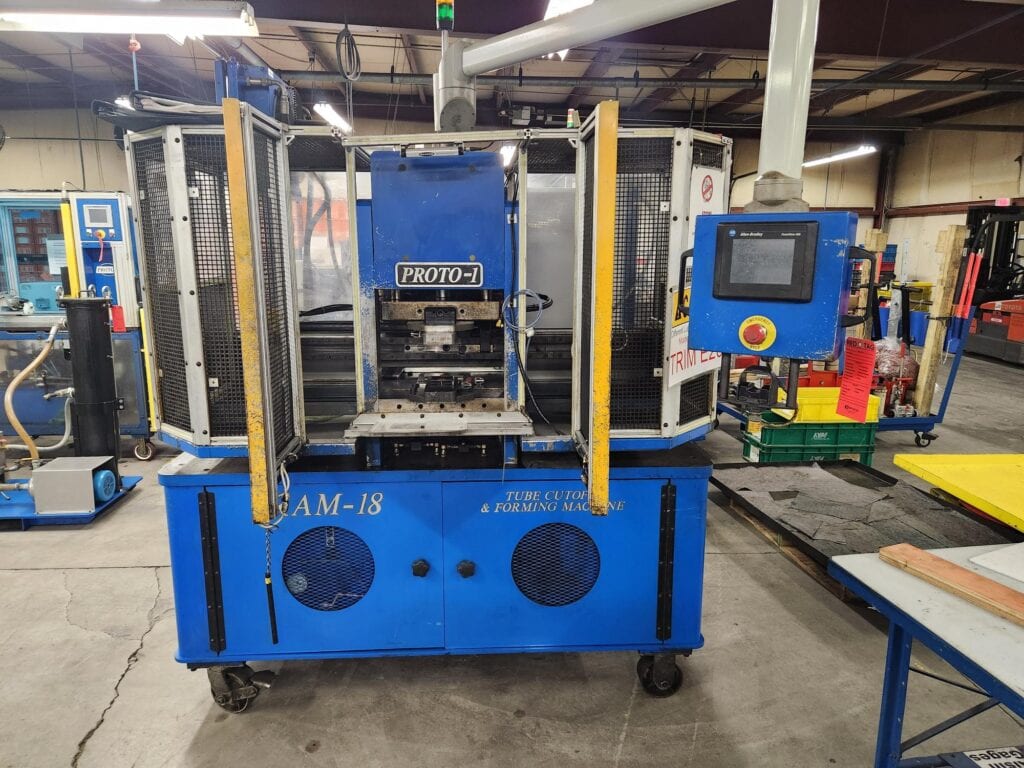

20 Ton Proto-1 Ram 18 Tube Cutoff and Forming Machine, 2010

Tube Diameter: 0.125″ – 2.0″
Tube Wall: 0.020″ – 0.083″
Cycle Time: 8-30 seconds depending on end form and material type
Hydraulic Cylinders Clamp: 30 ton vertical with 5″ bore and 4″ stroke
Hydraulic Cylinders Ram: 20 ton horizontal with 4″ bore and 6″ stroke
Tooling Shuttle Bar: 7 position ram shuttle (1-tube stop and 6-tools)
Voltage: 480v/60hz/3phase)
Oil Tank: 40 gallons
Dimensions: 78.2″ length x 88.0″ width x 98.4″ height

Equipped With:
– Allen Bradley PLC Controls
– Allen Bradley HMI Touchscreen
– Hydraulic Oil Cooling: Fan-air Hydraulic Oil Cooling System
– Parts/Tooling Flood cooling system w/ drip pan
– Finger Switch Cycle Start
– FAST Technology
