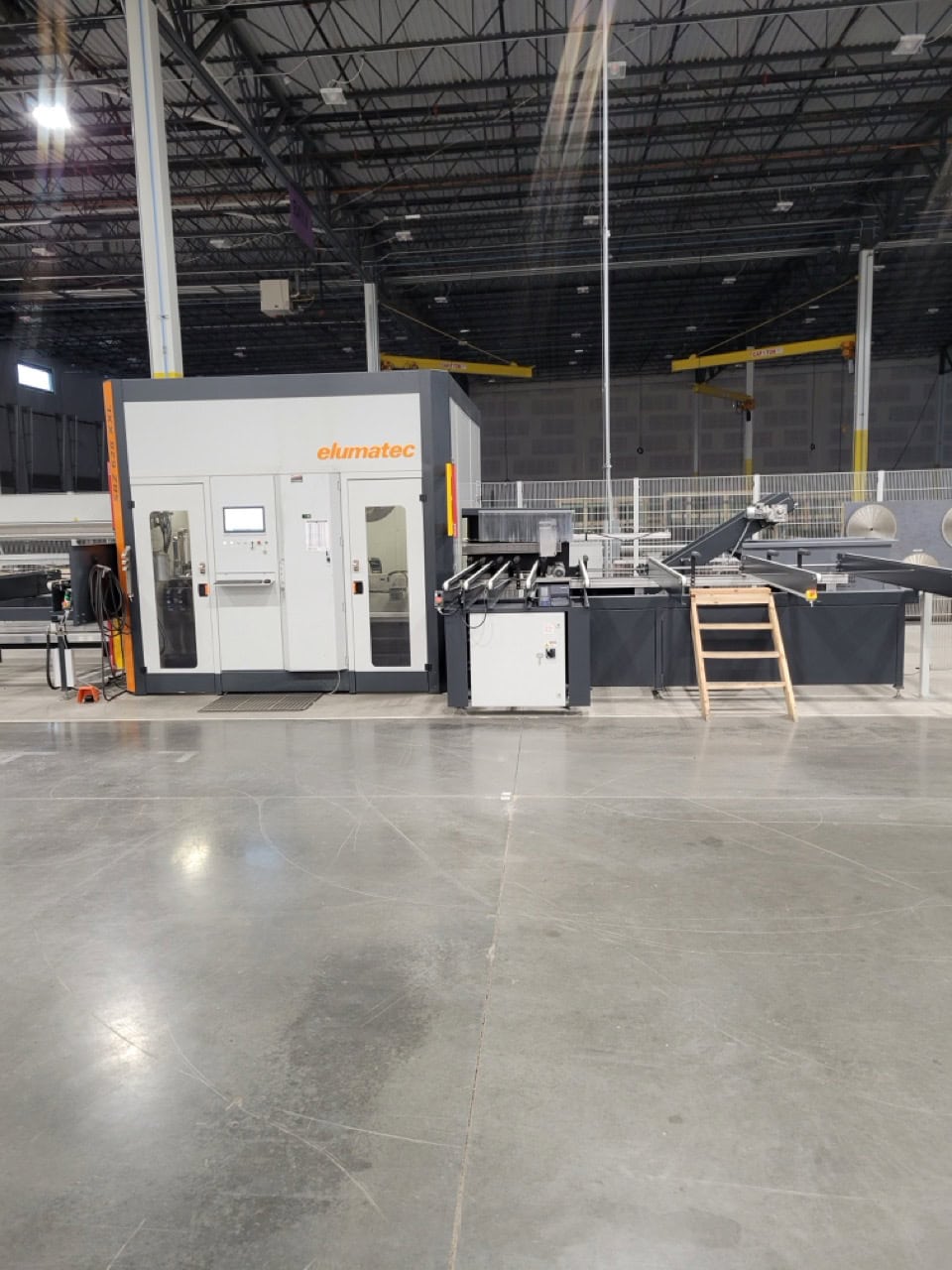

Elumatec SBZ 686 XXL CNC Profile Machining Center, 2022 – Low Hours, Fully Equipped

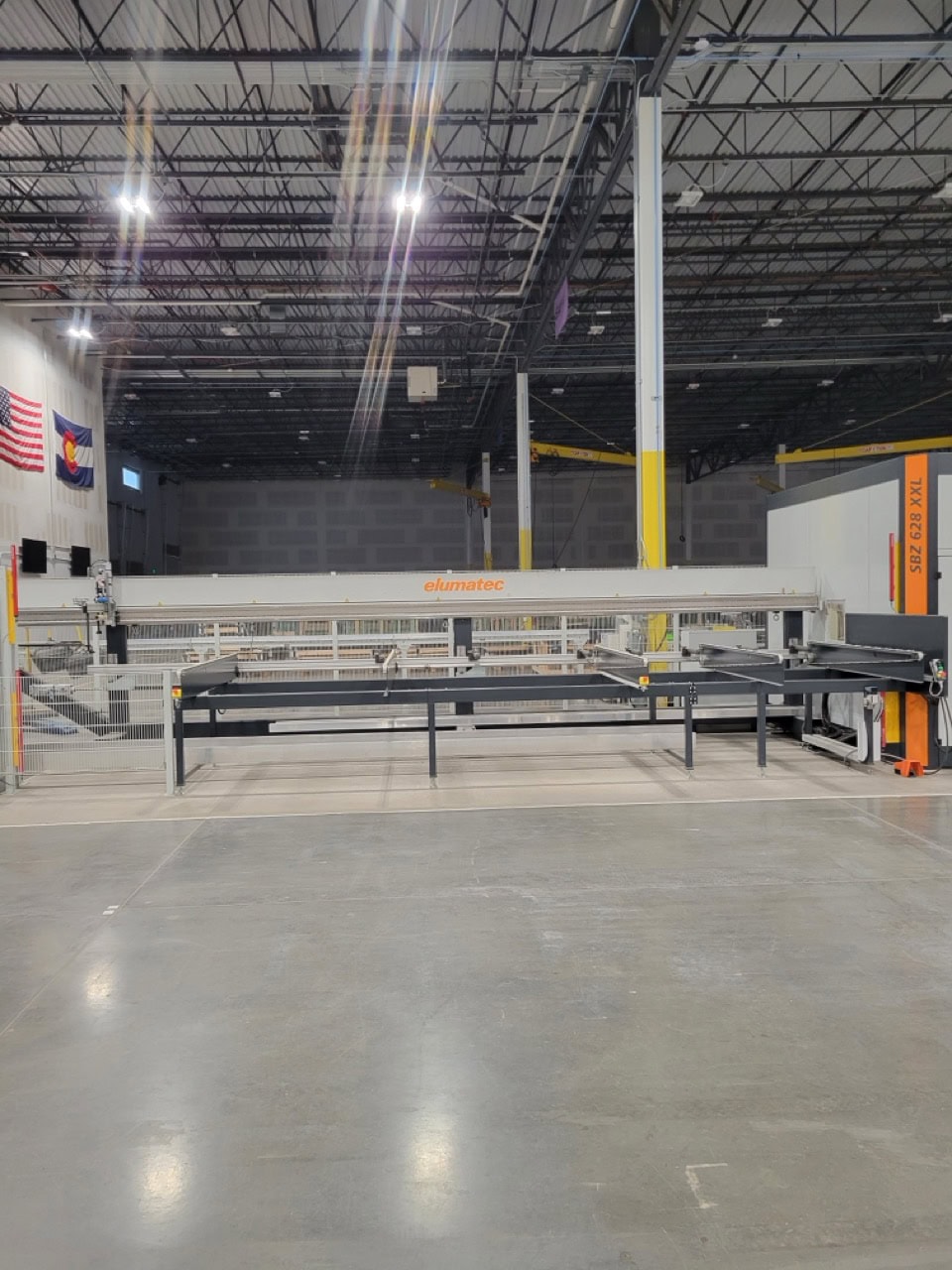

SBZ 628 XXL: pass-through system for windows, doors and curtain walls

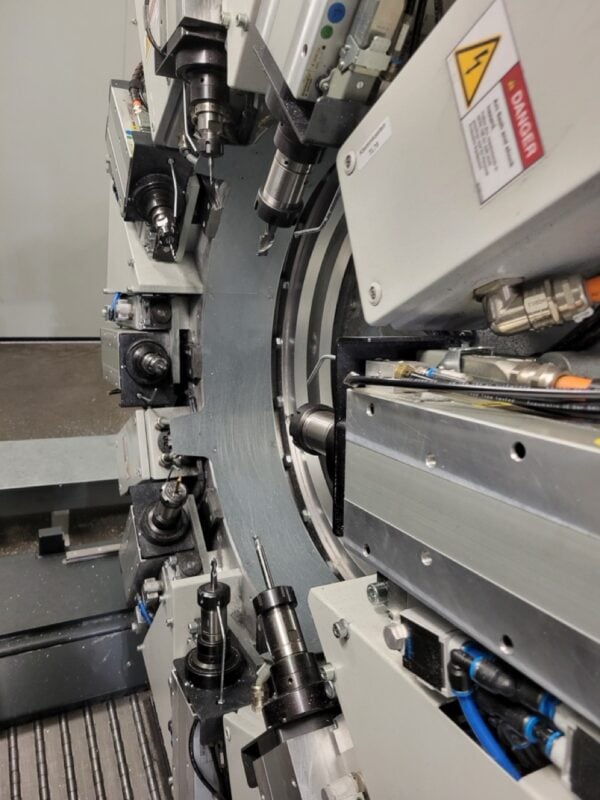

Up to eight spindles for routing or drilling
Different separating cut strategies from 22.5° to 157.5° (pivoting)

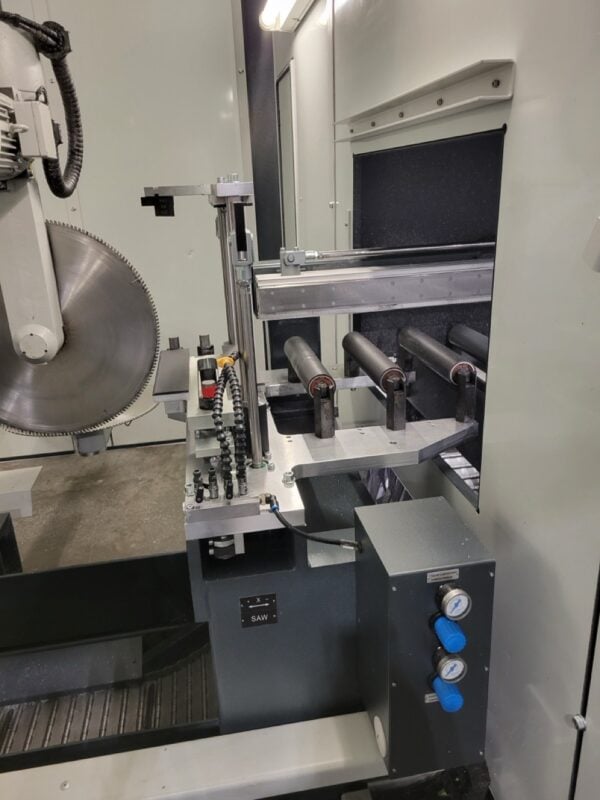

Additional saw unit from 45° to 135° (tilting)
Combined notching

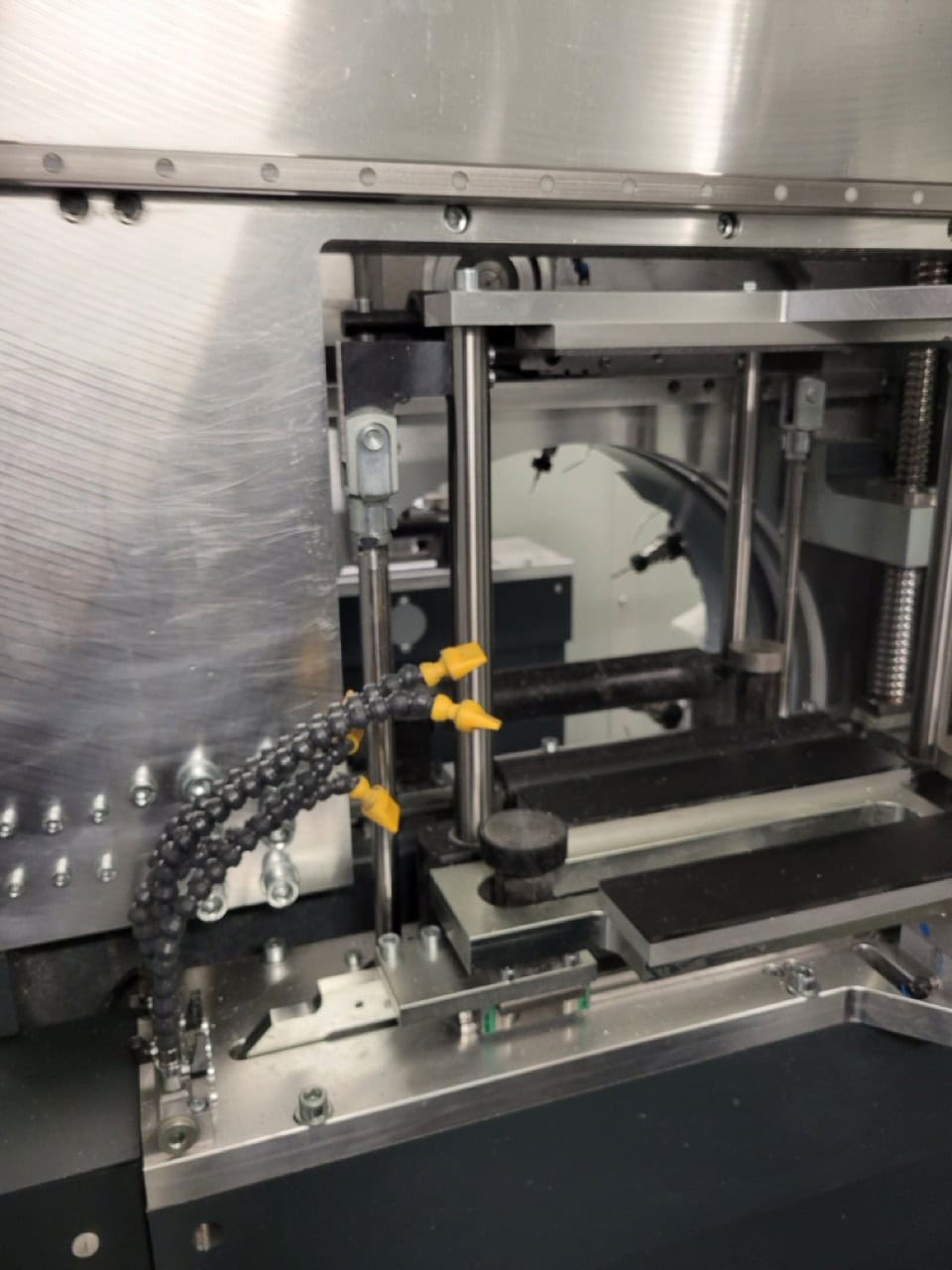

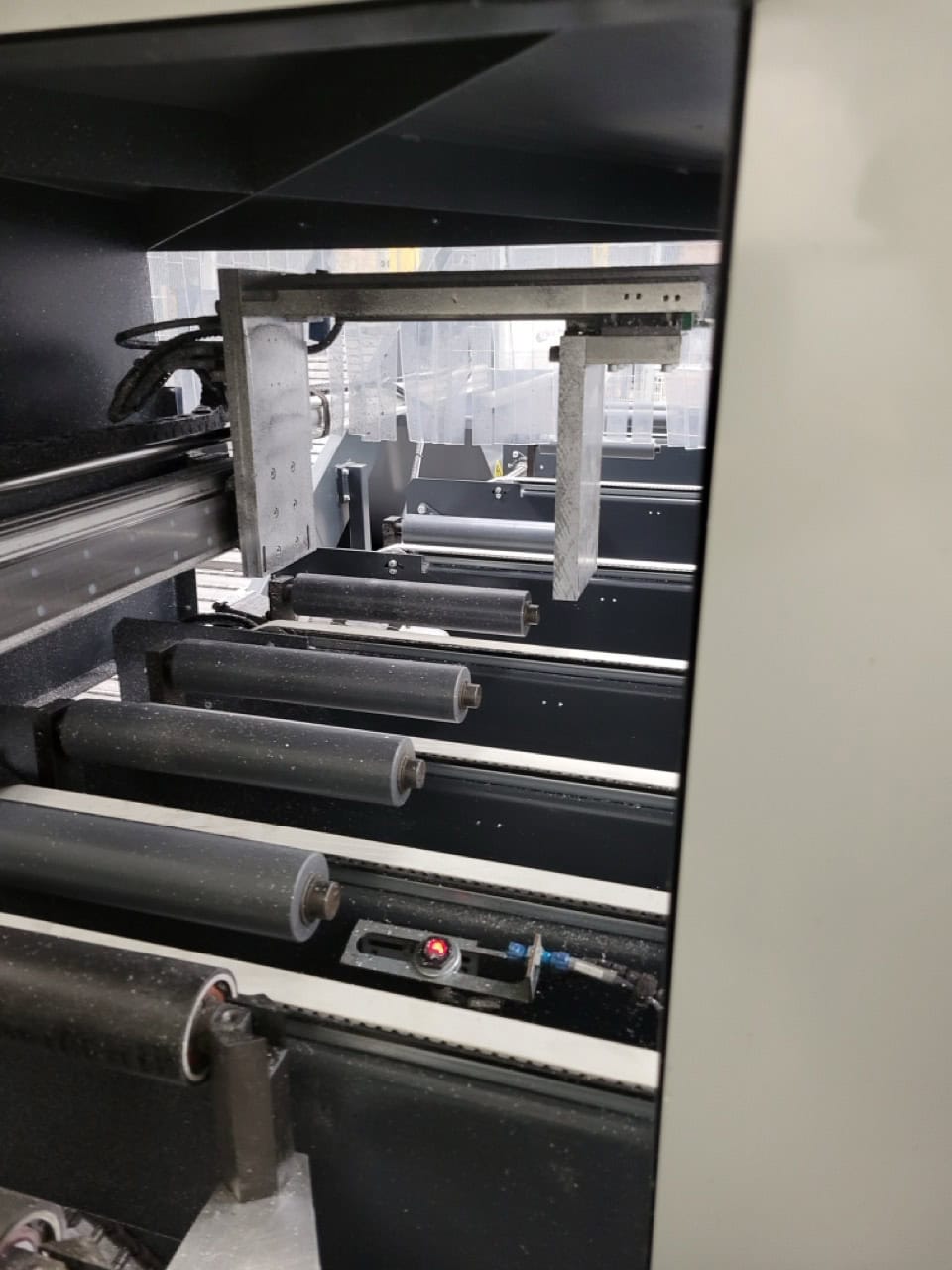

Quick-change systems for tension rollers and clamping plates for atypical profiles
Mode for manual insertion and clamping of non-stationary profiles.
Machine configuration

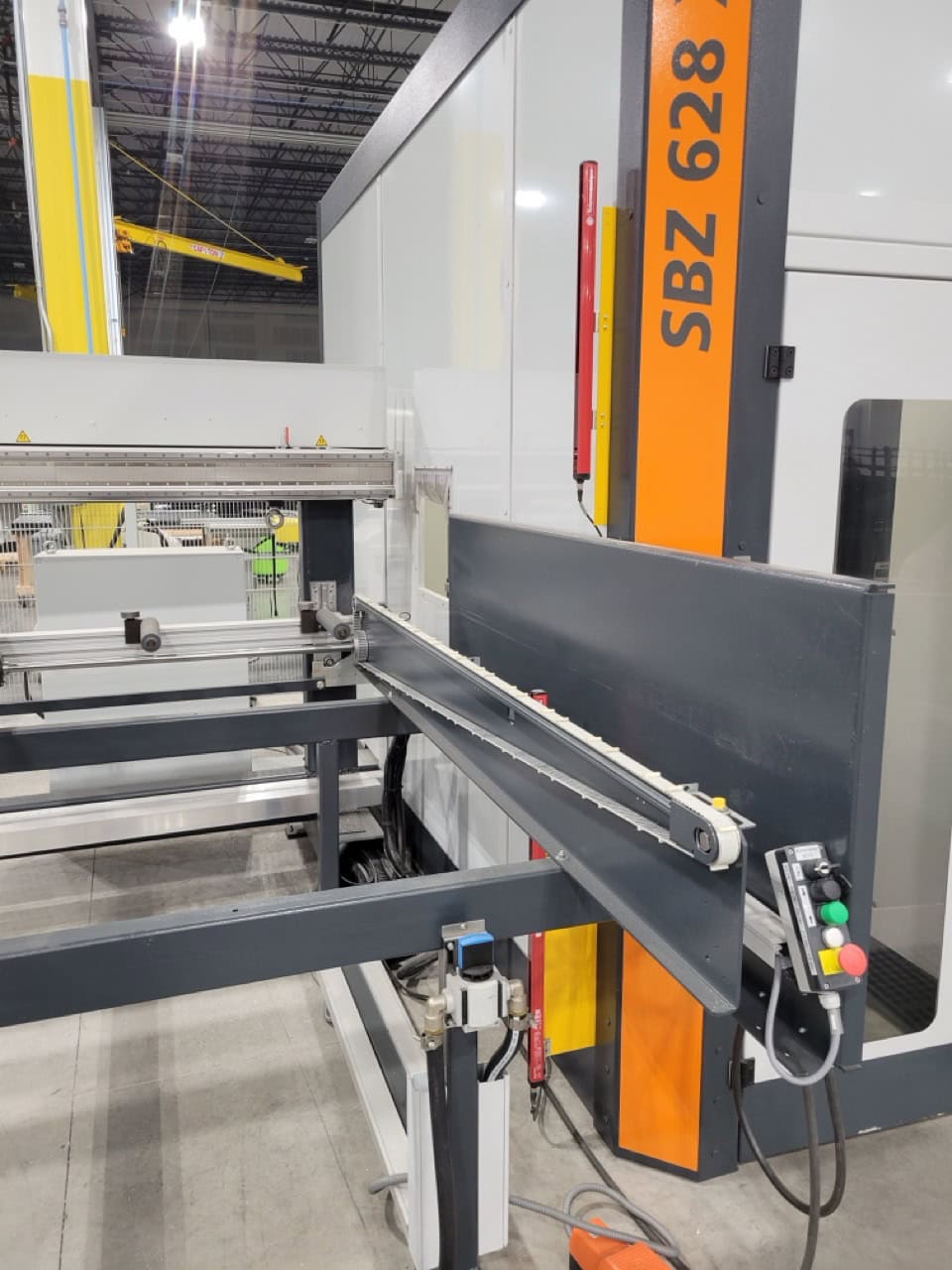

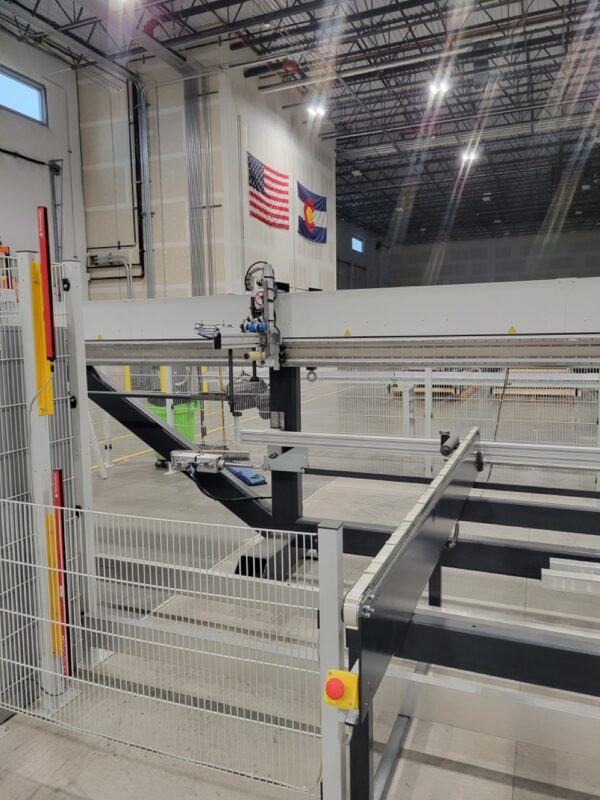

Left loading magazine for automatic production processes

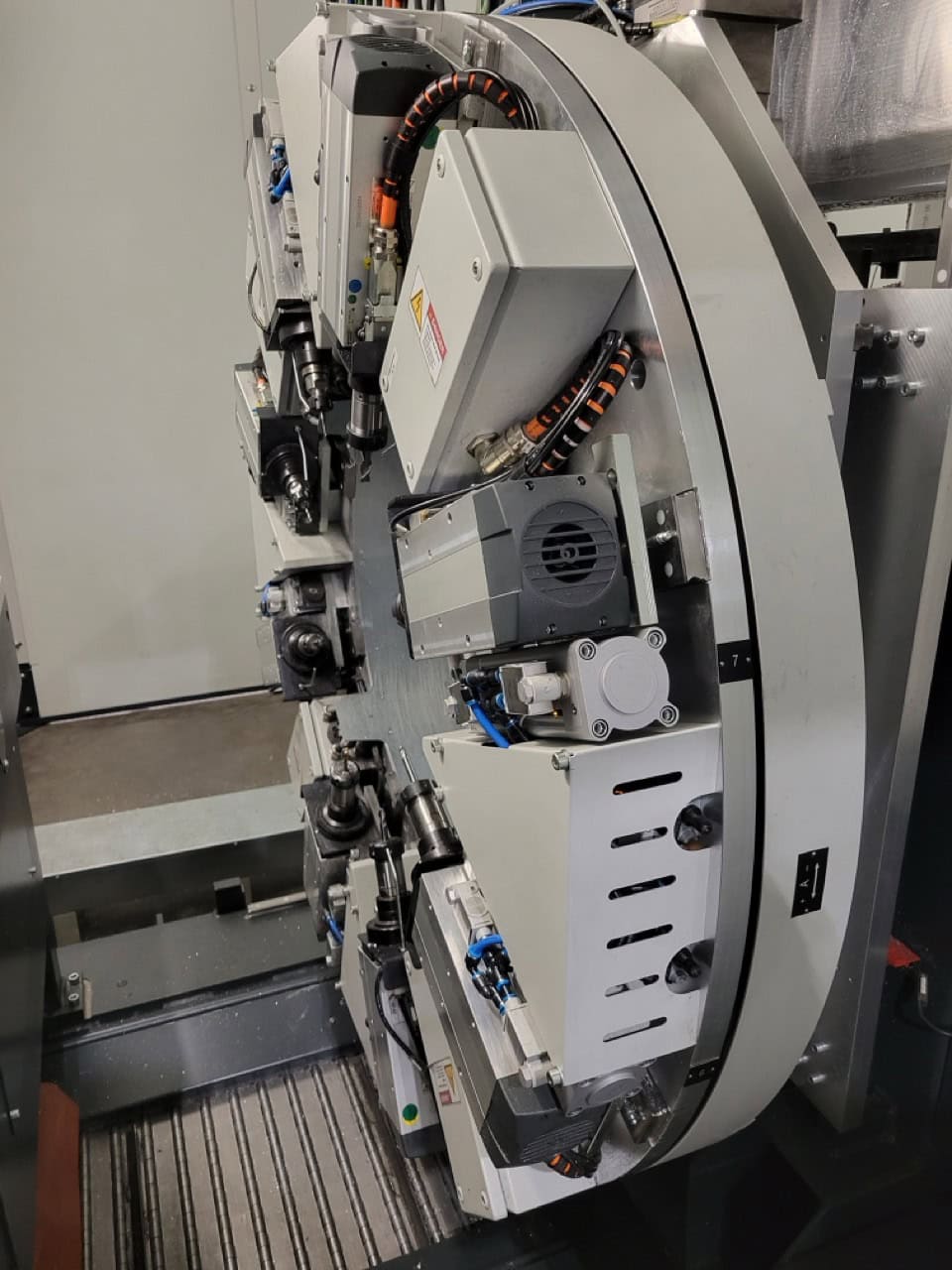

The routing spindles can be positioned continuously over 360° on the profile bar, and the cutting angle can be adjusted
continuously over 360° for machining profiles in various clamping situations

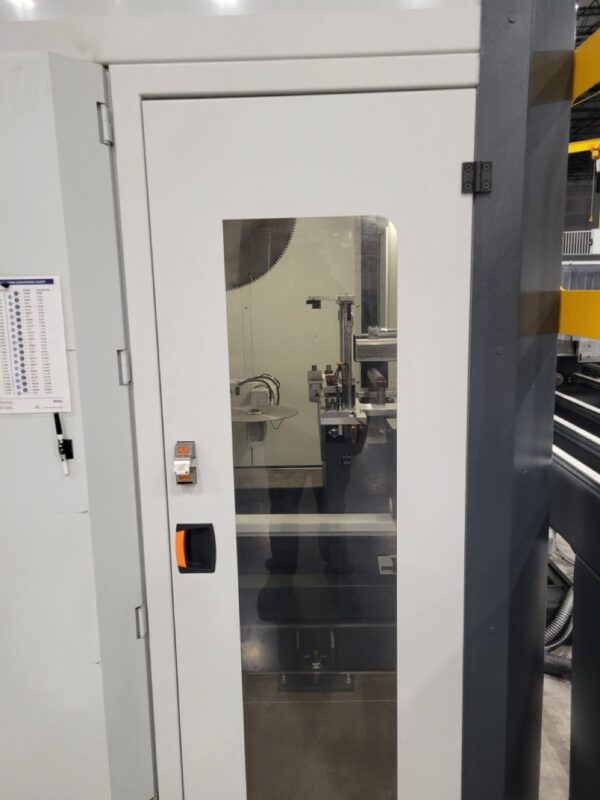

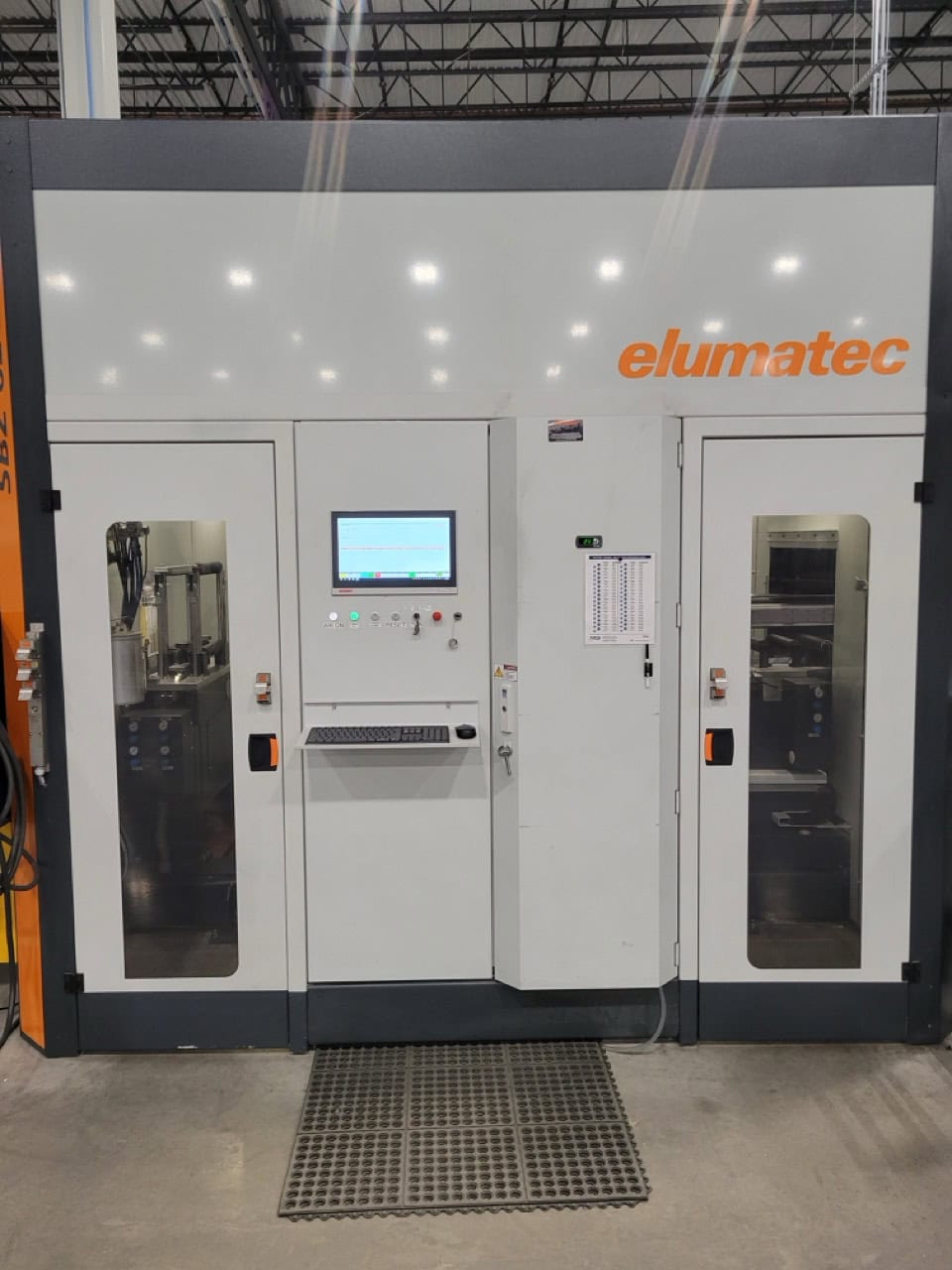

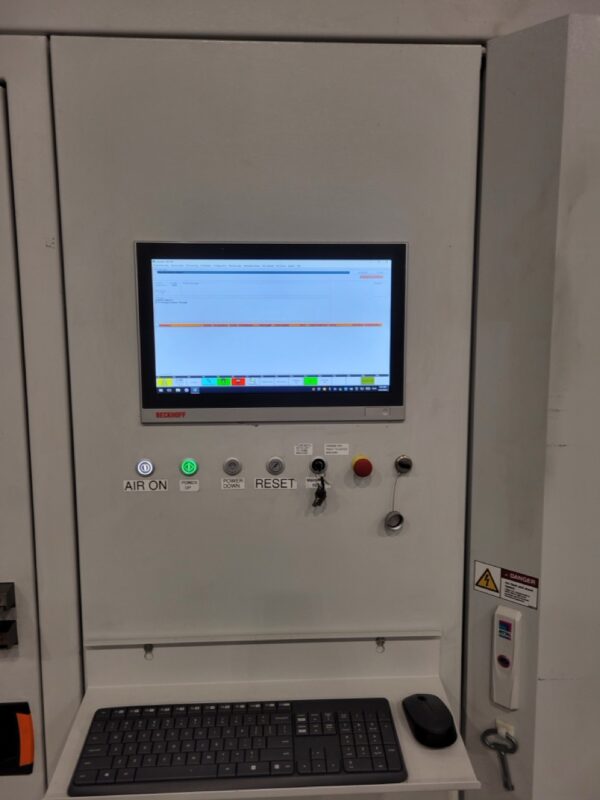

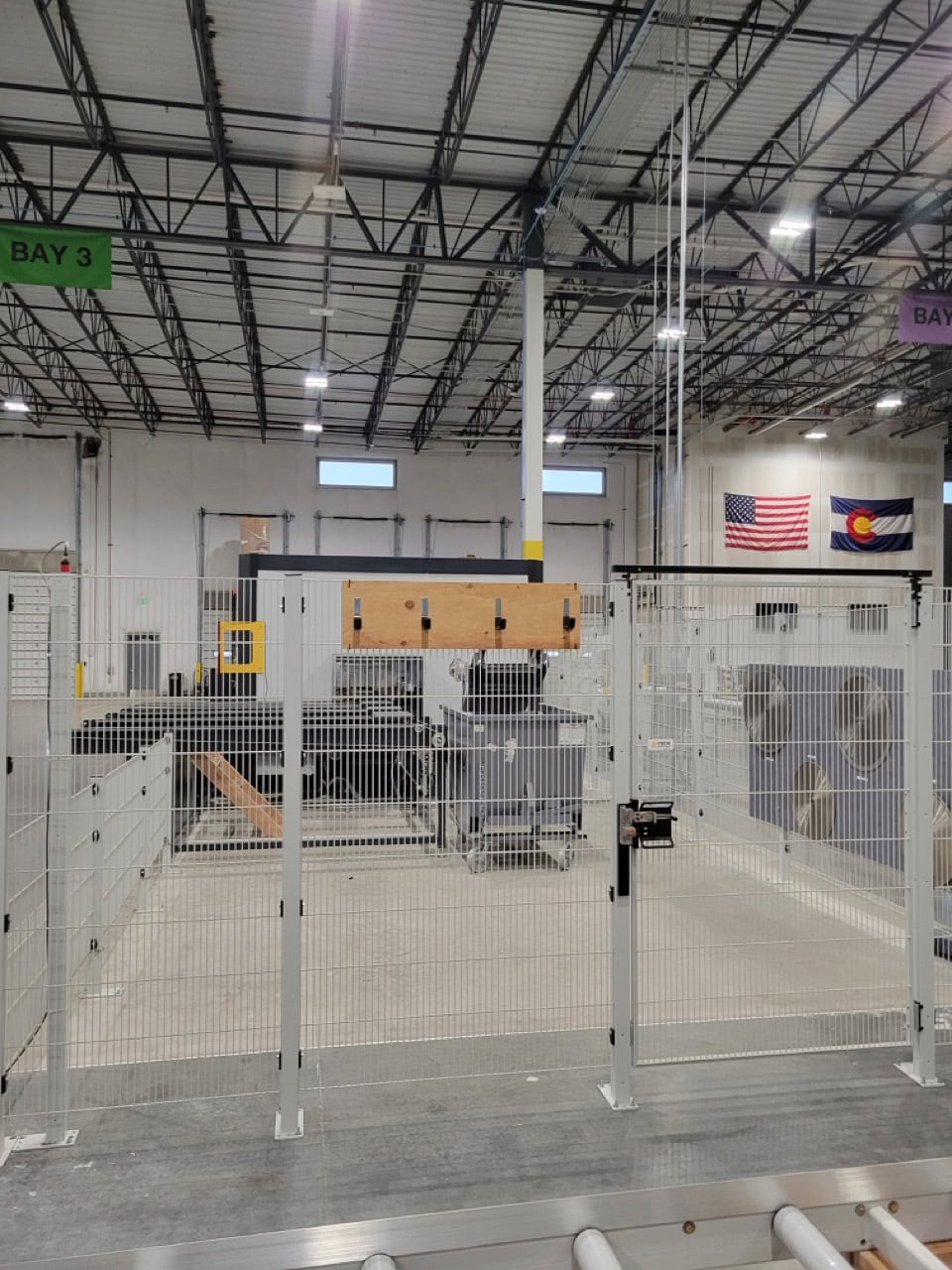

A generously dimensioned noise abatement enclosure and the easy-access controls and maintenance elements simplify
operation

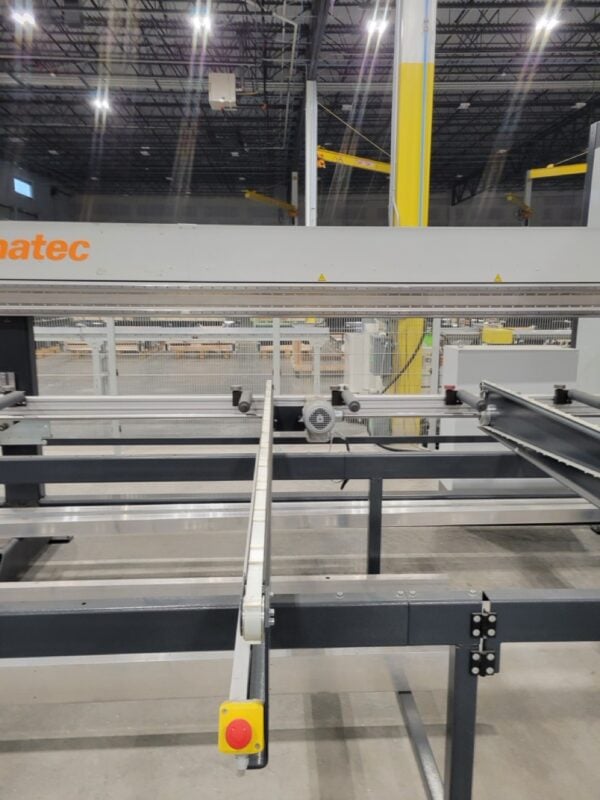

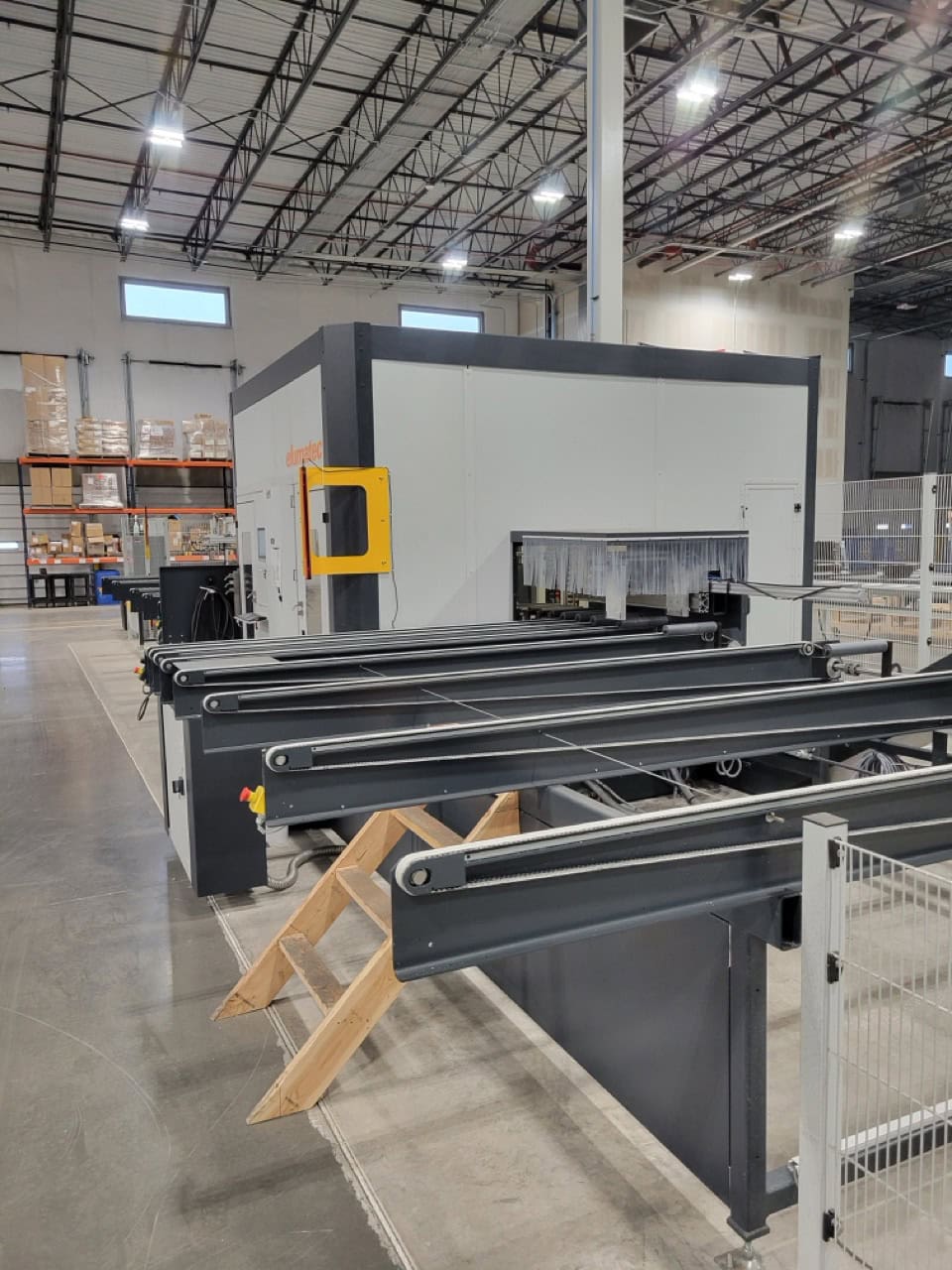

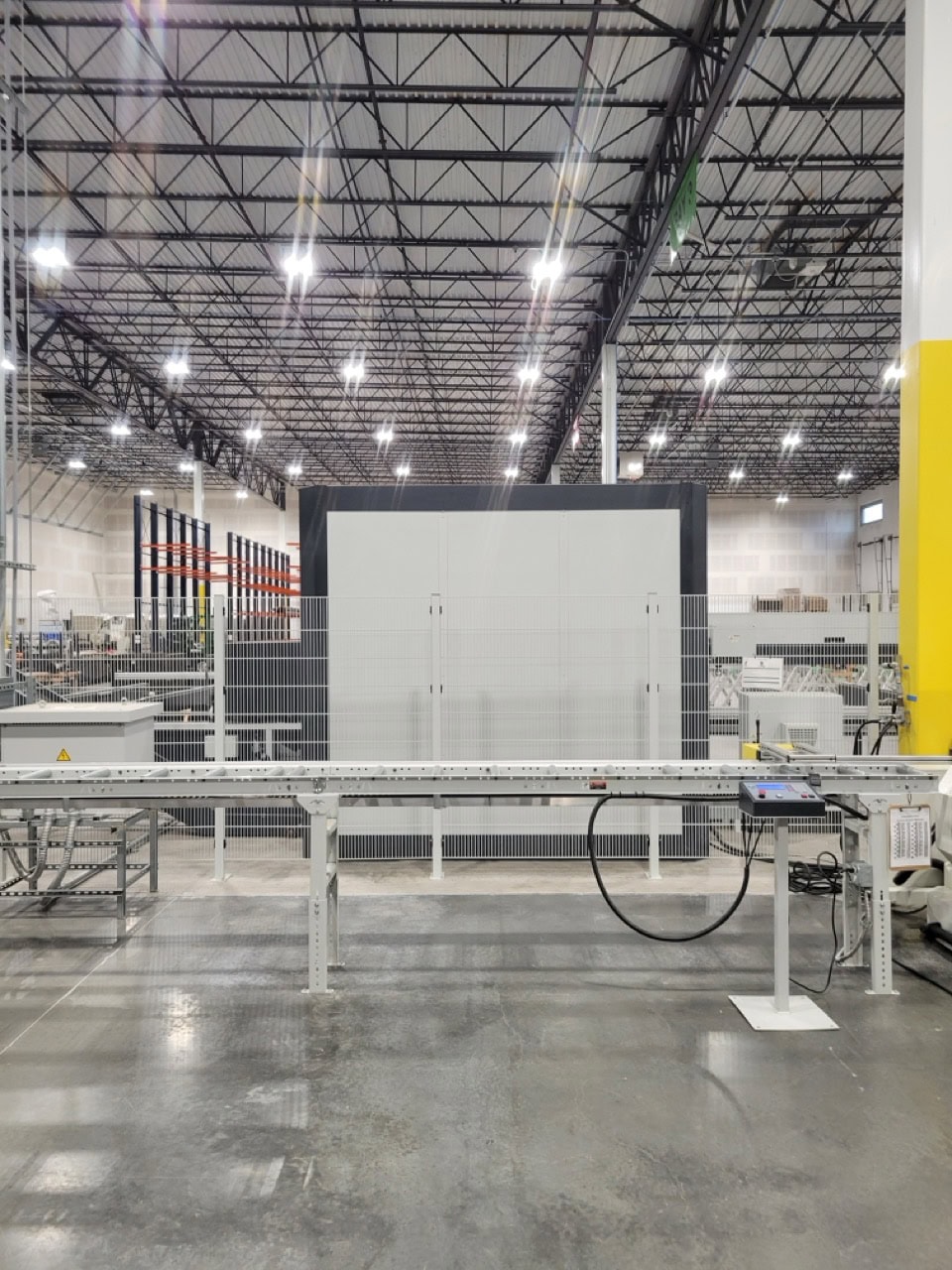

Machined profiles are placed gently onto the unloading magazine
Versions customised to meet specific customer requirements can be designed upon request

Equipped With:
Bar lengths up to 10,500 mm
Expansion options for outfeed of up to 6,000 mm/8,000 mm
“Full bar” outfeed
Outfeed of short parts >150 mm
Cycling short parts (in single bar mode) >50 mm >150 mm
Round tube machining

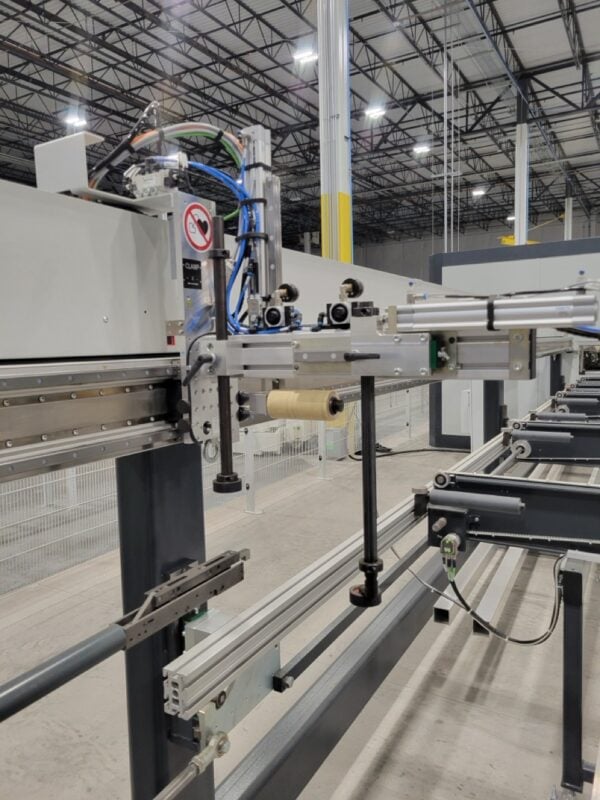

Additional arms in the infeed

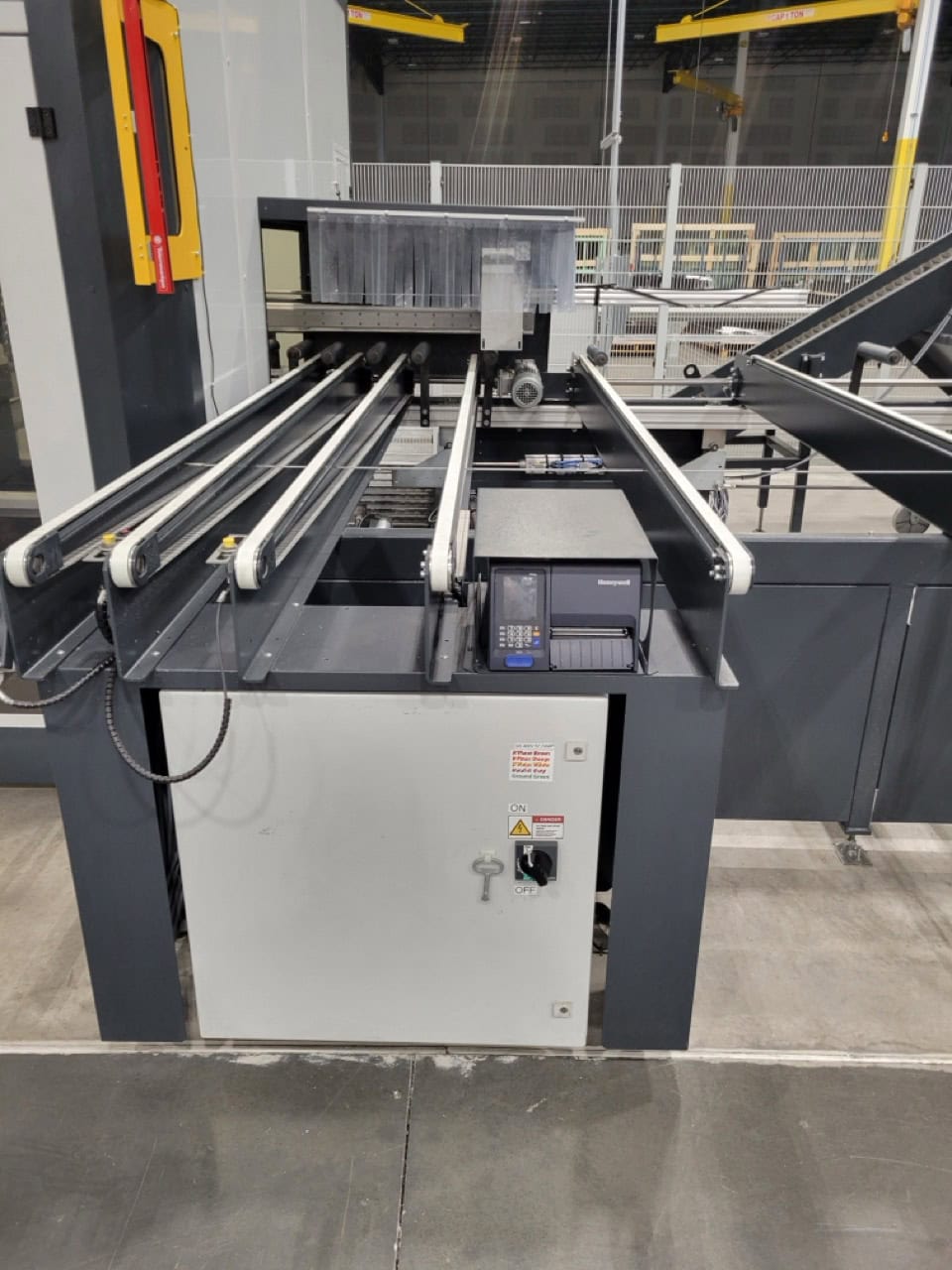

Label printer
Vapour extractor
Air conditioner, control cabinet for ambient temperature <35 °C
Tools
Saw blades

Additional specs available upon request!
