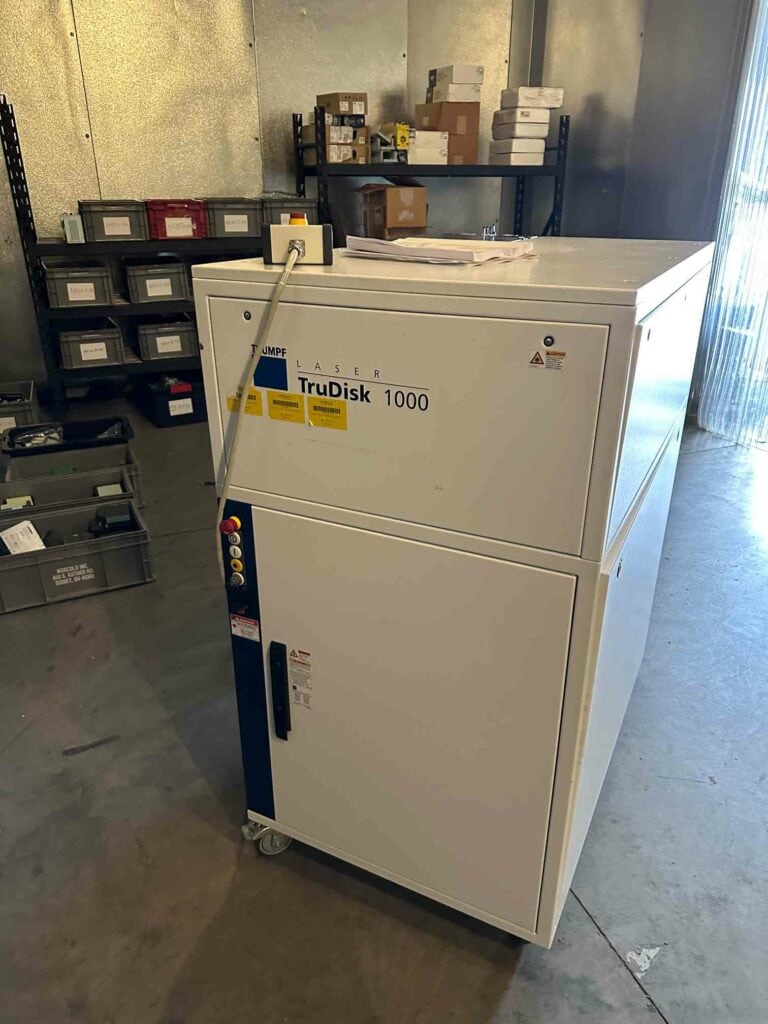

Trumpf TruDisk 1000 (FD24) Solid-State Laser, 1000 W, 2015

Trumpf TruDisk 1000 (FD24) Solid-State Laser, 1000 W, 2015
– Designed for the welding, cutting, and surface processing of metals
– Laser power on the workpiece: 1000 W
– Typical power constancy at rated power over 8 hours at constant ambient temperature: +/- 0.5%
– Maximum power constancy at rated power over 8 hours at constant ambient temperature: +/- 1%
– Continuously adjustable power range: 60 W – 1000 W with active power regulation
– Beam quality at the input coupling in the LLK: 2 mm-mrad
– Newmerical aperature on the output coupling after LLK: 0.1
– Wavelength: 1030 nm
– Minimum laser light cable diameter: 50 μm
