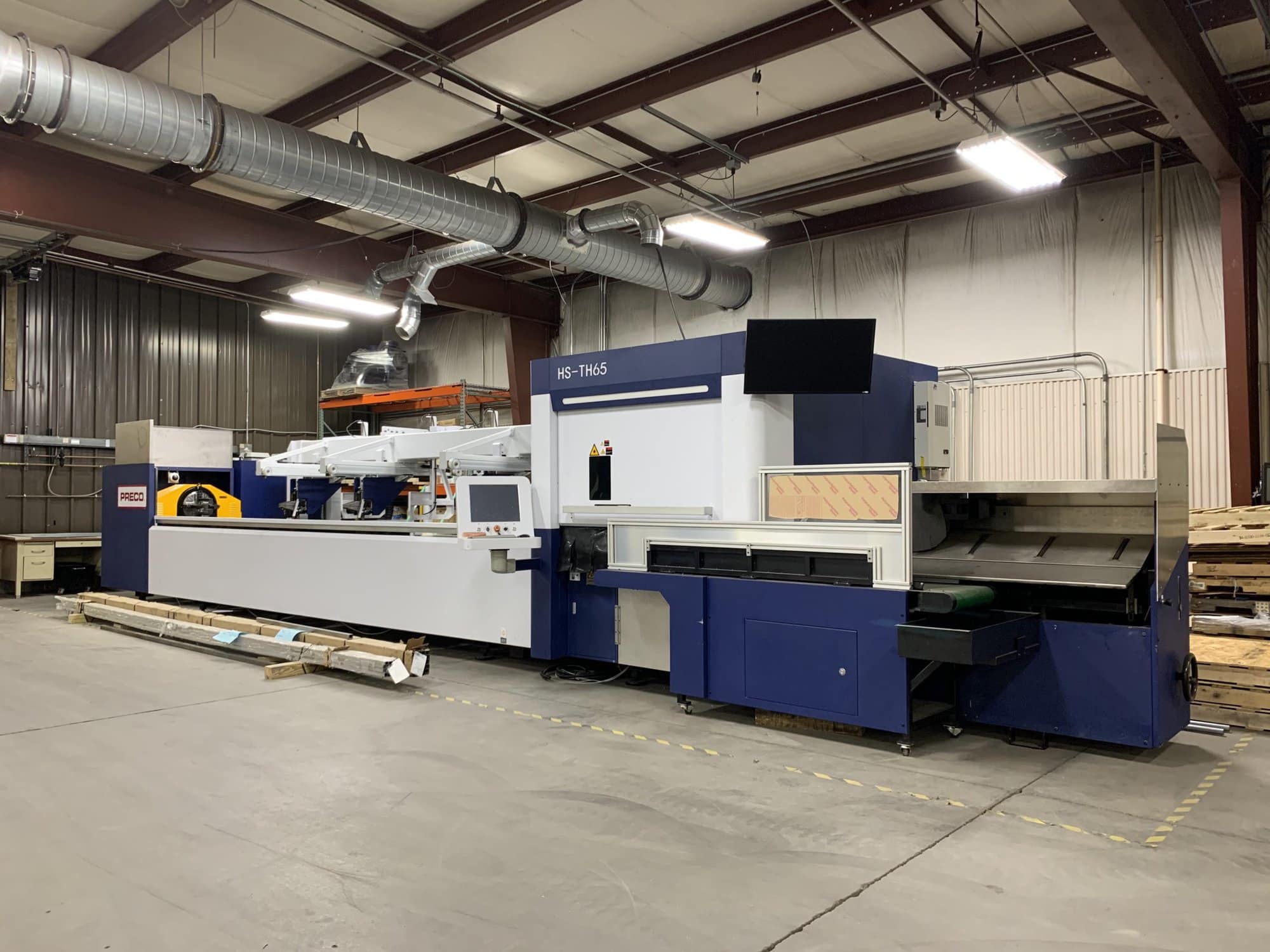

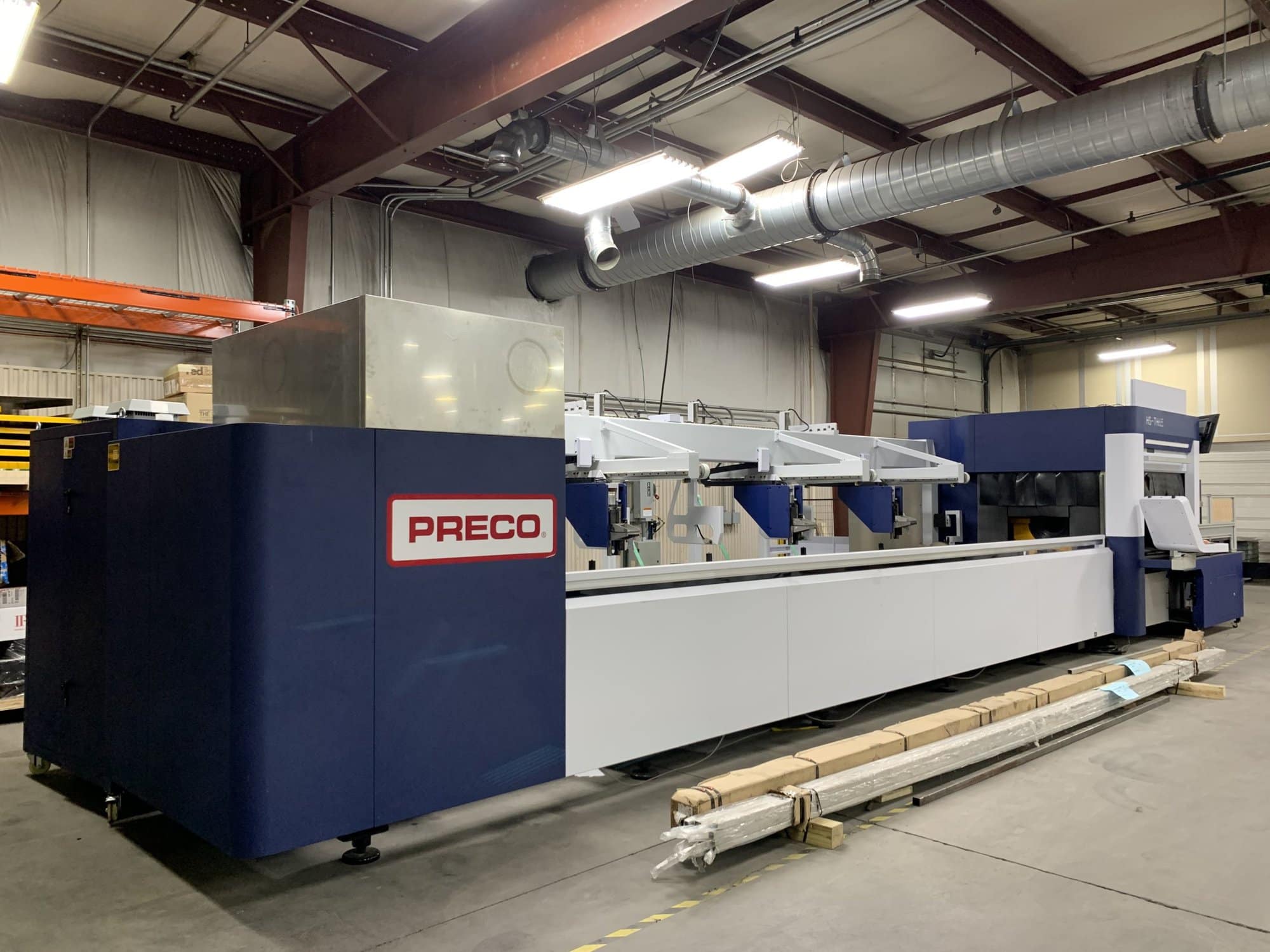

1000 Watt HSG TH65 CNC Fiber Tube Laser, 2018 โ 21.3โฒ Material Length, Demo Unit, Auto Feed
$159,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Laser Power: 1 kW IPG Fiber
Cutting Head: Precitec ProCutter
Safety Enclosure: Class 1
Wall Thickness Range: 0.019 โ 0.394โณ
Max. Movement Speed: 394โ/min
X/Y Positioning Accuracy: ยฑ0.0012โณ
X/Y Repeatable Accuracy: ยฑ0.0012โณ
Max. Tube Feed Speed: 328โ/min
Tube And Pipe Diameter: Round: 0.5 โ 10โณ, Square: 0.5 โ 7โณ
Max. Single Tube Weight (Manually Loaded):
440 lbs
Max. Single Tube Weight (Automatically Loaded): 286 lbs
Max. Raw Material Length: 21.3โฒ
Max Bundle Weight: 6,000 lbs.
Max. Acceleration: 1.2 G
Controls: Omron / Schneider
Power Supply: 480 V / 3PH / 60 Hz
Software: SigmaNest
Machine Weight: 26,455 lbs
Machine Dimensions: L: 39โฒ x W: 11.5โฒ x H: 9โฒ
Materials
Stainless Steel (N2): 0.236โณ (6 mm) 0.315โณ (8 mm)
Carbon Steel (O2) 0.394โณ (10 mm) 0.394โณ (10 mm)
Aluminum (Al) 0.236โณ (6 mm) 0.315โณ (8 mm)
