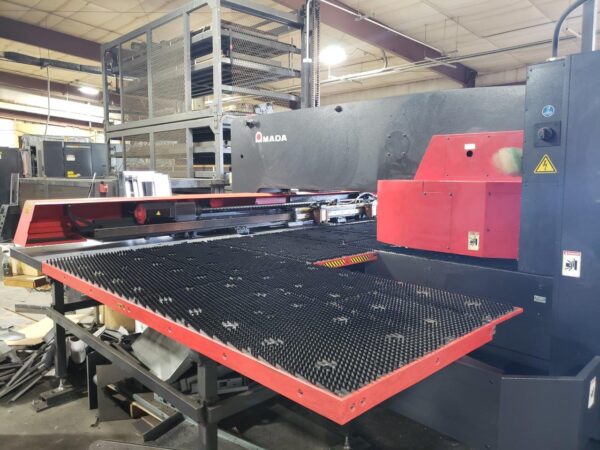

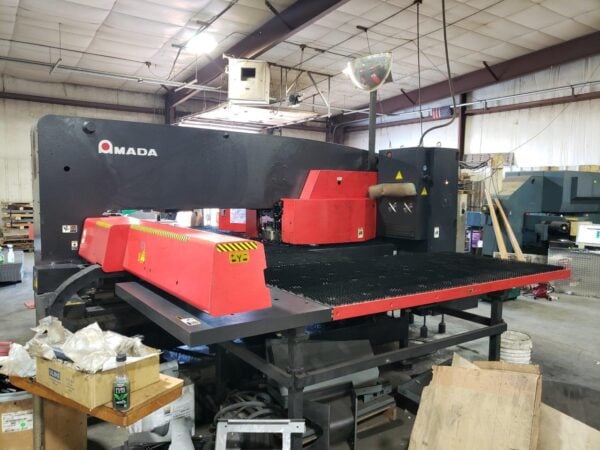

22 Ton Amada AE2510NT CNC Turret Punch, 2011- Low Hours, Tooling Included

$139,500.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Capacity: 22 US Ton
Press Drive System: Single Motor AC Servo Drive
Maximum Sheet Size (w/o repo): 50โ€ณx98โ€ณ (50โ€ณx196โ€ณ with repo)
Throat Depth: 52โ€ณ
Maximum Sheet Thickness: 1/4โ€ณ
Turret Style: Thick
Turret Stations: 51 with (4) A/I
Turret Rotation Speed: 30 RPM
Auto-Index Rotation Speed: 60 RPM
Maximum Feed Rate
X-Axis: 3,150 IPM
Y-Axis: 2,362 IPM
Maximum Hit Rate: 480 HPM
Weight: 28,660#

Equipped With:
Amada NT Control
[51] Stations w/ [4] Auto-Index
Brush Table
Low Hours
Tooling Included
