33 Ton Amada VIPROS 358 King II CNC Turret Punch, 1999 โ Load/Unload, Chiller, Tool Sharpener
$15,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage Capacity: 33 Tons
Maximum Sheet Size: 60โณ (Y) x 157.50โณ (X) with repositioning
Maximum Axis Travel: 60โณ (Y) x 78.74โณ (X)
Max. Linear Table Speed: 3150โณ per min.
Punching Accuracy: +/-0.004โณ Hole to Hole
Maximum Sheet Thickness: 0.125โณ
Maximum Material Weight: 132 lb.
Press Stroke: 1.575โณ
Maximum Hole Diameter: 4.5โณ
Tool Type: Amada Thick Turret
Turret Rotation Speed: 30 RPM
Turret Capacity: 58 Stations (4 auto-index)
Control Function: X, Y, T & C
Input Method: MDI, Floppy Disk Drive, RS-232
Minimum Command Unit: 0.001โณ (X, Y)
Minimum Travel Unit: 0.001โณ (X, Y)
Control: Fanuc 18 (with PHNC)
Control Function: X, Y, T & C
Input Method: MDI, Floppy Disk Drive, RS-232
Minimum Command Unit: 0.001โณ (X, Y)
Minimum Travel Unit: 0.001โณ (X, Y)
Operating Modes: Automatic, MDI & Manual
Display Modes: Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics
Interlock Displays: Oil Temperature, Door Open
Equipped With:
โ Fanuc 18P CNC Control

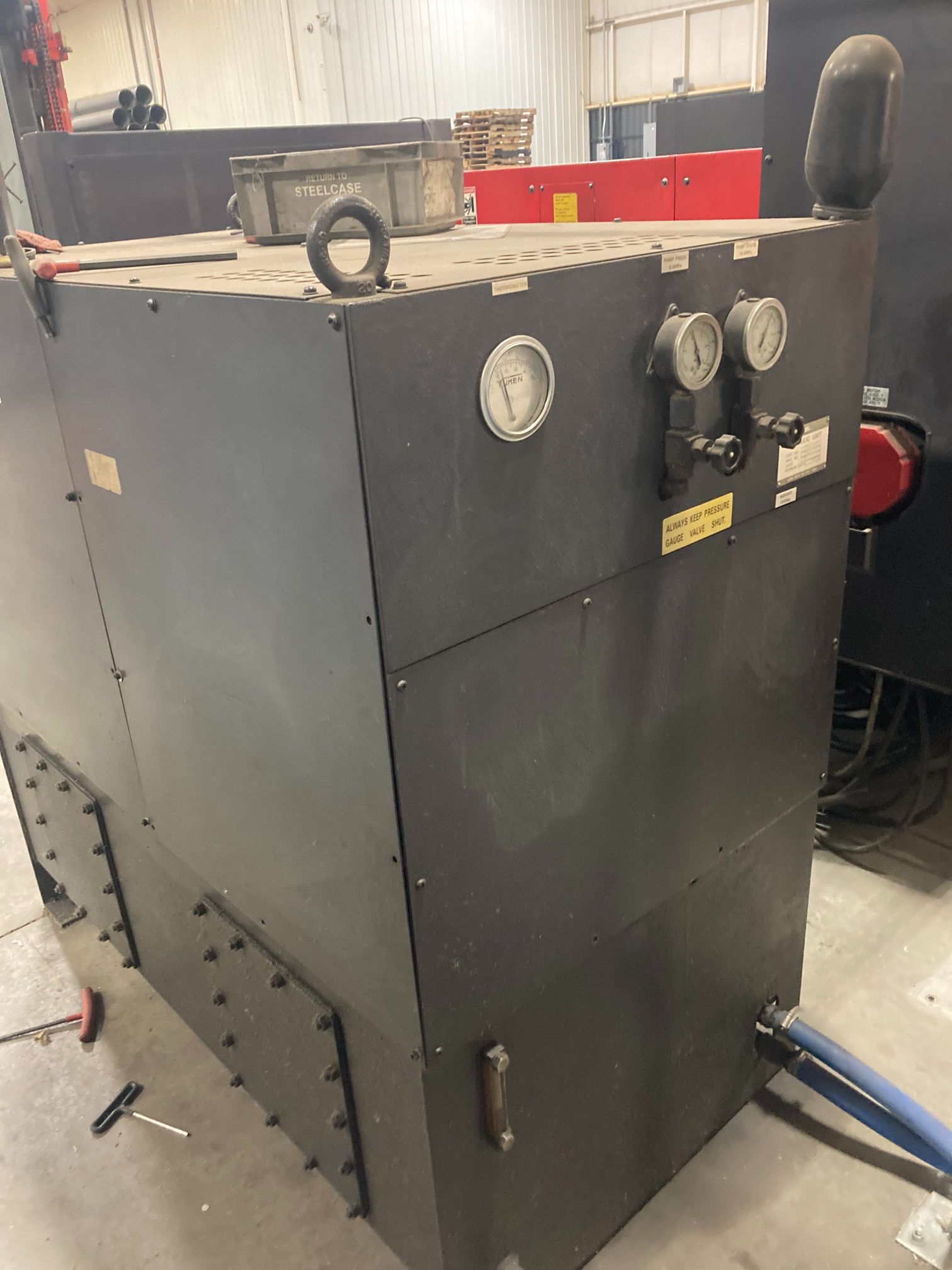

โ Dimplex Thermal Solutions Chiller
โ Amada MP1225NJ Loader/Unloader
โ Togu Automatic Tool Shapener โ may need new stone.
