33โณ x 120โณ Binns & Berry Brothers Trident L-850 Engine Lathe, 1983 โ OPEN TO OFFERS, 2-Axis DRO, Rapid Traverse, Tooling
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swings:
-Max. Swing Over Bed: 33.4โณ
-Max. Swing Over Carriage: 27.5โณ
-Distance Between Centers: 120โณ
Tailstock Specifications:
-Tailstock Travel: 11โณ
-Tailstock Spindle Diameter: 6โณ
-Tailstock Spindle Taper: #6MT
Spindle Specifications:
-Speed Range (24): 4 โ 1250 RPM
-Hole Thru Spindle: 10.5โณ
-Spindle Nose: A1-20
Threading Specs:
-Threading Leads: .0014 โ .08 IPR
-Standard (90): 1/32 โ 112 TPI
-Metric (80): .5 โ 112 MM
-Inch, Metric, Modular, DP Threading Modes
Equipped With:
-2-Axis DRO
-Induction Hardened Ways
-Rapid Traverse
-Central Way Lube
-Coolant System
-Rigid Bed Design
Tooling:

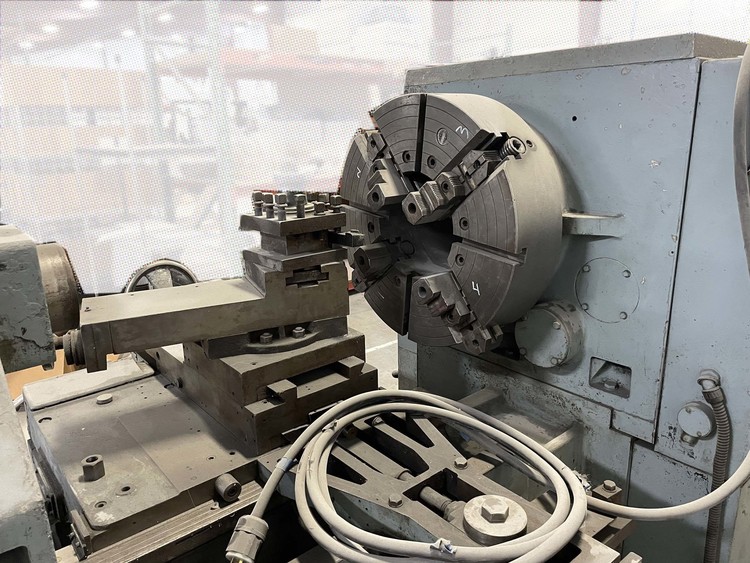

-24โณ, 4-Jaw Chuck
-4-Position Tool Post
-Taper Attachment
-18โณ, 5-Point Steady Rest
Electrics: 240-480, 3 Phase, 60 Cycle
Main Motor: 30 HP
Overall Equipment Dimensions (estimate): 240โณ x 60โณ x 72โณ
Overall Equipment Weight (approx.): 22,000 lbs.
