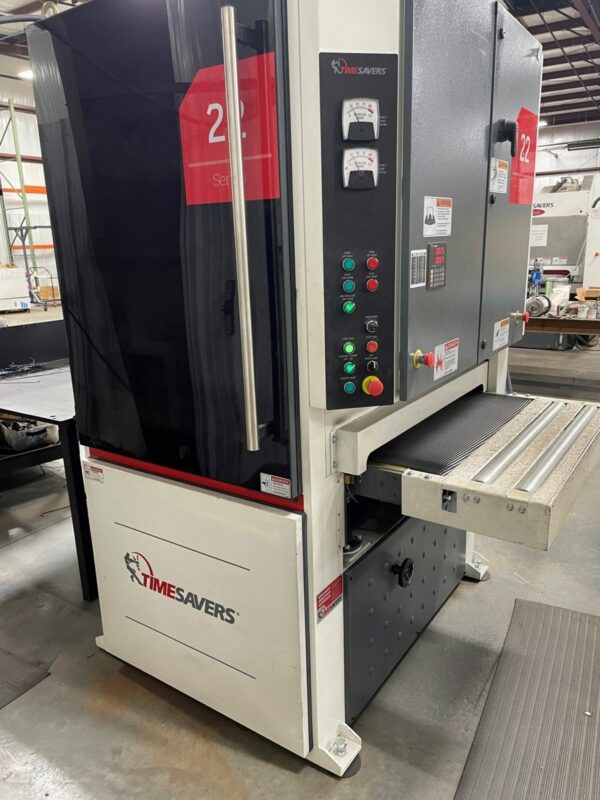

37″ Timesavers 22 Series Edgemaster Deburring Machine, 2018- Double Head, Dust collector
$49,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Abrasive belt size: 37” x 75”
Maximum width stock: 36”
Minimum part length: 9”
Infeed loading area: 14”
Machine opening: 0-5”
Contact drum: 6” diameter
Brush: 8” diameter
Feed speed: 15-45 FPM A/C
Voltage/Phase/Frequency: 230/3/60
Approximate full load amps @ 230 volt: 102
Motor: 20 HP, 15 HP TEFC
Passline height: 33” – 38” variable
CFM exhaust requirements: 2,000 CFM (5” static pressure)
Compressed air usage: 2 CFM @ 90 psi
Approximate shipping weight: 4,440 lbs.
6” Diameter Contact Drum: (1st head position)
Equipped With
6” Diameter Contact Drum: (1st head position
Scotchbrite Brush Head: (2nd head position)
Main Drive Motor
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brake
Centralized Control Panel
Dial Indicator on Adjustable Drum Head
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Control Components
Dust Collector
