4000 Watt Mitsubishi ML3015LVP CO2 Laser, 2008 – 5′ x 10′ Table, Shuttle Table, Chiller, Available Immediately

Stroke – X, Y, Z: 122.05″ x 61.02″ x 3.54″
Max. Work piece size: 120.08″ x 60.04″
Processing access: Auto Up/down style front door
Max. processing feed rate: 1180″
Max. Workpiece weight: 2050 lbs
Table pass height: 33.5″
Machine structure: Fixed table / flying optic
Rapid travel speed: (X, Y) 3345 / 4730 IPM
Min. command input: .001mm / .0001″
Drive motor type: Intelligent AC servo
Machine unit dimensions: (W x H x D) 420.3″ x 90.6″ x 183.0″
Total system weight: 27,340 lbs

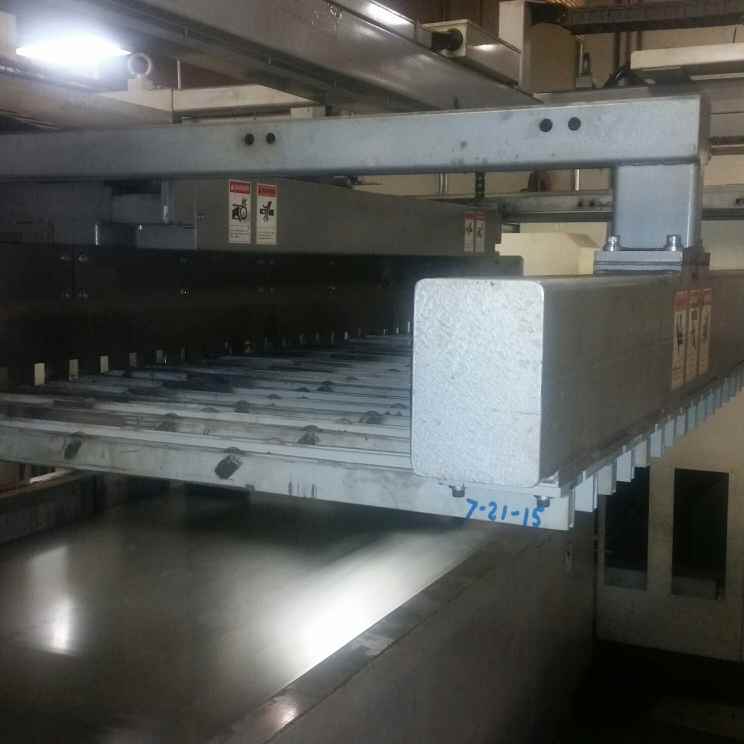

Pallet Changer-
Pallet change time: Approx. 25 Sec
Pallet Changer Weight: 5,500 lbs
Drive Mechanism Chain

Resonator:
Excitation method 3-axis cross flow, SD
Control method Power feedback
Power stability plus/minus 1 percent
Beam mode Low-order
Beam outer diameter 0.91″
Beam Divergence Apprx. 3.0 or less-total angle
Wave length 10.6
Frequency setting range 10~3000 Hz
Duty range 0~100 percent adjustable
Resonator unit Dimensions (W x H x D) ( 98.4″ x 71.3″ x 31.5″
Resonator unit weight 4,850 lbs
Output Power (Continuous Wave) 4000 W (rated)

Laser Gas: Composition CO2:CO:N2:He 8:4:60:28
Consumption amount 3 Liter/Hour
Gas sealing time (during rated conti. oscillation) 24 Hours

Control Unit:
Floppy disk 1.44MB IBM compatible
Hard disk drive capacity 2.0 GB
Graphic display (TFT color LCD Touch Screen) 10.4″
Mounting Integrated w/ proces. machine
CPU / type 64 bit / PC

Machine Layout:
Installation dimensions (W x D) 460.2″ x 224.2″
Floor space requirement 717 sq.ft.

Equipped With:
Mitsubishi PHX Cutting Head
Beam Optimizer
High-Speed Power Sensor
ATFR Mirror
Closed Loop Air Cooled Chiller
High-Speed Capacitance Height Sensor
Programmable Gas Assist w/ High Pressure Bypass System
Safety Covers
Automatic Heavy-Duty Pallet Changer
Ethernet LAN Interface
Multi-function Visible Alignment Laser
Pallet work-piece capacity 5′ x 10′ x 1.0″ (2050 lbs./pallet)
Operation manuals included.
Approx 33,350 Beam on cutting hours
