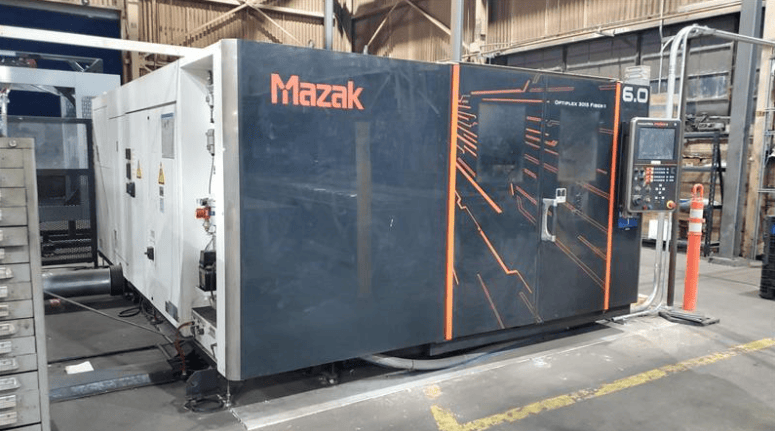

6,000 Watt Mazak Optiplex 3015 Fiber Laser, 2016
$299,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Wattage: 6000 Watts
Maximum workpiece dimensions: 60.030โ x 120.078โ
Maximum workpiece weight: 2,050 lbs.
Machine travels
X-axis: 122.5โ
Y-axis: 62.20โ
Z-axis: 4.33โ
Work table height: 35.43โ
Maximum material thickness
Mild steel: 1.00โ
Stainless steel: 1.00โ
Aluminum: 0.750โ
Motion drive system design
X, Y Axis: Rack and Pinion drive
Z Axis: Ball screw drive
Number of control axes: 3
Rapid travel speed
X, Y Axis: 4,724 Inches per minute
Positioning accuracy:
X,Y Axis: 0.0002 inch/19.68 inch
Z Axis: 0.0004 inch/3.94 inch
Repeatable Accuracy
X, Y Axis: 0.0012โ
Maximum processing feedrate
X, Y axis: 2,362 IPM
Machine On Hours: 32,000
Equipped With:
IPG Resonator
Mazatrol Preview 3 CNC Control
Auto Nozzle Changer
Dust Collector
