Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers
Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 2
Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 3
  1. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers
  2. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 2
  3. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 3
RG
2014413379

Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers

$7,900.00

Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers
Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 2
Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 3
  1. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers
  2. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 2
  3. Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fabrication
Make: Daito
Model: DNE 700
Year: 1994
Machine Location: Idaho
Stock #: 413379

Motor: AC200V
Drill: 3.7kw x 3, Coolant Pump 0.06kw x 1, Hydraulic Pump 1.5kw x1, Left Assembly 0.4kw x1, Lubricant Pump 0.01kw x1
Electrics: AC100V: DC12V, 24V
Dimensions: W-121.25″ x D- 87.8″ x H- 86.5″
Shipping Weight: 8708 lbs.

H-Beam Capacity: Max 27×12
Max Work Thickness: Flange 2”, Web 2-1/4”
Hole Diameter: Upper .5″ – 1-5/16”, Left/Right .5″ – 1”
Spindle Socket: Upper: 4MT, Left/Right – 3MT
Minimum Feed Length: 59”
Maximum Weight: 6400 lbs.

Equipped With:
Powered Coolant Pump and Lubrication Pump,
3-spindle Manual Style CNC Structural Drill,
No Direct Download Capability

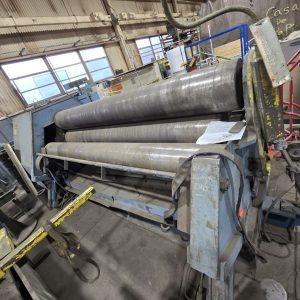

“Feed Master” Power Rollers
Rush 250A Drill Sharpener (available at additional cost)

Included Conex

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
