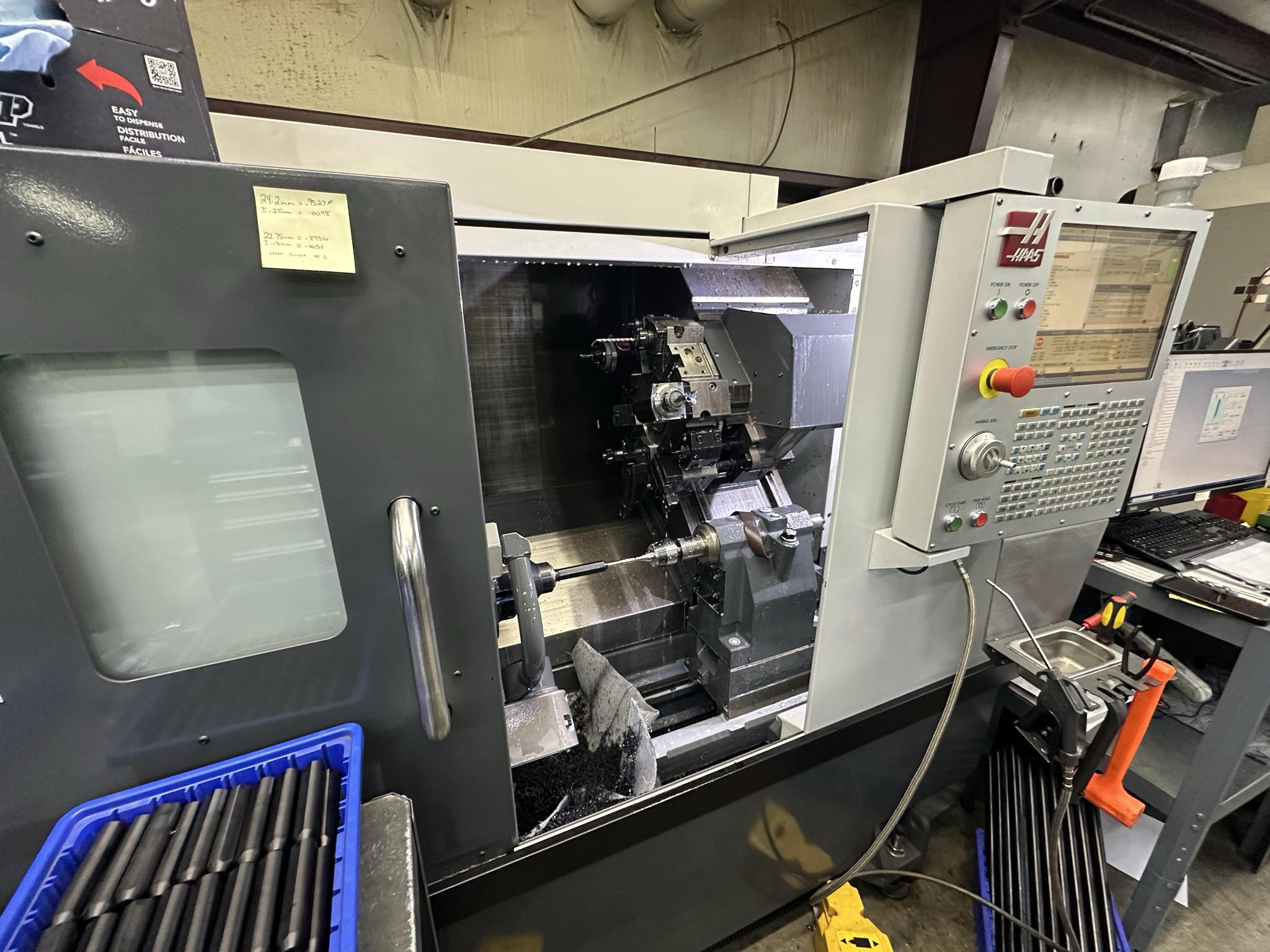

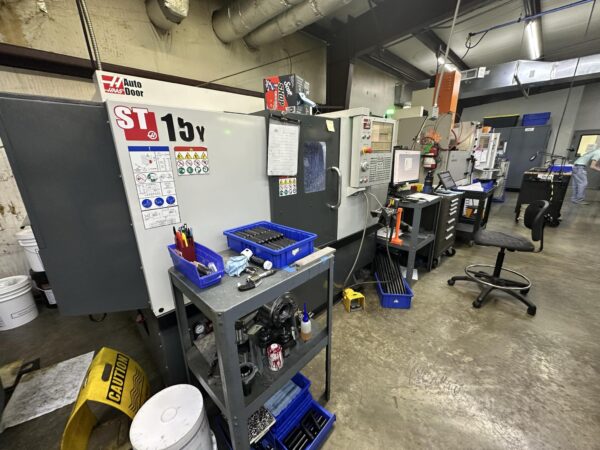

Haas ST-15Y CNC Lathe, 2019 – Tailstock, Auto Door, Live Tooling

Chuck Size: 8″
Bar Capacity: 2.5″
Max Swing: 16.5″
Max Turning Diameter: 12″
Distance Between Centers: 16″
X Axis Travel: 7.88″
Z Axis Travel: 16″
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Turret: 12 Station

C Axis:
Max Rating: 5.0 HP
Max Speed: 650 RPM
Positioning (±): 0.01 °

Equipped With:

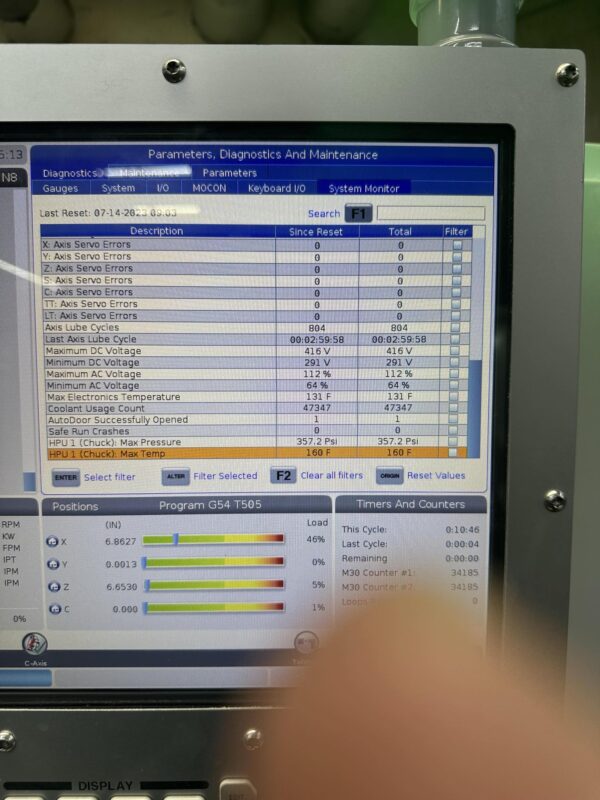

Haas CNC Control
Tool Setter
Tailstock
Auto Door
Chip Conveyor
Wifi
Live Tooling
C Axis
Y Axis
