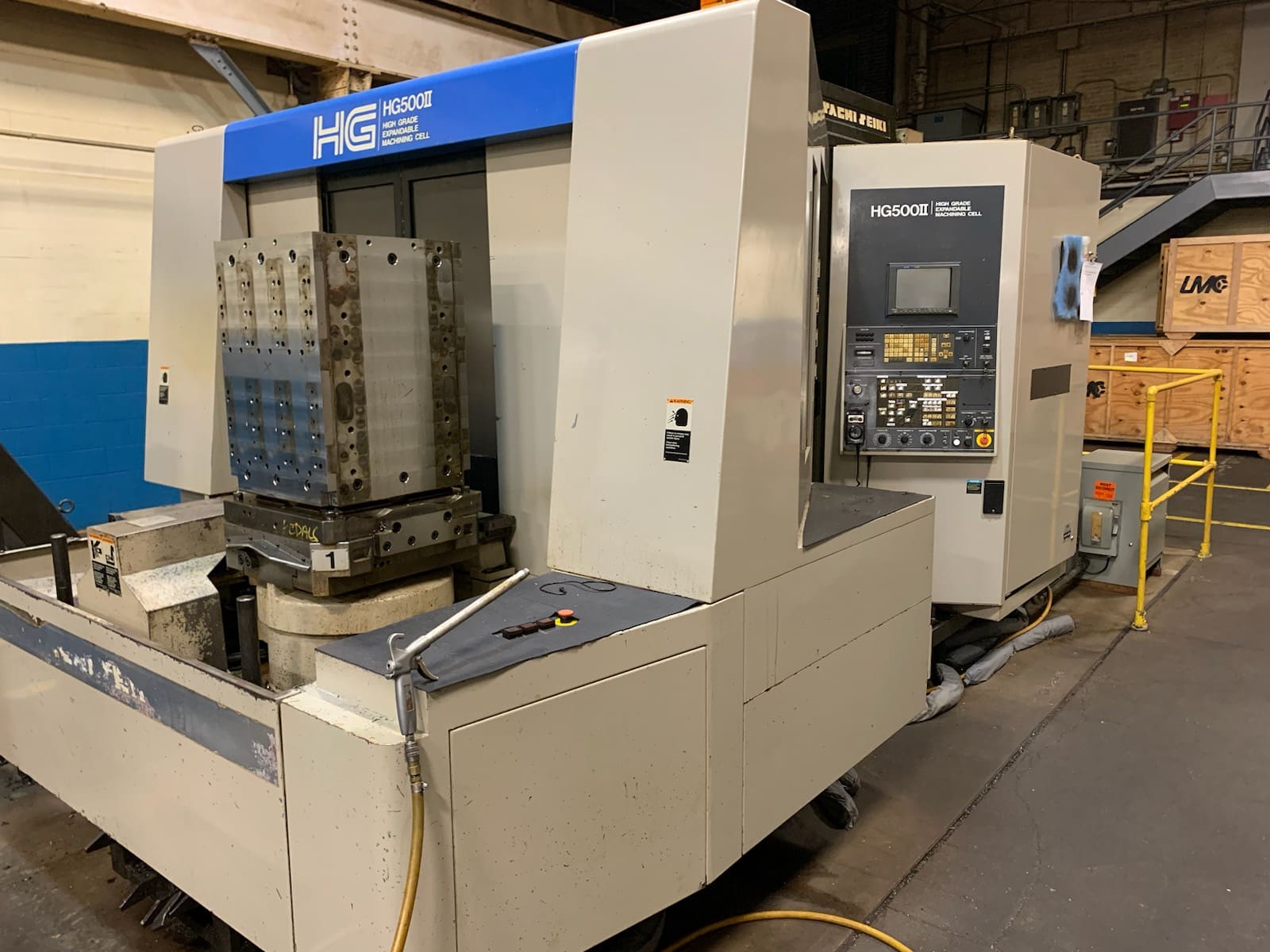

Hitachi Seiki HG500II 500mm HMC, 1997 โ Cat 50, 6K RPM
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pallet Size: 19.7โณ x 19.7โณ (500mm)
Max Load on Pallet: 2,200 Lbs
Min Index Angle: 1 Degree
Max Workpiece Height Through APC Guard: 35.4โณ
Table Movement X-Axis: 30โณ
Spindle Head in Vertical Movement Y-Axis: 27.6โณ
Column in Cross Travel Z-Axis: 25.6โณ
Distance Between Spindle Center and Table Top: 0~27.6โณ
Distance Between Spindle Nose and Table Center: 5.3~30.9โณ
Distance From Floor to Table Top: 43โณ
Spindle Speed: 20-6,000 RPM
Steps: 2
Spindle Taper: NT#50
X, Y, and Z Axis: 944 โ/Min
Cutting Feed: 0.01~400โณ/Min
Jog Feed: 0~200โณ/ Min
Tool Shank: CAT 50
Pull Stud: 90 Deg.
Tool Storage Capacity: 90 Stations
Max Tool Diameter With Adjacent Tool: 4.3โณ
Without Adjacent Tool: 9.65โณ
Max Tool Length: 15.7โ
Max Tool Weight: 44 Lbs
Tool Selection: Fixed Address (Random Bi-Direction)
Spindle 50%ED/Cont: 25/20 HP
Hydraulic: 3 HP
Lubrication: 1/50 HP
Flood Coolant: 1/2 HP
Table Index: 1.35 HP
APC: Parallel-Shuttle Type
