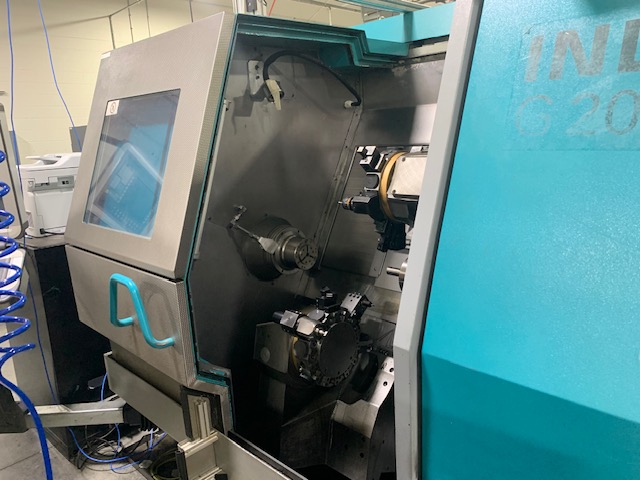

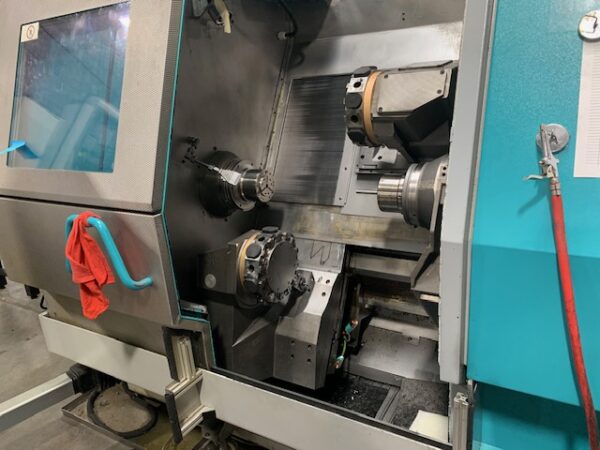

Index G200 Twin Spindle CNC Lathe, 2006 – Dual Turret, Siemens 840D Control

Name: Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control
SKU: 17023978529

$19,900.00

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 2

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 3

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 4

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 5

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 6

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 7

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 8

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 9

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 10

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 11

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 12

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 13

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 14

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 15

Index G200 Twin Spindle CNC Lathe, 2006 - Dual Turret, Siemens 840D Control - Image 16

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Turning Length: 25.98″
Bar Capacity: 2.56″
Chuck Diameter: 6.50″
Speed Max.: 6,000 Rpm
Power: 20 Kw / 24 Kw (100% / 40%)
Torque: 125 Nm / 170 Nm (100% / 40%)
C Axis Resolution: 0.001 Degree
Slide Travel X: 27.95″ (Rapid Traverse: 60 M/Min, Feed Force: 6,000 N)
Tailstock Pressing Force Max.: 5,500 N
Slide Travel Z: 33.27″
Turret Upper/Lower Speed Max.: 7,200 Rpm
Turret Power Max.: 9 Kw
Turret Torque Max.: 16 Nm
Milling Spindle Tooling System: Hsk-A40
Milling Spindle Speed Max.: 7,200 Rpm
Milling Spindle Torque (25%): 52 Nm
Milling Spindle Power (25%): 22 Kw

Turret 1:
Slide Travel X: 9.06″ (Rapid Traverse: 30 M/Min, Feed Force: 6,000 N)
Slide Travel Y: +/- 2.56″ (Rapid Traverse: 15 M/Min, Feed Force: 10,000 N)
Slide Travel Z: 33.27″ (Rapid Traverse: 50 M/Min, Feed Force: 6,000 N)

Turret 2:
Slide Travel X: 5.51″ (Rapid Traverse: 30 M/Min, Feed Force: 6,000 N)
Slide Travel Y: +/- 1.77″ (Rapid Traverse: 15 M/Min, Feed Force: 10,000 N)
Slide Travel Z: 31.89″ (Rapid Traverse: 50 M/Min, Feed Force: 6,000 N)

Dimensions: 210.83″ X 88.00″ X 94.49″

Equipped With:

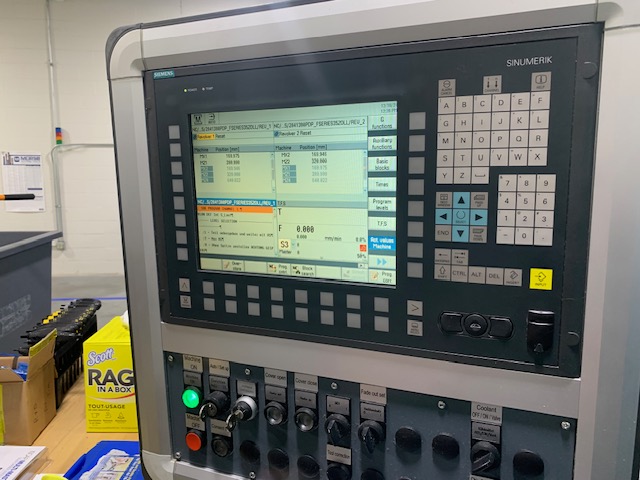

Siemens S840D CNC Control
Tailstock

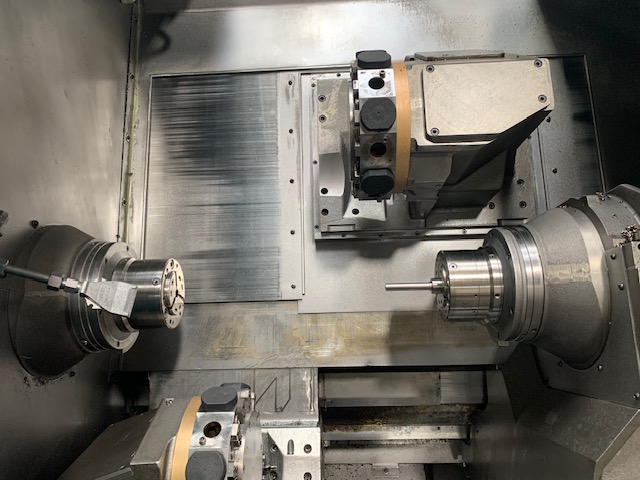

Dual Turrets
Sub Spindle

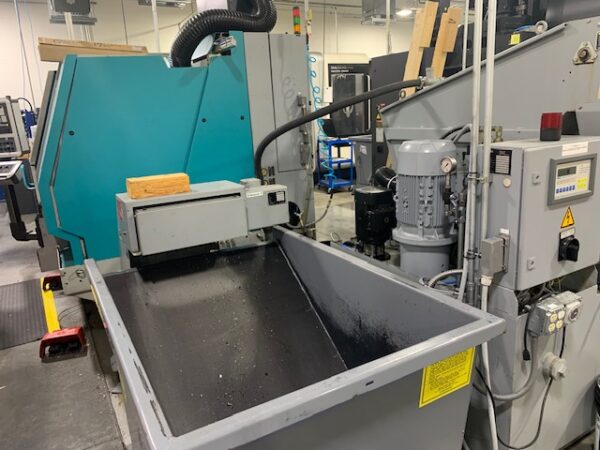

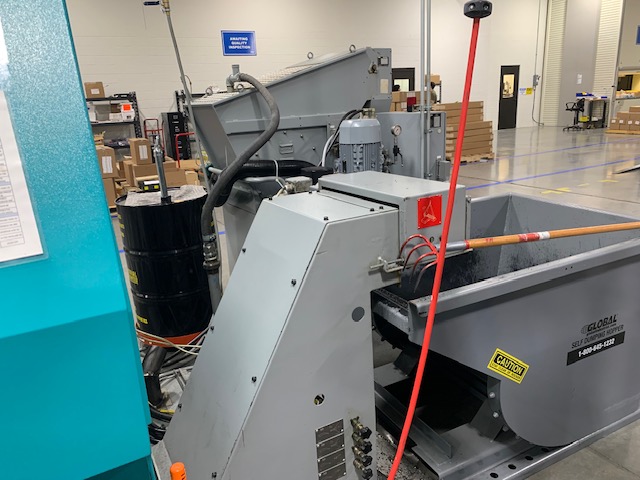

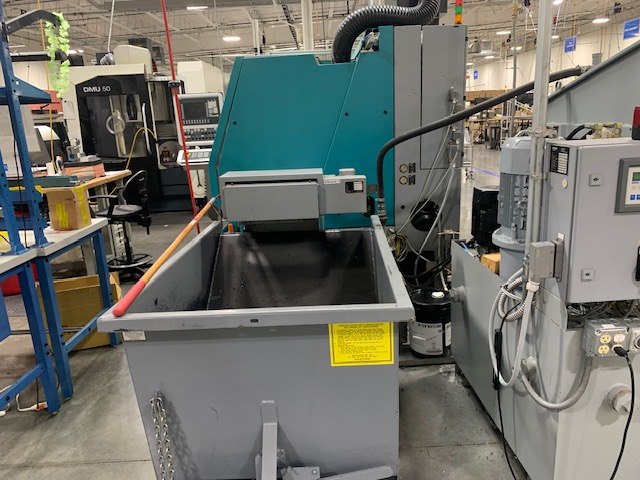

Chip Conveyor
