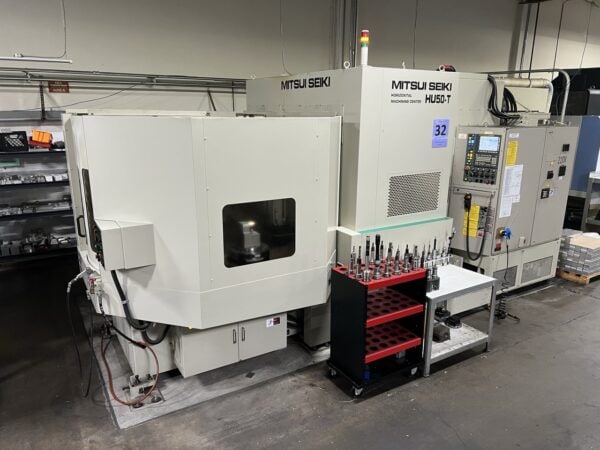

Mitsui Seiki HU50-T 5-Axis HMC, 2016 โ 240 Tool ATC, Chip Conveyor, Fanuc 30iB Control
$179,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pallet Dimensions: 360 mm
Dividing Angle of Swivel Table: 0.001 degrees
Pallet Height: 1,480 mm
Max. Load: 662 lbs
X-Axis: 770 mm
Y-Axis: 700 mm
Z-Axis: 650 mm
B-Axis: -90 โ 180 degrees
C-Axis: 360 degrees
Distance Between Spindle and Table: 200 mm โ 850 mm
X, Y, & Z Axis Feed Speed: 36,000 mm/min
B & C Axis Feed Speed: 30 RPM
Spindle Speed: 50-12,000 RPM
Spindle End Taper: BT40
Spindle Motor: 40 HP
Max. Length of Tool: 320 mm
Max. Dimension of Tool: 150 mm
Max. Tool Weight: 8 kg
Machine Size: 221โณx160โณ
Machine Weight: 30,800 lbs.
Equipped With:
Fanuc 30iB Control
240 Tool ATC
60 Station Pallet Changer
Full 4th & 5th Axis
Under Power
