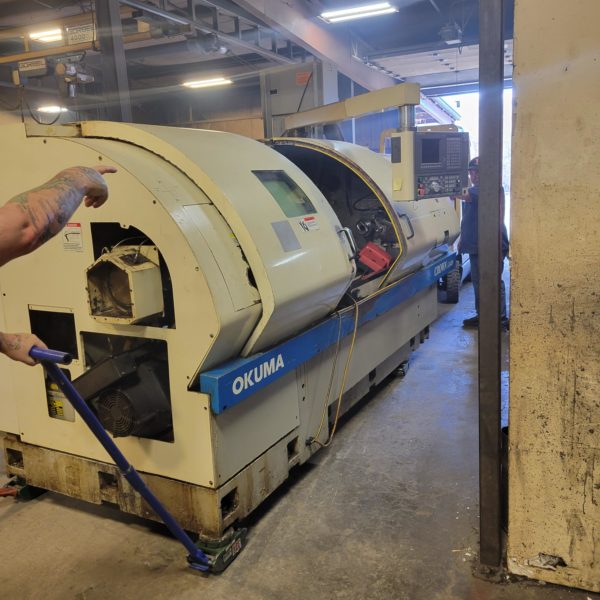

Okuma Crown L1420 CNC Lathe, 2000 – Chip Conveyor Included
$7,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Diameter: 14.17โณ
Max Turning Length: 25.59โณ
Max Bar Capacity: 3.15โณ
Swing Over Slide: 18.9โณ
Swing Over Bed: 28โณ
Distance Between Centers: 26โณ
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Spindle Nose: A2-8
Spindle Bore: 3.54โณ
Spindle Speed: 3500 Rpm
Spindle Motor: 30 Hp
Tailstock Body Travel: 14.5โณ
Tailstock Quill Dia.: 3.94โณ
Tailstock Quill Stroke: 4.72โณ
Tailstock Taper: Mt-5
X Axis Travel: 9.1โณ
Z Axis Travel: 25.59โณ
Rapid Traverse X Axis: 591 Ipm
Rapid Traverse Z Axis: 787 Ipm
Overall Dimensions: 150โณ X 68โณ X 80โณ High with Chip Conveyor
Weight: 13,500 Lbs. Approx.
