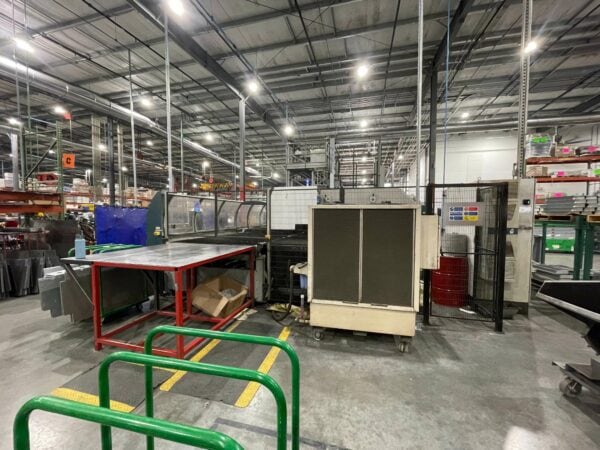

Salvagnini S4Xe.30 Punching & Shearing Machine, 2013 – W/9-Level Material Tower

Maximum dimensions of sheets: 120” x 60”
Minimum dimensions of sheets: 27.56” x 15.75”
Maximum thickness of steel sheet: 0.138”
Maximum thickness of aluminum sheet: 0.197”
Minimum thickness of sheet: 0.020”
Maximum height of pack+pallet at entry: 19.69”
Maximum height of pack per shelf: 5.118”
Minimum height of the pallet at entry only: 1.969”
Maximum load on each shelf: 6614 lb.
Maximum weight of a single sheet: 287 lb.
Maximum weight of the pack at entry: 11023 lb.
Store total height (M9): 220.47”
Max length of incoming sheet: 120”
Max width of incoming sheet: 60”
Min length of incoming sheet: 14.57”
Min width of incoming sheet: 11.81”
Max diagonal of incoming sheet: 134.17”
Max length of outgoing sheet: 120”
Max width of outgoing sheet: 60”
Min length of outgoing sheet: 9.84”
Min width of outgoing sheet: 3.15”
Max thickness of metal sheet with UTS 59.5 ksi: 0.138”
UTS 84.1 ksi: 0.079”
UTS 38.4 ksi: 0.197”
Min thickness of sheets: 0.020”

Includes:

MD1-3015.RCP.M9 9-level material tower 1

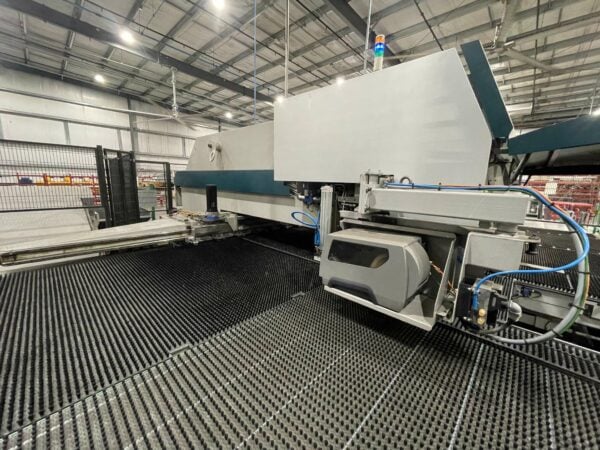

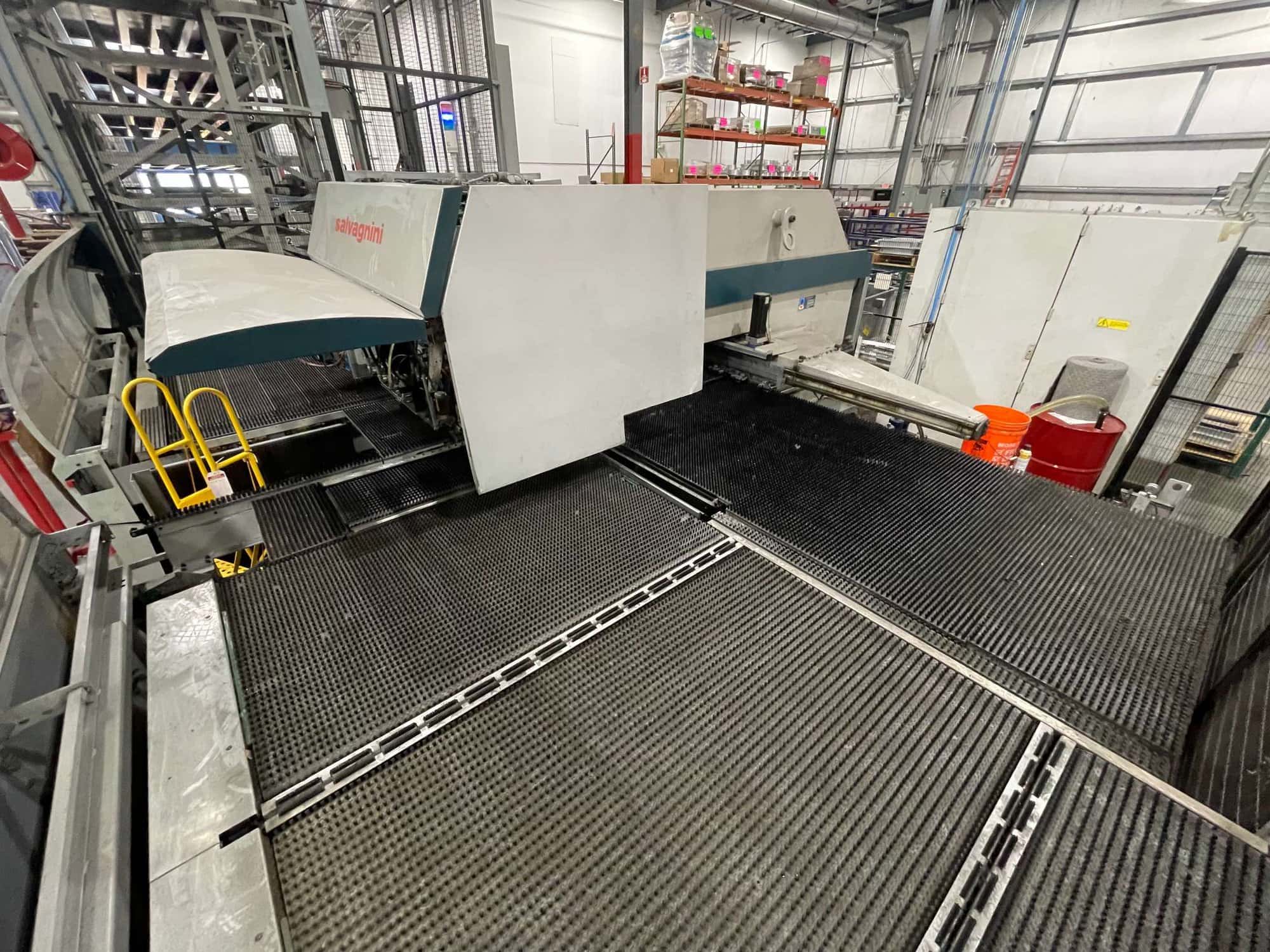

S4Xe.30 Punching machine 1
JOB.CONSOLE.S4 Software – to manage the production 1
HU22E Hydraulic power pack 1
SIMULX Software – simulation 1
SiX CNC control 1
CS5S Right-angle shear 1
H6 Punching head 1
H6 with 11 mm Punching head with increased clearance 1
P2R**** Double indexing punch 3
EI(90)** Internal Forming station – 90×90 1
SSP Scrap conveyor 1
CI Connection to customer device, with automatic shutter 1
SHUTTER DOOR Safety shutter door to customer unloading table 1
RXXE Refrigerated chiller to 1150 ambient conditions

***Brand New Price Today 1.5++ Million, Year Lead Time***
